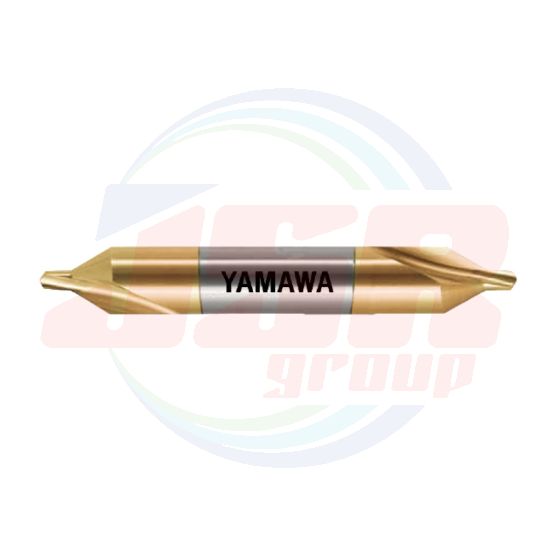

CD-S V(I) | Coating Low Helix A Type 60° Center Hole Drill Former JIS Type 1 | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 784.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
CD-S V(I)
QTY:
0
● The CD-S V(I) is a coated low helix former JIS type 1 center hole drill with excellent wear resistance and welding resistance.
Specification
Cutting Speed depending on Materials
Segment：51
|

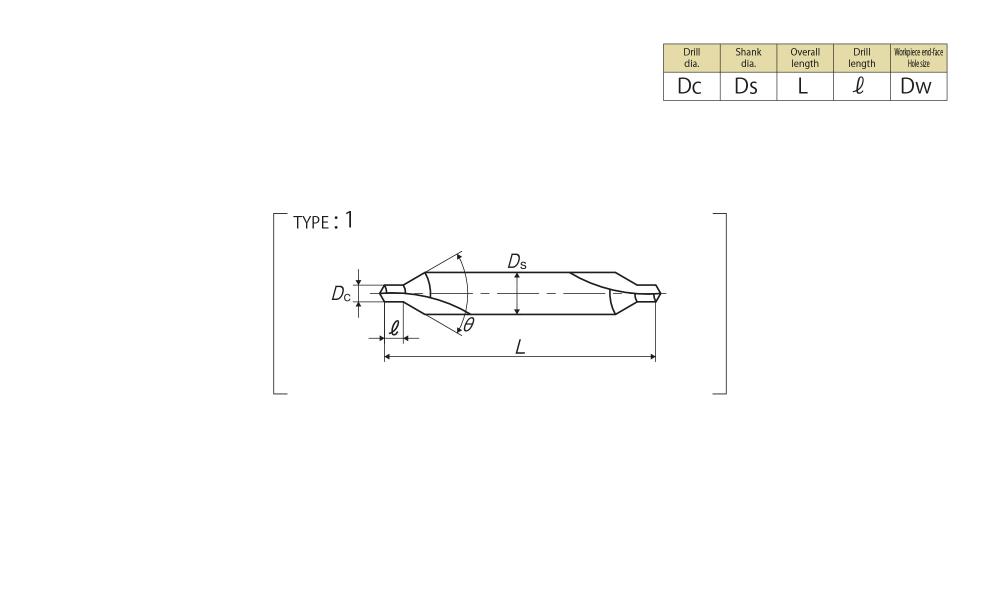

Size Dc × θ ×Ds |
Code |
Dc (mm) |
Ds (mm) |
L (mm) |
ℓ (mm) |
Dw (mm) |
TYPE |
|
2.5 × 60゜ × 8 |
VC12.5 |
2.5 |
8 |
50 |
3.5 |
6.5 |
1 |
|
3 × 60゜ × 10 |
VC13.0 |
3 |
10 |
55 |
4 |
8 |
1 |
|
4 × 60゜ × 12 |
VC14.0 |
4 |
12 |
66 |
5 |
10 |
1 |
|
5 × 60゜ × 14 |
VC15.0 |
5 |
14 |
78 |
6.5 |
12 |
1 |
・Machining conditions are calculated based on the workpiece end-face hole size Dw.
・For details on machining conditions, see TECHNICAL INFORMATION, “27. Table of recommend centering condition.”
| แบรนด์สินค้า | YAMAWA |
|---|
