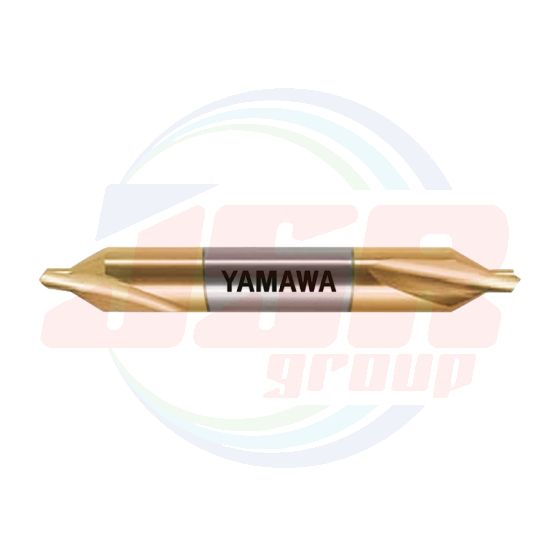

● The CD-S V is a coated type A center hole drill with excellent abrasion resistance and welding resistance.
Specification
Cutting Speed depending on Materials
Segment：51
|

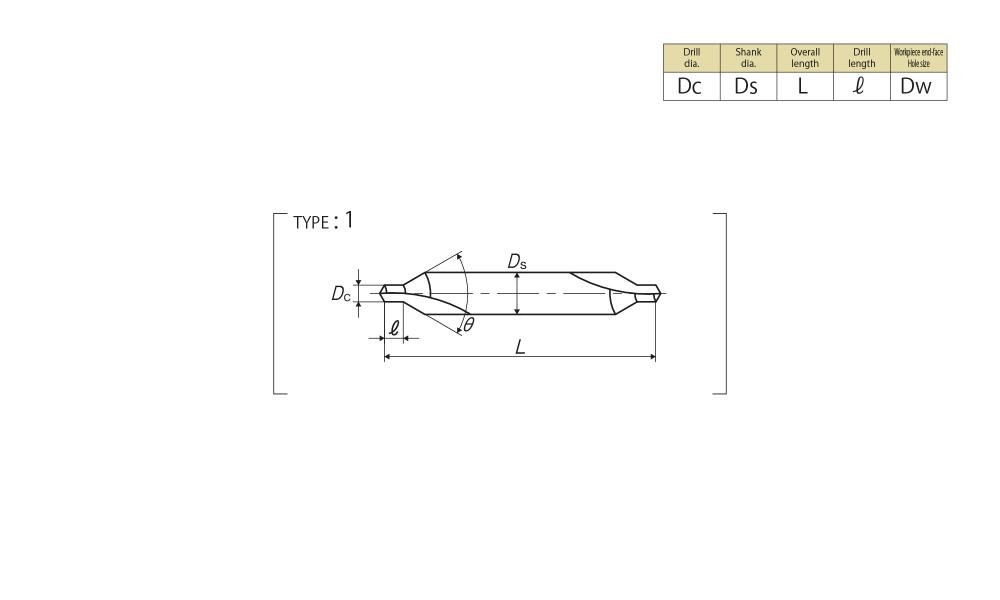

Size Dc × θ ×Ds |
Code |
Dc (mm) |
Ds (mm) |
L (mm) |
ℓ (mm) |
Dw (mm) |
TYPE |
|
1 × 60゜ × 4 |
VCY1.0 |
1 |
4 |
35 |
1 |
2.5 |
1 |
|
1.5 × 60゜ × 5 |
VCY1.5 |
1.5 |
5 |
40 |
1.5 |
4 |
1 |
|
2 × 60゜ × 6 |
VCY2.0 |
2 |
6 |
45 |
2 |
5 |
1 |
|
2.5 × 60゜ × 7.7 |
VCY2.5 |
2.5 |
7.7 |
50 |
2.5 |
6.5 |
1 |
|
3 × 60゜ × 7.7 |
VCY3.0 |
3 |
7.7 |
55 |
3 |
6.5 |
1 |
|
4 × 60゜ × 10 |
VCY4.0 |
4 |
10 |
65 |
4.5 |
8.5 |
1 |
|
5 × 60゜ × 11 |
VCY5.0 |
5 |
11 |
78 |
5.5 |
9 |
1 |
|
6 × 60゜ × 18 |
VCY6.0 |
6 |
18 |
90 |
6.5 |
15 |
1 |
・Machining conditions are calculated based on the workpiece end-face hole size Dw.
・For details on machining conditions, see TECHNICAL INFORMATION, “27. Table of recommend centering condition.”
