CE-Q V | High Helix Center Drills-Type A 90°, Coated | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 565.42
ราคารวม VAT แล้ว
พร้อมส่ง
SKU
CE-Q V
QTY:
0

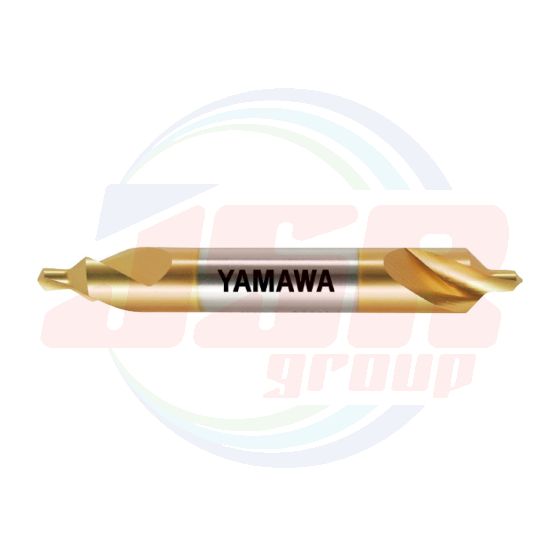

● High helix center drills - Type A center drill for machining 90°center hole. Coated to improve wear resistance and anti-welding.
Specification
Cutting Speed depending on Materials
Segment：51
|

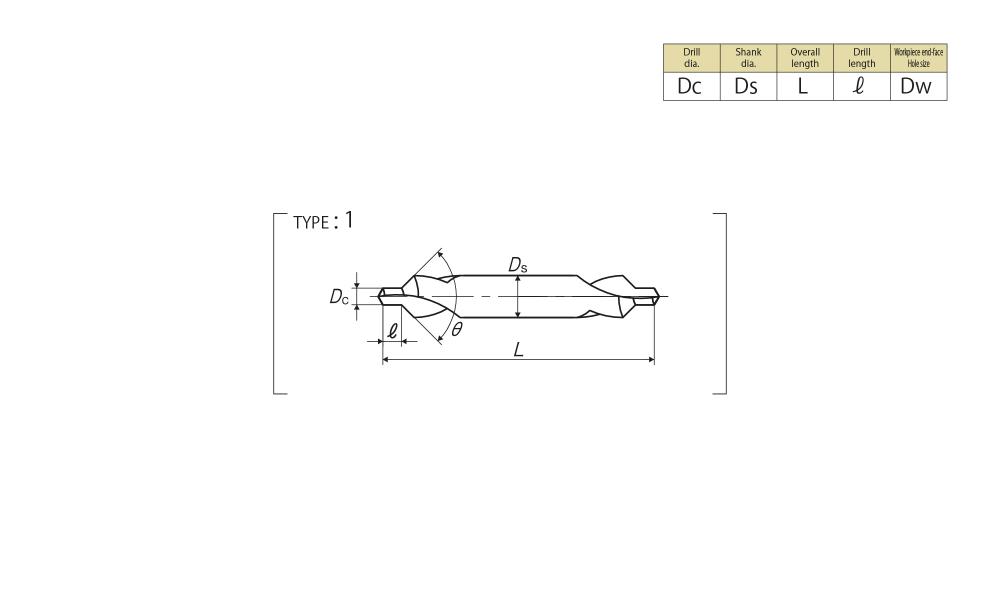

Size Dc × θ ×Ds |
Code |
Dc (mm) |
Ds (mm) |
L (mm) |
ℓ (mm) |
Dw (mm) |
TYPE |
|
1 × 90゜ × 4 |
VCY1.0Z |
1 |
4 |
35 |
1 |
3 |
1 |
|
1.5 × 90゜ × 5 |
VCY1.5Z |
1.5 |
5 |
40 |
1.5 |
4 |
1 |
|
2 × 90゜ × 6 |
VCY2.0Z |
2 |
6 |
45 |
2 |
5 |
1 |
|
2.5 × 90゜ × 7.7 |
VCY2.5Z |
2.5 |
7.7 |
50 |
2.5 |
6.5 |
1 |
|
3 × 90゜ × 7.7 |
VCY3.0Z |
3 |
7.7 |
55 |
3 |
6.5 |
1 |
|
4 × 90゜ × 10 |
VCY4.0Z |
4 |
10 |
65 |
4.5 |
8.5 |
1 |
|
5 × 90゜ × 11 |
VCY5.0Z |
5 |
11 |
78 |
5.5 |
9 |
1 |
|
6 × 90゜ × 18 |
VCY6.0Z |
6 |
18 |
90 |
6.5 |
15 |
1 |
・Machining conditions are calculated based on the workpiece end-face hole size Dw.
・For details on machining conditions, see TECHNICAL INFORMATION, “27. Table of recommend centering condition.”
| แบรนด์สินค้า | YAMAWA |
|---|
