CERA Setting Rings SERIES 177 — Accessories for Inside Micrometers, Holtest and Dial Bore Gages | MITUTOYO

ราคาต่ำสุด THB 0.00 THB 0.00 ราคาปรกติ THB 7,030.97
พร้อมส่ง
SKU
CERA-SETTING-RING

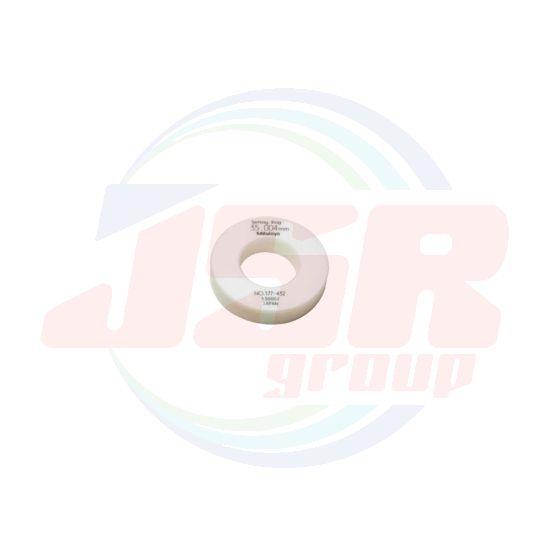

• Used for quick and accurate setting of dial bore gages, Holtest, and inside micrometers.

• Actual diameter is marked in 0.001 mm increments. (Measuring position of dimension is the center of the height T.)

CERA Setting Rings SERIES 177 — Accessories for Inside Micrometers, Holtest and Dial Bore Gages | MITUTOYO
CERA Setting Rings SERIES 177 — Accessories for Inside Micrometers, Holtest and Dial Bore Gages | MITUTOYO

Steel Setting Rings

Metric

Order No. Nominal size ød
(mm)
Dimensions (mm) Type Accuracy
øD øE T Tolerance
between the
nominal size
and the actual
diameter
(μm)
Uncertainty
of marked
diameter
value*1
(μm)
Roundness /
Cylindricity*2
(μm)
Distance from
the side face H
(mm)
Size of
warranted
calibration
surface K
(mm)
177-418 4 25 - 7 A ±10 1.5 1.0 1.7 3.6
177-420 6 25 - 7 A ±10 1.5 1.0 1.7 3.6
177-423 8 32 - 10 A ±10 1.5 1.0 2.0 6.0
177-424 10 32 - 10 A ±10 1.5 1.0 2.0 6.0
177-425 12 32 - 10 A ±10 1.5 1.0 2.0 6.0
177-427 16 45 - 10 A ±10 1.5 1.0 2.0 6.0
177-429 20 45 - 10 A ±10 1.5 1.0 2.0 6.0
177-430 25 53 - 15 A ±10 1.5 1.0 3.2 8.6
177-431 30 71 - 15 A ±10 1.5 1.0 3.2 8.6
177-432 35 71 - 15 A ±10 1.5 1.0 3.2 8.6
177-433 40 71 - 15 A ±10 1.5 1.0 3.2 8.6
177-434 45 85 - 15 A ±10 1.5 1.0 3.7 7.6

*1 Actual diameter is marked in 0.001 mm increments. (Dimension measuring position is the center of the height T.)
*2 Cylindricity is defined as per JIS B 0621 Definitions and designations of geometrical deviations, Section 4.4 “Cylindricity.” Cylindricity is measured using three cross-sections between the top and bottom face of a ring, namely, close to the face near each side and the center.
