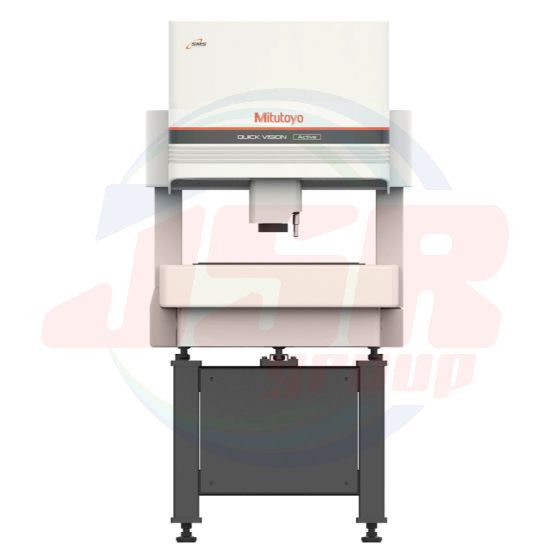

QVTP Active - CNC Vision Measuring System Equipped with a Touch-trigger Probe | MITUTOYO
สินค้าหมด
SKU
QVTP Active

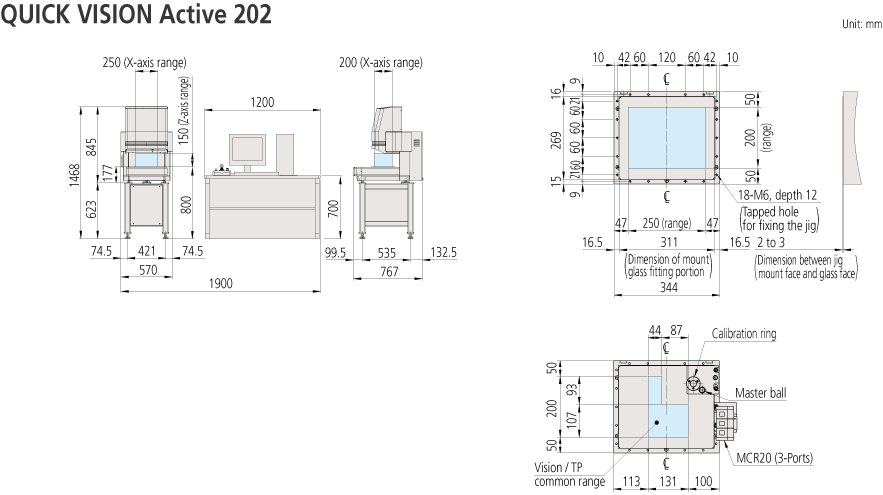

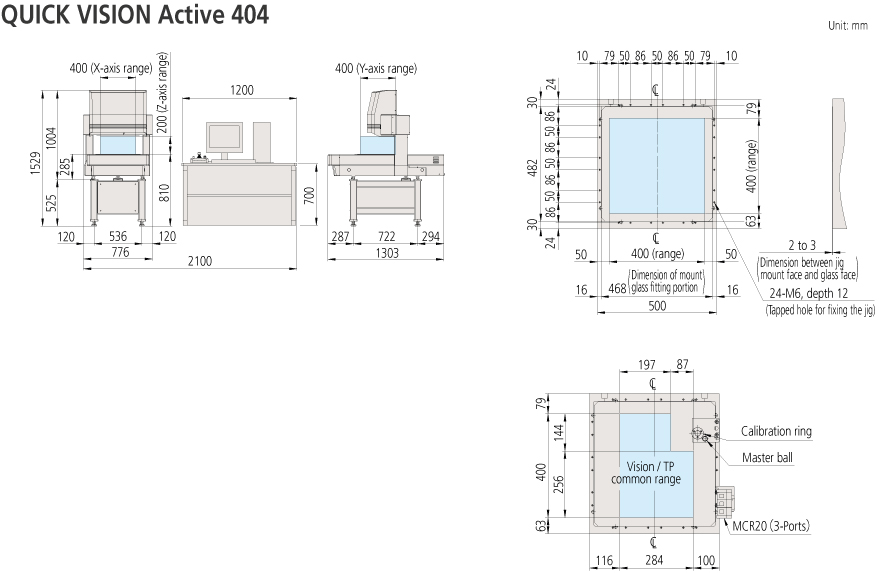

SPECIFICATIONS
| Model No. | QUICK VISION Active 202 | QUICK VISION Active 404 | |||
| Model | QV-L202Z1L-D | QVT1-L202Z1L-D | QV-L404Z1L-D | QVT1-L404Z1L-D | |
| Type | Standard model | Touch-probe equipped model | Standard model | Touch-probe equipped model | |
| Measuring range (X×Y×Z) | 250×200×150 mm (250×200×118 mm: when 1X objective lens is used) |
400×400×200 mm (400×400×168 mm: when 1X objective lens is used) |
|||
| Resolution | 0.1 μm | ||||
| Scale type | Linear encoder | ||||
| Observation unit | Zoom unit (8 positions) | ||||
| Imaging device | Color CMOS camera | ||||
| Illumination Unit | Co-axial Light | White LED | |||
| Transmitted Light | White LED | ||||
| PRL | 4-quadrant fixed white LED | ||||
| Accuracy*¹ | E1X, E1Y | (2 + 3L /1000) μm | |||
| E1Z | (3 + 5L /1000) μm | ||||
| E2 | (2.5 + 4L /1000) μm | ||||
| Accuracy guaranteed with optics specified | Objective: 1.5X, Optical magnification: 5.25X | ||||
| Touch-trigger probe measuring accuracy*¹ |
E1X, E1Y, E1Z | — | (2.4 + 3L /1000) μm | — | (2.4 + 3L /1000) μm |
| Accuracy guaranteed temperature range | 20±1 °C | 18 to 23 °C | 20±1 °C | 18 to 23 °C | |
| Size of stage glass | 311×269 mm | 466×480 mm | |||
| Maximum stage loading*² | 10 kg | 20 kg | |||
| Dimensions | 570×767×1468 mm | 776×1303×1529 mm | |||
| Mass (including machine stand) | 155 kg | 324 kg | |||
| Temperature compensation function | — | Manual | — | Manual | |
*1 Inspected to a Mitutoyo standard. L=length between two arbitrary points (mm)
*2 Does not apply for unbalanced or concentrated loads.
