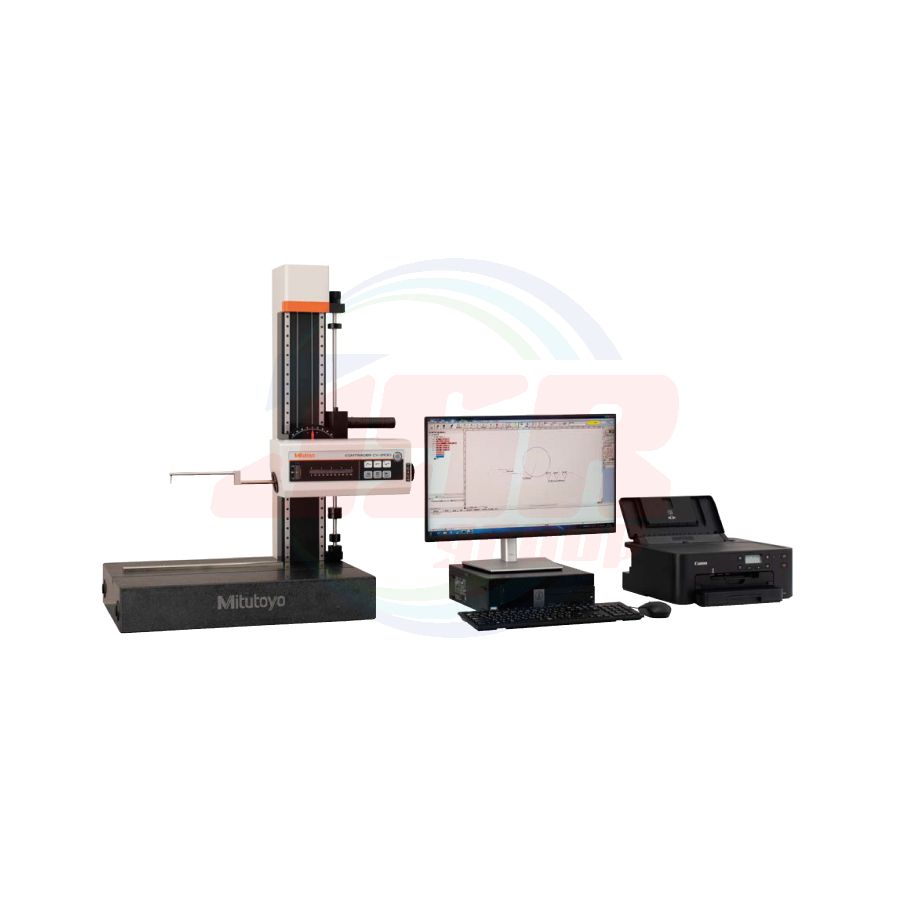

Contour Measuring Instrument
CONTRACER CV-2100
Contour measuring instruments for easy, accurate, fast measurements by concentrating measurement control switches at the front of the unit.
Measuring range (X axis): 100 mm
Measuring range (Z1 axis): 50 mm
Specification
| Model | CV-2100M4 | CV-2100N4 | |
| Order No. | 218-643-13 | 218-623-13 | |
| Measurement range | X-axis | 4"(100mm) | |
| Z1-axis (detector unit) | 2"(50mm) | ||
| Z2-axis (column) travel range | 13.8"(350mm) | — | |
| X-axis inclination angle | ±45° | — | |
| Resolution | X-axis | 3.93µin (0.1μm) | |
| Z1-axis | 3.93µin (0.1μm) | ||
| Drive method | X-axis | Motorized drive 0 - 0.79in/s (0 - 20mm/s) | |
| Z2-axis (column) | Manual (quick-up-and-down motion, fine feed) | — | |
| Measuring speed | 0.00078 - 0.2in/sec (0.02 - 5mm/s) | ||
| Linearity accuracy (X-axis horizontal orientation) | 98.4µin/4in (2.5μm/100mm) | ||
| Accuracy (20°C) |
X-axis | ±(98.4 + .79L) µin [±(2.5+0.02L) μm)] L = Measurement Length (mm) | |
| Z1-axis | ±(98.4+|3.9H|) µin [±(2.5+|0.1H|) μm] H = Measurementt height from horizontal position within 1"(±25mm) | ||
| Measurement direction | Push and pull | ||
| Measurement surface direction | Downward | ||
| Measuring force | (3gf) (30±10mN) | ||
| Stylus traceable angle (Standard accessory stylus) | Ascent 77°, Descent 87° (Depends on the surface condition) | ||

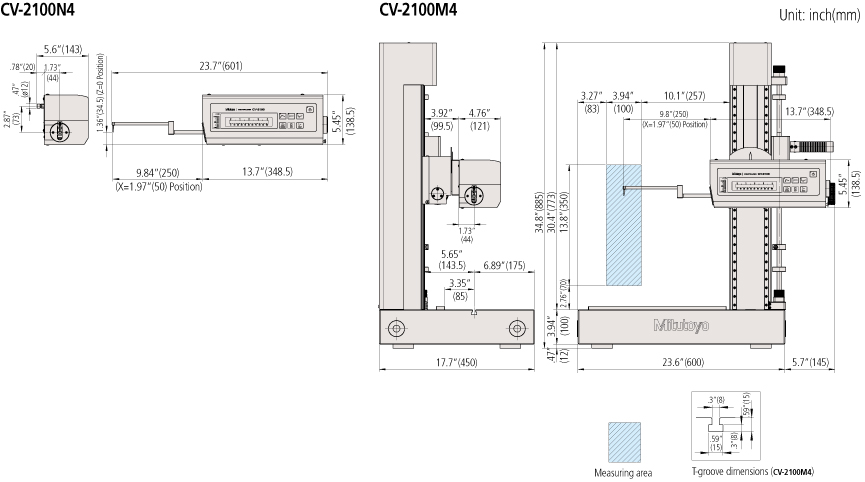

| External dimensions (W×D×H) | 29.3"x17.7"x34.8" (745×450×885mm) | 23.7"x5.63"x5.45" (601×143×138.5mm) | |
| Mass | 321.43 lbs (145.8 kg) | 12.78 lbs (5.8 kg) | |
| แบรนด์สินค้า | MITUTOYO |
|---|
