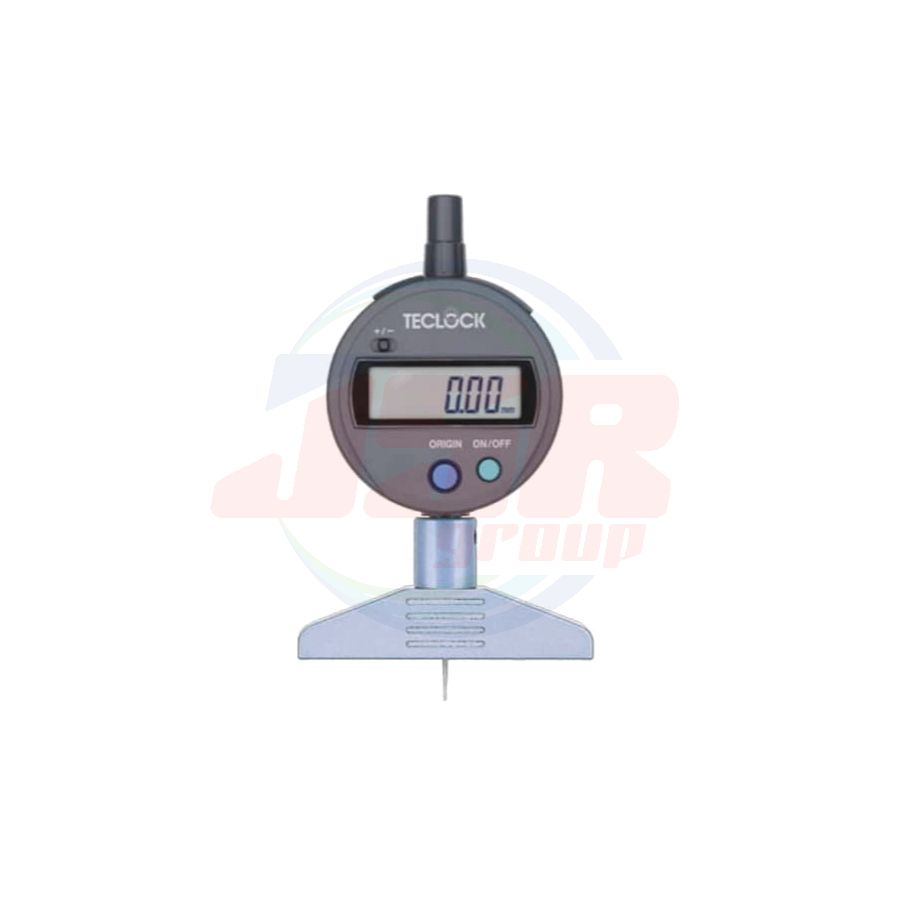

Conventional Digital Depth Gauge - Resolution : 0.01mm
• Digital Exclusive instrument to measure depth and steps of work piece.
• Low cost and conventional model of which preset function is deleted from standard digital depth gauges.
• Operation is equal to standard digital depth gauges, but it can not measure by installing extension rods. In case that measuring range is over 10mm, please use standard digital depth gauges.
• Printing out of measured data and statistics arithmetic operation can be implemented by connecting it to optional Digital mini-printer SD-763P.
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Indication Error (μm) |
Contact Point Form (mm) |
Standard Contact Point | Measuring Force (N) | Weight (g) |
| DMD-210S2 | 0.01 | 12 | ±20 | Needle | ZS-523 | 2.0 or less | 280 |
| DMD-211S2 | 0.01 | 12 | ±20 | φ2 Flat | ZS-530 | 2.0 or less | 270 |
| DMD-213S2 | 0.01 | 12 | ±20 | φ3.2 Steel Ball | ZS-034 | 2.0 or less | 270 |
| DMD-250S2 | 0.01 | 5 | ±20 | Needle | ZS-518 | 2.0 or less | 205 |
| DMD-252S2 | 0.01 | Concave 5, Convex 4 | ±20 | Needle | ZS-595 | 2.0 or less | 200 |
| แบรนด์สินค้า | TECLOCK |
|---|

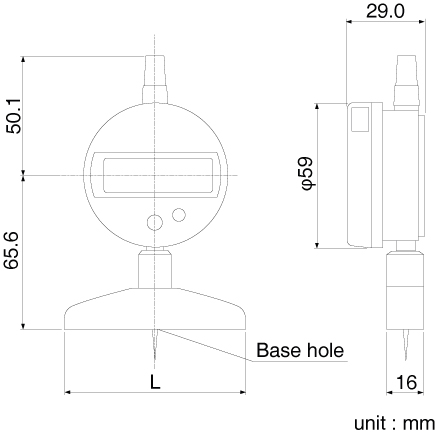

| Order No. | Base Hole Diameter |
L |
| DMD-210S2 | 2.5 | 75 |
| DMD-211S2 | 2.5 | 75 |
| DMD-213S2 | 5.2 | 75 |
| DMD-250S2 | 2.0 | 50 |
| DMD-252S2 | 8.0 | 50 |
