CPC-T (Metric Thread) | Check Pins for Bored Holes in Thread Cut Tapping (Taper Type) | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 236.45
พร้อมส่ง
SKU
CPC-T (Metric Thread)

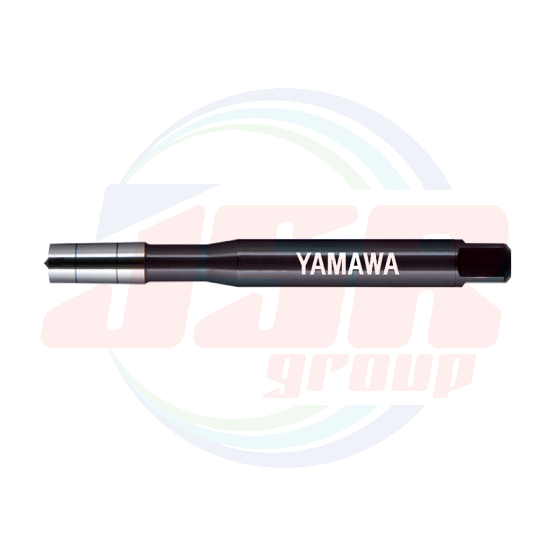

- One CPC-T enables simple checking of bored hole dia. (for cutting taps, taper type).CPC-T is made from wear resistant HSS material and is applicable for through hole a nd for blind hole having enough space in the bottom.

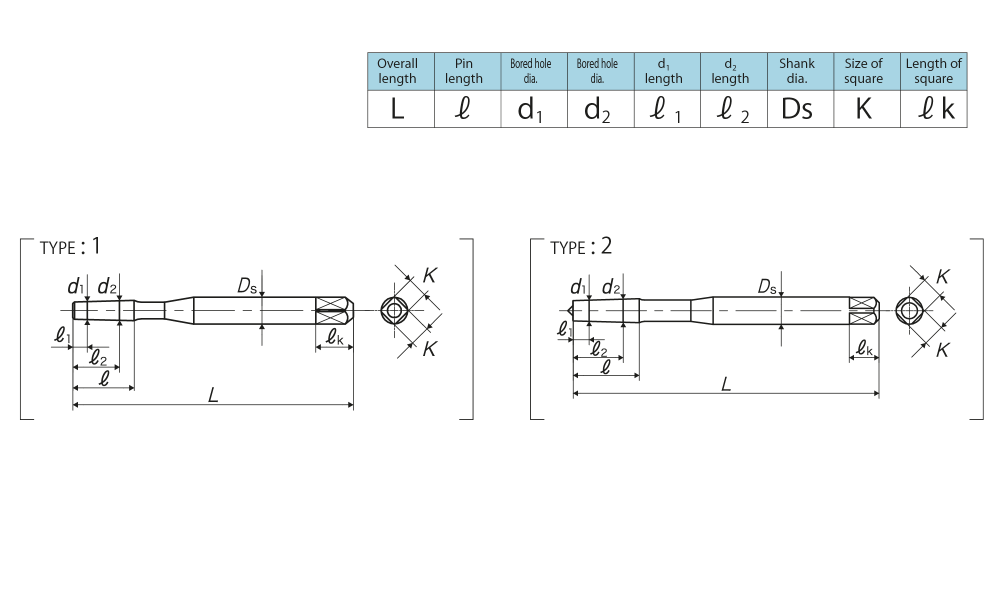

Specification
Segment：7C
|
Size |
Code |
L (mm) |
ℓ (mm) |
d1 (Thread engagement ratio） |
d2 (Thread engagement ratio） |
ℓ1 (mm) |
ℓ2 (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
TYPE |
|
For Metric Threads |
|||||||||||
|
M2×0.4 |
CPCT2.0E |
42 |
7 |
1.567 (100%) |
1.679 (74%) |
1 |
6 |
3 |
2.5 |
5 |
1 |
|
M2.5×0.45 |
CPCT2.5F |
46 |
8 |
2.013 (100%) |
2.138 (74%) |
1.5 |
6.5 |
3 |
2.5 |
5 |
1 |
|
M2.5×0.35 |
CPCT2.5D |
46 |
8 |
2.121 (100%) |
2.221 (74%) |
1.5 |
6.5 |
3 |
2.5 |
5 |
1 |
|
M3×0.5 |
CPCT3.0G |
46 |
8.5 |
2.459 (100%) |
2.599 (74%) |
1.5 |
7 |
4 |
3.2 |
6 |
1 |
|
M3×0.35 |
CPCT3.0D |
46 |
8.5 |
2.621 (100%) |
2.721 (74%) |
1.5 |
7 |
4 |
3.2 |
6 |
1 |
|
M3.5×0.6 |
CPCT3.5H |
52 |
10.5 |
2.850 (100%) |
3.010 (75%) |
2.25 |
8.25 |
5 |
4 |
7 |
1 |
|
M3.5×0.35 |
CPCT3.5D |
52 |
10.5 |
3.121 (100%) |
3.221 (74%) |
2.25 |
8.25 |
5 |
4 |
7 |
1 |
|
M4×0.7 |
CPCT4.0I |
52 |
10.5 |
3.242 (100%) |
3.422 (76%) |
2.25 |
8.25 |
5 |
4 |
7 |
1 |
|
M4×0.5 |
CPCT4.0G |
52 |
10.5 |
3.459 (100%) |
3.599 (74%) |
2.25 |
8.25 |
5 |
4 |
7 |
1 |
|
M4.5×0.75 |
CPCT4.5J |
59.5 |
12.5 |
3.688 (100%) |
3.878 (77%) |
2.5 |
10 |
5.5 |
4.5 |
7 |
1 |
|
M4.5×0.5 |
CPCT4.5G |
59.5 |
12.5 |
3.959 (100%) |
4.099 (74%) |
2.5 |
10 |
5.5 |
4.5 |
7 |
1 |
|
M5×0.8 |
CPCT5.0K |
59.5 |
12.5 |
4.134 (100%) |
4.334 (77%) |
2.5 |
10 |
5.5 |
4.5 |
7 |
1 |
|
M5×0.5 |
CPCT5.0G |
59.5 |
12.5 |
4.459 (100%) |
4.599 (74%) |
2.5 |
10 |
5.5 |
4.5 |
7 |
1 |
|
M6×1 |
CPCT6.0M |
61.5 |
16.5 |
4.917 (100%) |
5.153 (78%) |
3.75 |
12.75 |
6 |
4.5 |
7 |
1 |
|
M6×0.75 |
CPCT6.0J |
61.5 |
16.5 |
5.188 (100%) |
5.378 (77%) |
3.75 |
12.75 |
6 |
4.5 |
7 |
1 |
|
M7×1 |
CPCT7.0M |
90 |
19.4 |
5.917 (100%) |
6.153 (78%) |
4.7 |
14.7 |
8 |
6.2 |
9 |
2 |
|
M7×0.75 |
CPCT7.0J |
90 |
19.4 |
6.188 (100%) |
6.378 (77%) |
4.7 |
14.7 |
8 |
6.2 |
9 |
2 |
|
M8×1.25 |
CPCT8.0N |
90 |
19.4 |
6.647 (100%) |
6.912 (80%) |
4.7 |
14.7 |
8 |
6.2 |
9 |
2 |
|
M8×1 |
CPCT8.0M |
90 |
19.4 |
6.917 (100%) |
7.153 (78%) |
4.7 |
14.7 |
8 |
6.2 |
9 |
2 |
|
M8×0.75 |
CPCT8.0J |
90 |
19.4 |
7.188 (100%) |
7.378 (77%) |
4.7 |
14.7 |
8 |
6.2 |
9 |
2 |
|
M9×1.25 |
CPCT9.0N |
100 |
23.4 |
7.647 (100%) |
7.912 (80%) |
6.7 |
16.7 |
10 |
8 |
11 |
2 |
|
M9×1 |
CPCT9.0M |
100 |
23.4 |
7.917 (100%) |
8.153 (78%) |
6.7 |
16.7 |
10 |
8 |
11 |
2 |
|
M9×0.75 |
CPCT9.0J |
100 |
23.4 |
8.188 (100%) |
8.378 (77%) |
6.7 |
16.7 |
10 |
8 |
11 |
2 |
|
M10×1.5 |
CPCT010O |
100 |
23.4 |
8.376 (100%) |
8.676 (82%) |
6.7 |
16.7 |
10 |
8 |
11 |
2 |
|
M10×1.25 |
CPCT010N |
100 |
23.4 |
8.647 (100%) |
8.912 (80%) |
6.7 |
16.7 |
10 |
8 |
11 |
2 |
|
M10×1 |
CPCT010M |
100 |
23.4 |
8.917 (100%) |
9.153 (78%) |
6.7 |
16.7 |
10 |
8 |
11 |
2 |
|
M10×0.75 |
CPCT010J |
100 |
23.4 |
9.188 (100%) |
9.378 (77%) |
6.7 |
16.7 |
10 |
8 |
11 |
2 |
|
M11×1.5 |
CPCT011O |
110 |
27.4 |
9.376 (100%) |
9.676 (82%) |
7.7 |
19.7 |
12 |
9 |
12 |
2 |
|
M11×1 |
CPCT011M |
110 |
27.4 |
9.917 (100%) |
10.153 (78%) |
7.7 |
19.7 |
12 |
9 |
12 |
2 |
|
M11×0.75 |
CPCT011J |
110 |
27.4 |
10.188 (100%) |
10.378(77%) |
7.7 |
19.7 |
12 |
9 |
12 |
2 |
|
M12×1.75 |
CPCT012P |
110 |
27.4 |
10.106 (100%) |
10.441 (82%) |
7.7 |
19.7 |
12 |
9 |
12 |
2 |
|
M12×1.5 |
CPCT012O |
110 |
27.4 |
10.376 (100%) |
10.676 (82%) |
7.7 |
19.7 |
12 |
9 |
12 |
2 |
|
M12×1.25 |
CPCT012N |
110 |
27.4 |
10.647 (100%) |
10.912 (80%) |
7.7 |
19.7 |
12 |
9 |
12 |
2 |
|
M12×1 |
CPCT012M |
110 |
27.4 |
10.917 (100%) |
11.153 (78%) |
7.7 |
19.7 |
12 |
9 |
12 |
2 |
