CPR-S (Unified Threads) | Check Pins for Bored Hole in Thread Form Tapping (Straight Type) | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 386.92
พร้อมส่ง
SKU
CPR-S (Unified Threads)
- CPR-S enables checking of several kinds of bored hole dia. and checking of depth of bored hole(for thread forming taps, straight type). CPR-S is made from wear resistant HSS material and is applicable for through hole and blind hole.

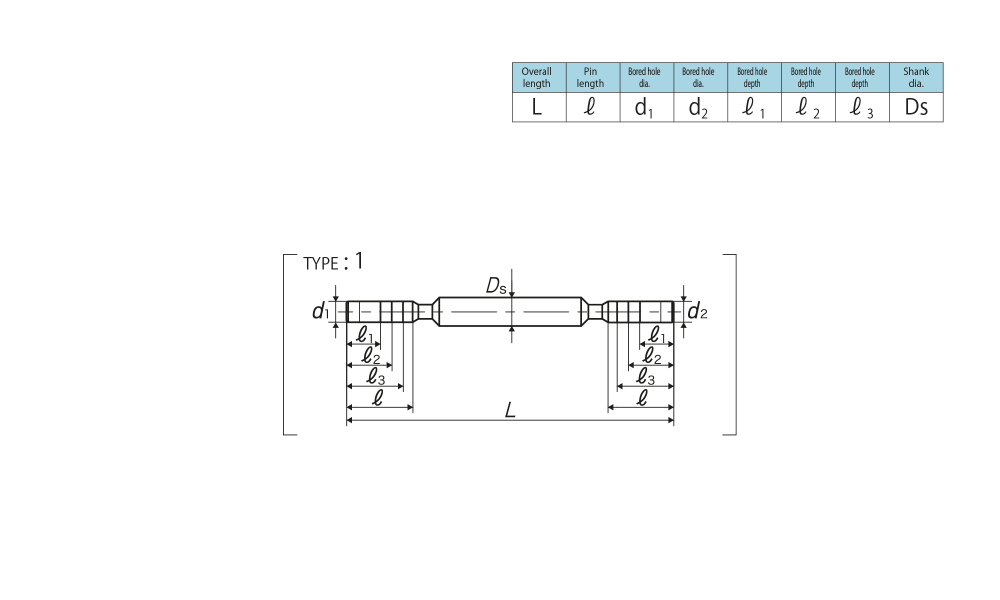

Specification
Segment：7C
|
Size |
Code |
L (mm) |
ℓ (mm) |
d1 (mm) |
d2 (mm) |
ℓ1 (mm) |
ℓ2 (mm) |
ℓ3 (mm) |
Ds (mm) |
TYPE |
|
For Unified Threads |
||||||||||
|
No.2-56UNC |
CPRSUN2E |
41.5 |
5.5 |
1.96 |
2.04 |
3.3 |
4.4 |
5.5 |
3 |
1 |
|
No.2-64UNF |
CPRSUN2D |
41.5 |
5.5 |
1.98 |
2.06 |
3.3 |
4.4 |
5.5 |
3 |
1 |
|
No.3-48UNC |
CPRSUN3F |
45 |
7.5 |
2.25 |
2.35 |
3.8 |
5 |
6.3 |
3 |
1 |
|
No.3-56UNF |
CPRSUN3E |
45 |
7.5 |
2.29 |
2.37 |
3.8 |
5 |
6.3 |
3 |
1 |
|
No.4-40UNC |
CPRSUN4H |
49 |
9 |
2.54 |
2.64 |
4.3 |
5.7 |
7.1 |
4 |
1 |
|
No.4-48UNF |
CPRSUN4F |
49 |
9 |
2.59 |
2.68 |
4.3 |
5.7 |
7.1 |
4 |
1 |
|
No.5-40UNC |
CPRSUN5H |
49 |
9 |
2.87 |
2.97 |
4.8 |
6.4 |
7.9 |
4 |
1 |
|
No.5-44UNF |
CPRSUN5G |
49 |
9 |
2.90 |
2.99 |
4.8 |
6.4 |
7.9 |
4 |
1 |
|
No.6-32UNC |
CPRSUN6J |
57 |
11 |
3.11 |
3.22 |
5.3 |
7 |
8.8 |
5 |
1 |
|
No.6-40UNF |
CPRSUN6H |
57 |
11 |
3.19 |
3.29 |
5.3 |
7 |
8.8 |
5 |
1 |
|
No.8-32UNC |
CPRSUN8J |
57 |
11 |
3.78 |
3.89 |
6.3 |
8.3 |
10.4 |
5 |
1 |
|
No.8-36UNF |
CPRSUN8I |
57 |
11 |
3.81 |
3.91 |
6.3 |
8.3 |
10.4 |
5 |
1 |
|
No.10-24UNC |
CPRSUNAM |
65 |
14 |
4.30 |
4.44 |
7.2 |
9.7 |
12.1 |
5.5 |
1 |
|
No.10-32UNF |
CPRSUNAJ |
65 |
14 |
4.44 |
4.53 |
7.2 |
9.7 |
12.1 |
5.5 |
1 |
|
No.12-24UNC |
CPRSUNCM |
73 |
16.5 |
4.96 |
5.07 |
8.2 |
11 |
13.7 |
6 |
1 |
|
No.12-28UNF |
CPRSUNCK |
73 |
16.5 |
5.03 |
5.13 |
8.2 |
11 |
13.7 |
6 |
1 |
|
1/4-20UNC |
CPRSU04N |
73 |
16.5 |
5.73 |
5.86 |
9.5 |
12.7 |
15.9 |
6 |
1 |
|
1/4-28UNF |
CPRSU04K |
73 |
16.5 |
5.91 |
6.00 |
9.5 |
12.7 |
15.9 |
6 |
1 |
|
5/16-18UNC |
CPRSU05O |
99 |
22 |
7.23 |
7.38 |
12 |
16 |
20 |
8 |
1 |
|
5/16-24UNF |
CPRSU05M |
99 |
22 |
7.42 |
7.53 |
12 |
16 |
20 |
8 |
1 |
|
3/8-16UNC |
CPRSU06P |
110 |
27.5 |
8.72 |
8.89 |
14.3 |
19.1 |
23.8 |
10 |
1 |
|
3/8-24UNF |
CPRSU06M |
110 |
27.5 |
8.99 |
9.10 |
14.3 |
19.1 |
23.8 |
10 |
1 |
|
7/16-14UNC |
CPRSU07Q |
121 |
33 |
10.20 |
10.40 |
16.7 |
22.2 |
27.8 |
12 |
1 |
|
7/16-20UNF |
CPRSU07N |
121 |
33 |
10.48 |
10.62 |
16.7 |
22.2 |
27.8 |
12 |
1 |
|
1/2-13UNC |
CPRSU08R |
121 |
33 |
11.70 |
11.92 |
19.1 |
25.4 |
31.8 |
12 |
1 |
|
1/2-20UNF |
CPRSU08N |
121 |
33 |
12.06 |
12.20 |
19.1 |
25.4 |
31.8 |
12 |
1 |
