CPR-Y (Metric Threads) | Check-Pins for Bored Holes in Thread Form Tapping for R-Y Taps. | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 194.39
พร้อมส่ง
SKU
CPR-Y (Metric Threads)

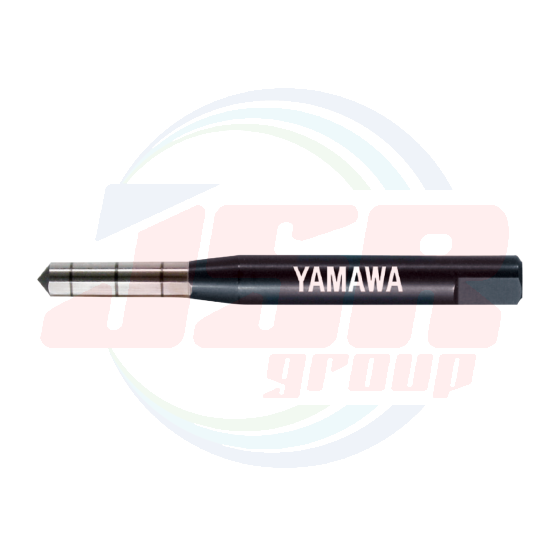

- Check pin for R-Y is the pin to check the bored hole dia. for R-Y forming taps.

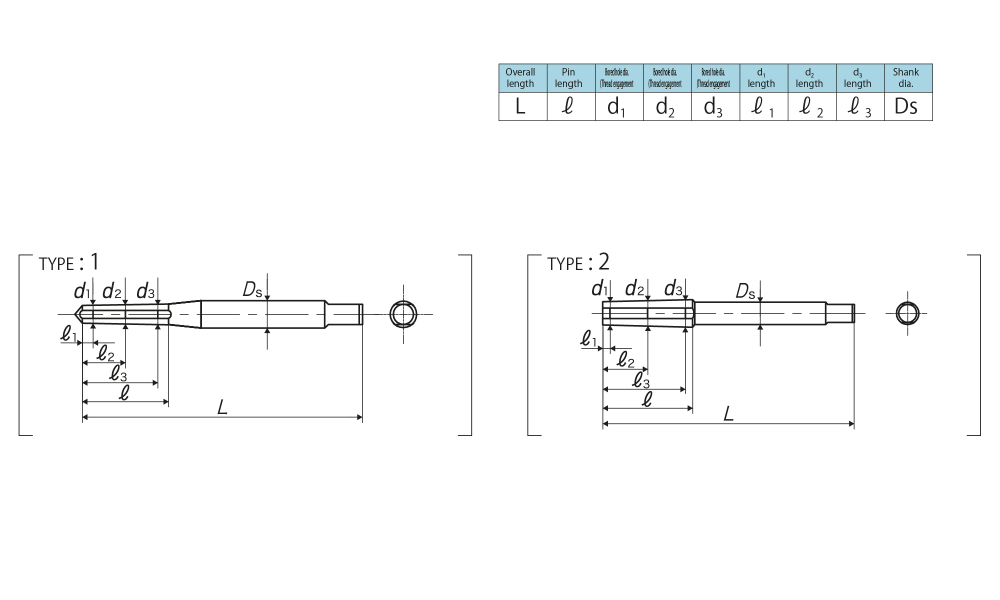

Specification
Segment：1J
|
Size |
Code |
L (mm) |
ℓ (mm) |
d1 Thread engagement ratio 90％ |
d2 Thread engagement ratio 75％ |
d3 Thread engagement ratio 60％ |
ℓ1 (mm) |
ℓ2 (mm) |
ℓ3 (mm) |
Ds (mm) |
TYPE |
|
For Metric Threads |
|||||||||||
|
M2 |
CPRY2.0E |
42 |
9 |
1.83 |
1.86 |
1.89 |
1.5 |
4.5 |
7.5 |
3 |
1 |
|
M2.5 |
CPRY2.5F |
44 |
10 |
2.31 |
2.34 |
2.37 |
2 |
5 |
8 |
3 |
1 |
|
M2.6 |
CPRY2.6F |
44 |
10 |
2.41 |
2.44 |
2.47 |
2 |
5 |
8 |
3 |
1 |
|
M3 |
CPRY3.0G |
46 |
13 |
2.78 |
2.83 |
2.87 |
2 |
6.5 |
11 |
4 |
1 |
|
M4 |
CPRY4.0I |
52 |
16 |
3.69 |
3.75 |
3.81 |
2 |
8 |
14 |
5 |
1 |
|
M5 |
CPRY5.0K |
60 |
16 |
4.65 |
4.71 |
4.77 |
2 |
8 |
14 |
5.5 |
1 |
|
M6 |
CPRY6.0M |
62 |
19 |
5.55 |
5.63 |
5.70 |
2 |
9.5 |
17 |
6 |
1 |
|
M8 |
CPRY8.0N |
70 |
25 |
7.42 |
7.53 |
7.63 |
2 |
12.5 |
23 |
6.2 |
2 |
※Please use CPR-Y for controlling bored holes for R-Y taps.
