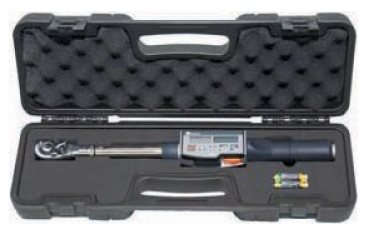

CPT-G - PRO TORK / DIGITAL TORQUE WRENCH FOR TIGHTENING | TOHNICHI
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
TOH-CPT-G
ASSEMBLY | DIGITAL | INTERCHANGEABLE | SIGNAL | BATTERY | ISO6789:2017
● Highly responsive to the applied torque value with indicator display
● Equipped with bright LED lamp indicating current torque level
● 5 changeable units of measure through keypad set up
● Data memory, torque set registration and output functions
ASSEMBLY | DIGITAL | INTERCHANGEABLE | SIGNAL | BATTERY | ISO6789:2017
● Highly responsive to the applied torque value with indicator display
● Equipped with bright LED lamp indicating current torque level
● 5 changeable units of measure through keypad set up
● Data memory, torque set registration and output functions
| Order No. | Torque Range | Overall Length [mm] |
Weight [kg] |
|||||||||
| [N•m] | [kgf•cm] | [kgf•m] | [lbf•in] | [lbf•ft] | ||||||||
| Min.-Max. | 1 digit | Min.-Max. | 1 digit | Min.-Max. | 1 digit | Min.-Max. | 1 digit | Min.-Max. | 1 digit | |||
| CPT20x10D-G-SET | 4-20 | 0.02 | 40-200 | 0.2 | 0.4-2 | 0.002 | 36-180 | 0.2 | 3-14.5 | 0.02 | 280.5 | 0.63 |
| CPT50x12D-G-SET | 10-50 | 0.05 | 100-500 | 0.5 | 1-5 | 0.005 | 100-440 | 0.5 | 7.5-36 | 0.05 | 282.5 | 0.65 |
| CPT100x15D-G-SET | 20-100 | 0.1 | 200-1000 | 1 | 2-10 | 0.01 | 200-880 | 1 | 15-73 | 0.1 | 384.5 | 0.85 |
| CPT200x19D-G-SET | 40-200 | 0.2 | 400-2000 | 2 | 4-20 | 0.02 | 360-1700 | 2 | 30-150 | 0.2 | 475.5 | 1.37 |
| CPT280x22D-G-SET | 56-280 | 0.2 | 560-2800 | 2 | 5.6-28 | 0.02 | 500-2400 | 2 | 42-200 | 0.2 | 591.5 | 1.76 |
Note. 1. "Torque Wrench Only" version is provided in basic carton product box and does include TQH Head, Batteries, Storage case.
2. "Overall Length" does not include the length of interchangeable head TQH.
3. "Weight" does not include the weight of intercheable head TQH and batteries.
4. Interchangeable heads are sold separately.
"Set" Models including Accessories
| Order No. | Standard Accessory | |||
| Ratchet Head | Battery | Storage Case | ||
| Model | Sq. Drive [mm] | |||
| CPT20x10D-G-SET | TQH10D | 9.5 |
AA Alkaline Battery (2 pcs) |
Small |
| CPT50x12D-G-SET | TQH12D | 9.5 | ||
| CPT100x15D-G-SET | TQH15D | 12.7 | ||
| CPT200x19D-G-SET | TQH19D | 12.7 | Large | |
| CPT280x22D-G-SET | TQH22D | 19.0 | ||
Note. Recommendation : Use 2xAA Ni-MH batteries for longer continuous use.
■ CPT-G Optional Accessories
| Part # | Applicable Model Dimension [mm] | Weight [kg] |
| 844 | CPT20x10D-G - CPT100x15D-G H170xW500xD100 | 1.0 |
| 845 | CPT200x19D-G, XPT280x22D-G H170xW740xD100 | 1.6 |
Connecting Cable
| Part # | Applicable Model |
| 858 | CPT-G - PC (D-Sub 9 pin Female) |
Data Processing Software
| Model |
| EXCEL RECEIVER |
| แบรนด์สินค้า | TOHNICHI |
|---|
