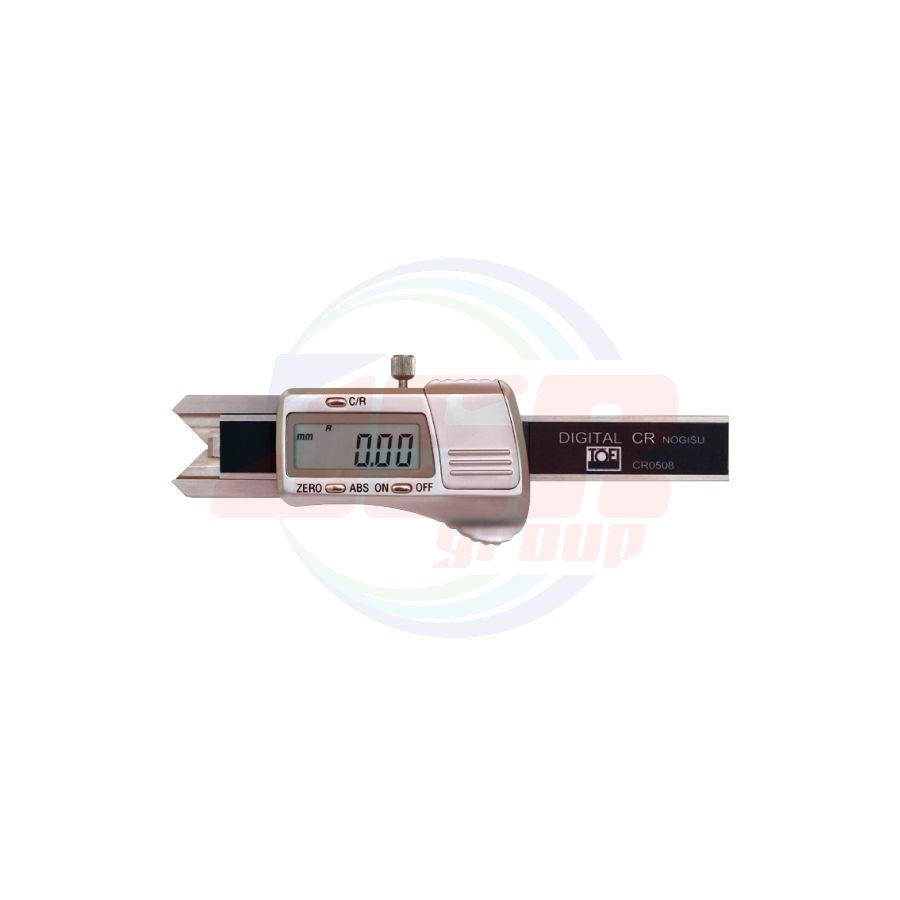

CR0508 | Digital CR Caliper | TOEI
THB 0.00
ราคารวม VAT แล้ว
พร้อมส่ง
SKU
CR0508
QTY:
10
| Order No. | CR0508 |
| C-face dimension measurement range | Chamfering angle 45 degrees C 0.01 to C 5.00 with a circumscribed angle of 90 degrees |
| R dimension measurement range | R R 0.01 to R 8.00 circumscribing the work angle of 90 degrees |
| R 0.6 to R 8.00 circumscribing the circle or the work angle within 90 degrees |
|

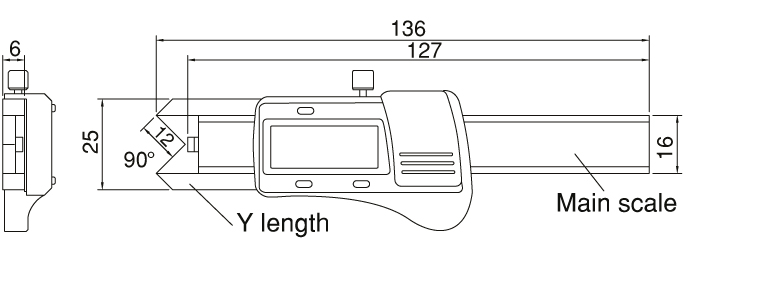

| Size | 136L x 25W (mm) |
| Dimensions (thickness) | Y scale body 6mm / main measure 2.5mm |
| Minimal display | C = 0.01 / R = 0.01 |
| Measurement accuracy | C = ±0.05 / R = ± 0.08 |
| Dust and waterproof standard | IP50 |
| Material | Stainless steel (SUS420J2) |
| Battery life used | 3V lithium battery (CR2032) 1 piece 1000 hours |
| accessories | Master gauge for calibration (Φ 20 ± 3 μm x 8 L) |
| traceability | Proof of calibration can be issued (paid) |
| แบรนด์สินค้า | TOEI |
|---|
