Suitable for automated measurements of small and mediumsized workpieces. The line-up includes various models that can be installed in temperature-controlled rooms and next to production lines.

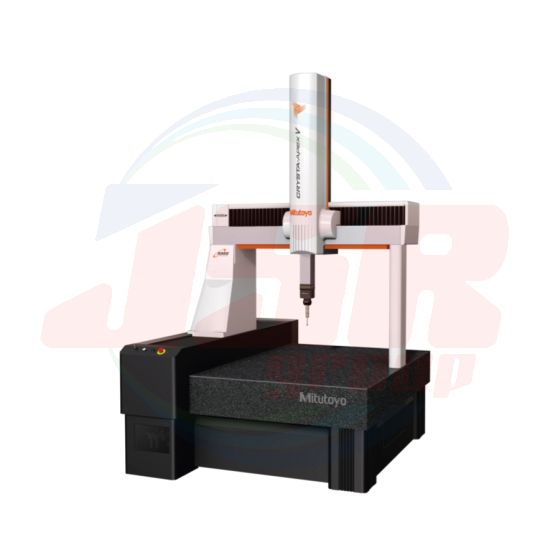

Bridge Type Standard CNC CMM CRYSTA-Apex V500/700/900
Each axis: 1000 (max. combined acceleration: 1732)
Length measuring method
Linear encoder
Resolution (mm)
0.0001
Measuring table
Material
Granite
Size <stage> (mm)
1080×2320
Measured object fixing method
M8×1.25
Workpiece
Maximum height (mm)
1000
Maximum mass (kg)
1500

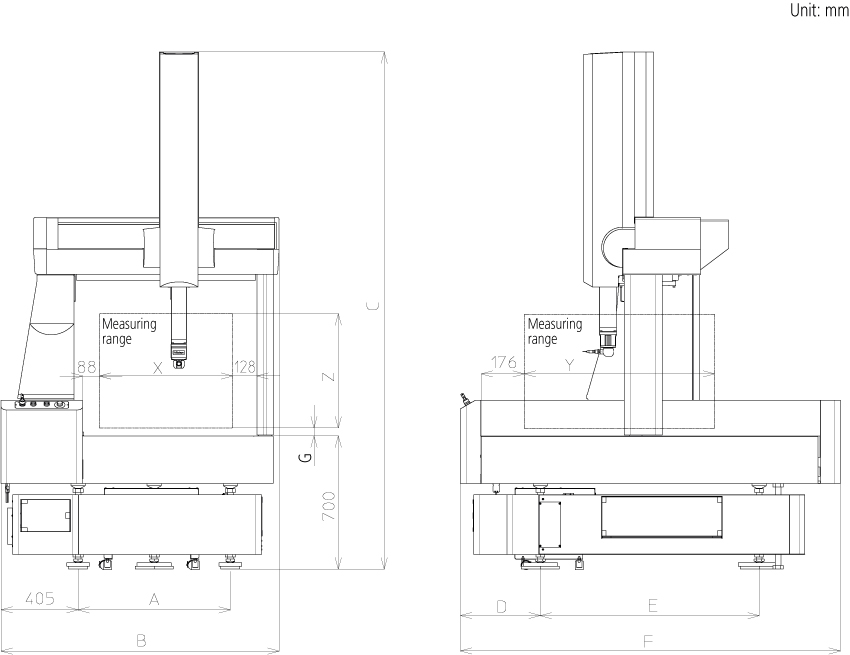

Main unit dimensions (mm)
Height
3130
Width
1670
Depth
2740
Mass (kg) <including the installation platform and control device but excluding workpiece>
2999
Power requirements
Voltage, Frequency
100 - 120/220 - 240 VAC±10%, 50/60 Hz
Power consumption (including probe options I/F)
0.7 kW
Air supply
Pressure
0.4 MPa (4 kgf/cm²)
Consumption
60 L/min under normal conditions (air source: 120 L/min)
Operating temperature range
10 - 30 °C
Accuracy
Unit: μm
Probe configuration
Probe
SP25M
MPP310Q*¹
SP80*¹
TP200
TP20
Module
SM25-1
－
－
STANDARD FORCE
Stylus (mm)
φ4×50
φ4×18
φ4×50
φ4×10
φ4×10
Length measurement error E0, MPE (μm)
Temperature environment 1*² Temperature environment 2*²
1.7+3L/1000 1.7+4L/1000
1.9+3L/1000 1.9+4L/1000
2.2+3L/1000 2.2+4L/1000
Length measurement error E150, MPE (μm)
Temperature environment 1*² Temperature environment 2*²
1.7+3L/1000 1.7+4L/1000
2.4+3L/1000 2.4+4L/1000
2.7+3L/1000 2.7+4L/1000
Repeatability R0, MPL (μm)
1.3
1.9
2.2
Scanning error MPETHP (μm)
2.3 (50s)
1.8 (80s)
2.0 (50s)
－
－
Single stylus form error PFTU, MPE (μm)
1.7
1.9
2.2
Testing and evaluation methods for E0, MPE, E150, MPE and R0, MPL are as per ISO 10360-2: 2009 (JIS B 7440-2: 2013). Testing and evaluation methods for MPETHP are as per ISO 10360-4: 2000 (JIS B 7440-4: 2003). Testing and evaluation methods for PFTU, MPE are as per ISO 10360-5: 2010 (JIS B 7440-5: 2013). L = Measuring length (mm) *1 Available by custom order for machine proper only. *2 See below table for temperature environments 1 and 2.
