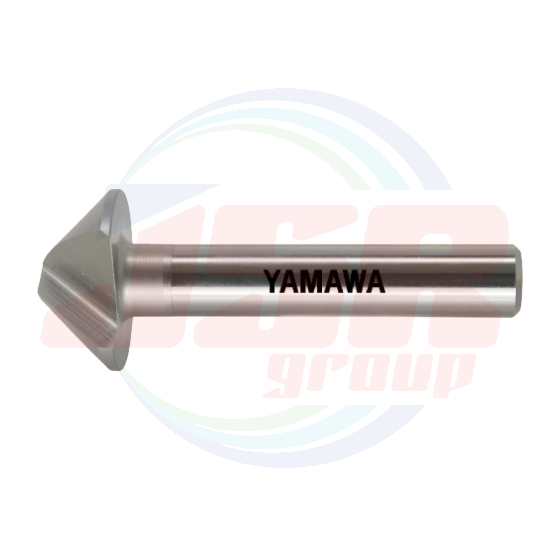

CS-Q | Countersinks 90°, Machining Center Use) | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 160.75
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
CS-Q
QTY:
0
● CS-Q is suitable for the machining of high accuracy on the chamfering of round hole and on the chamfering of attaching face of screw bolts. Having one cutting edge, this tool is suitable for machining center use.
Specification

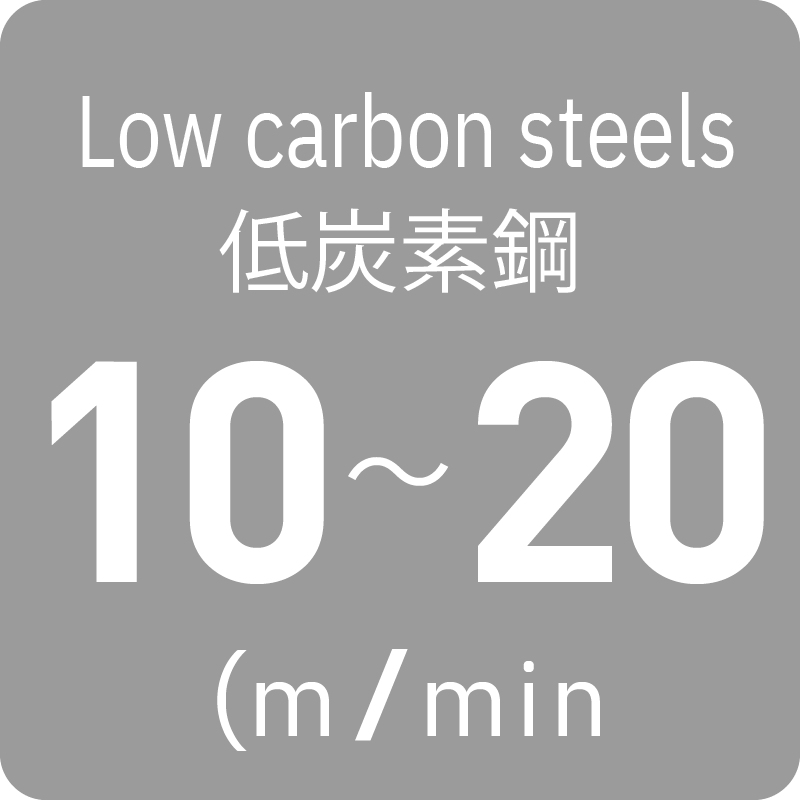

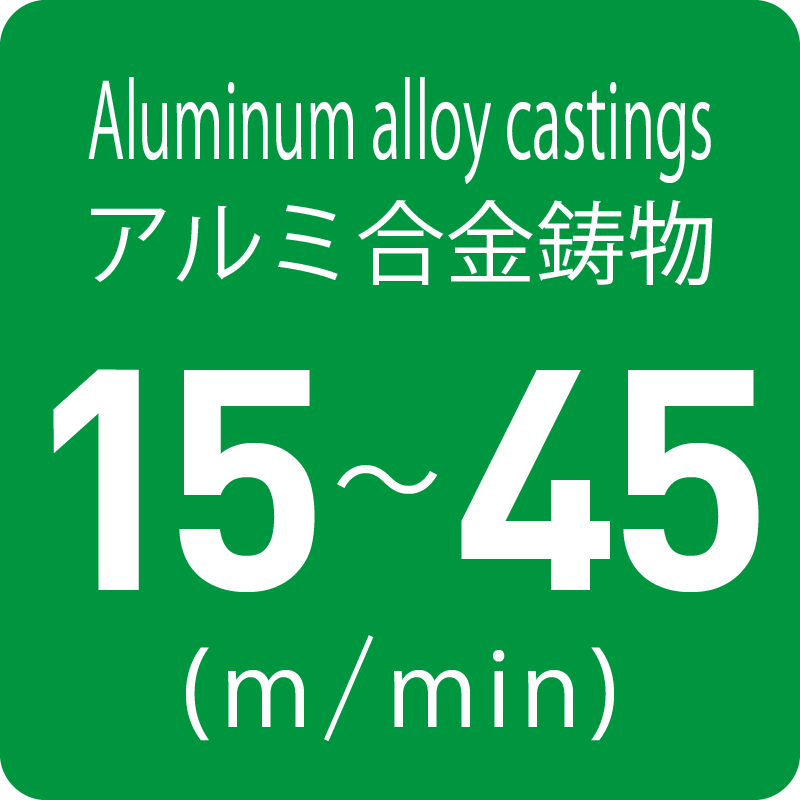

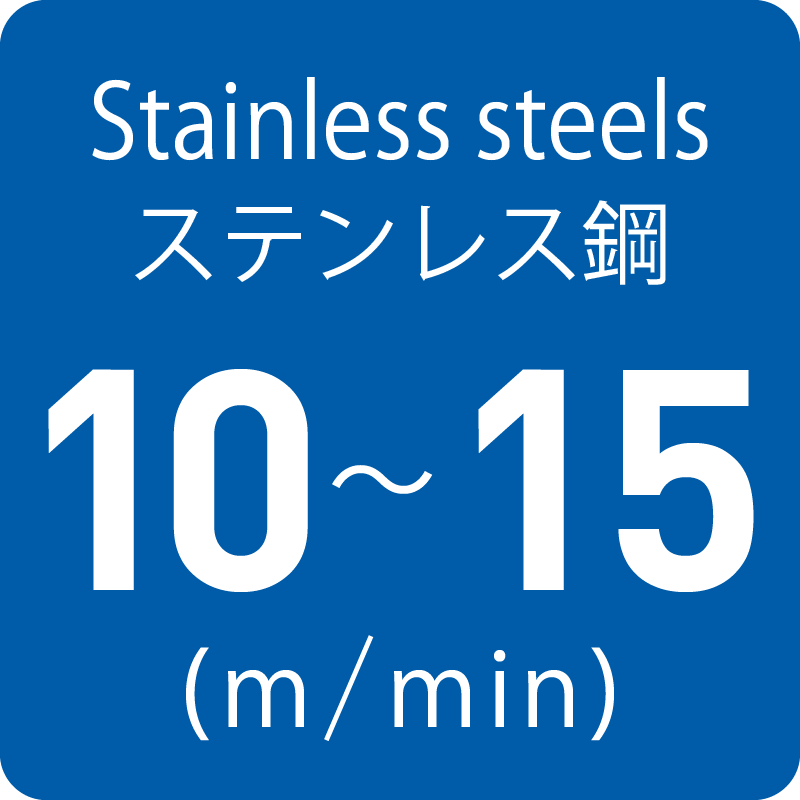

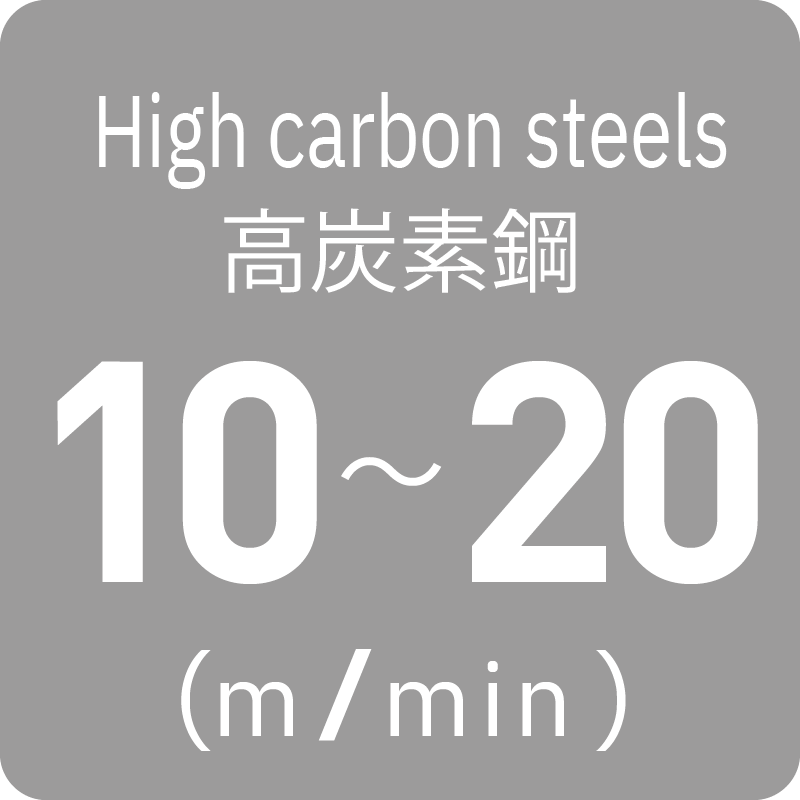

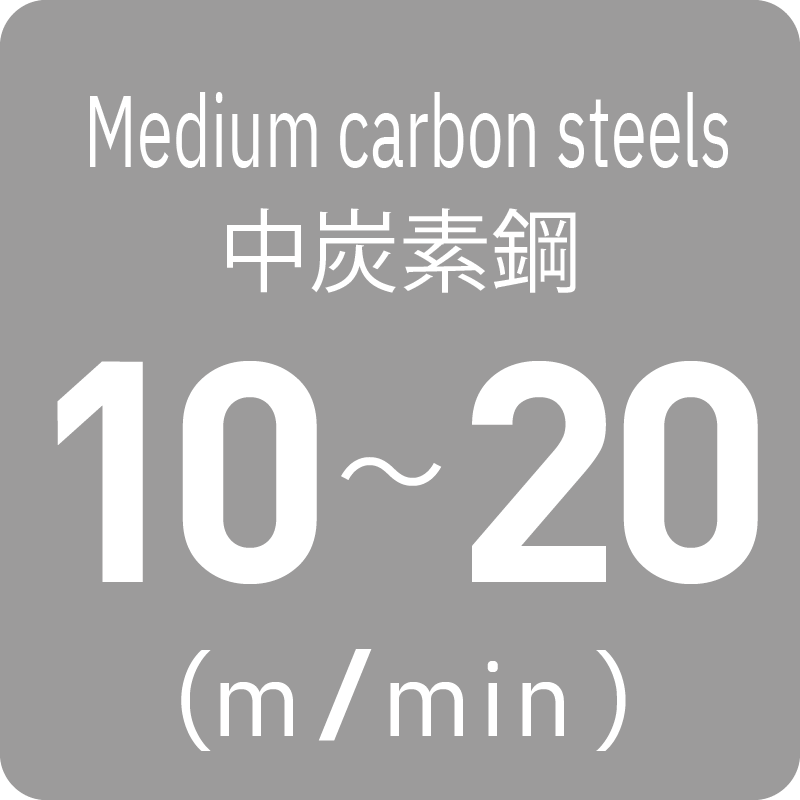

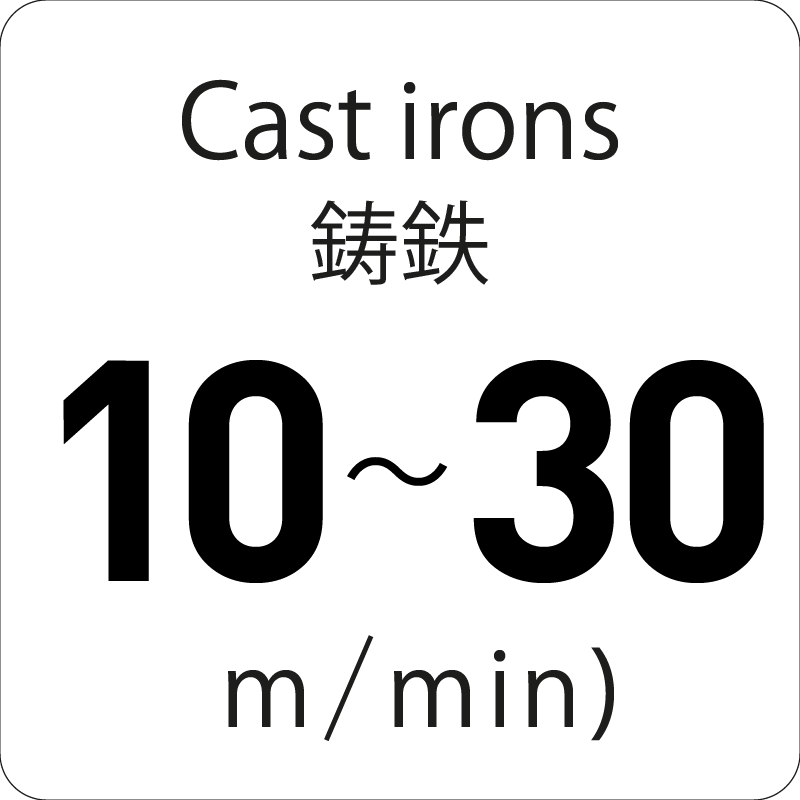

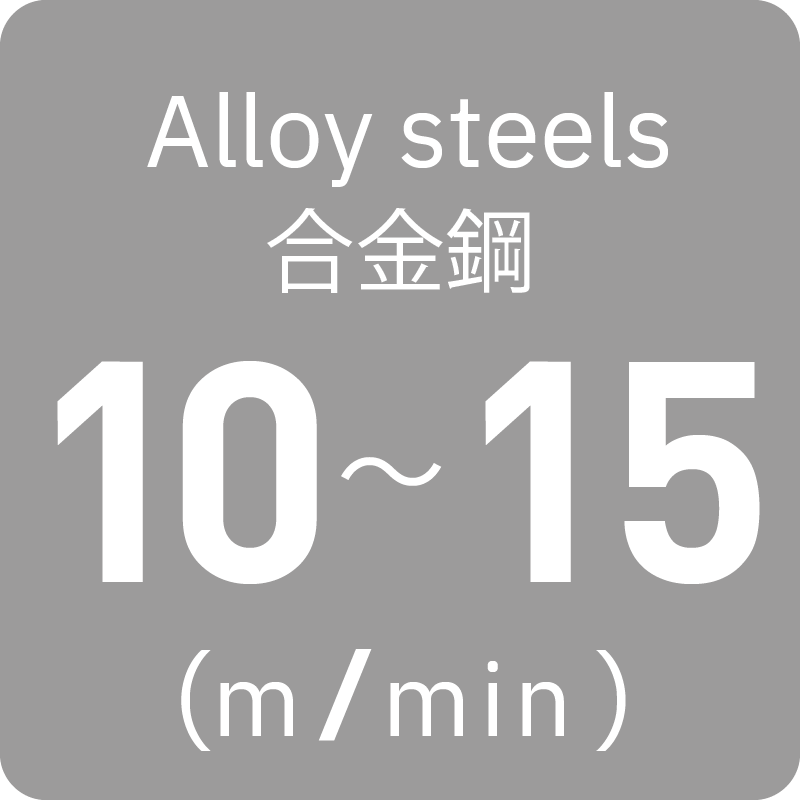

Cutting Speed depending on Materials
Segment：53
|

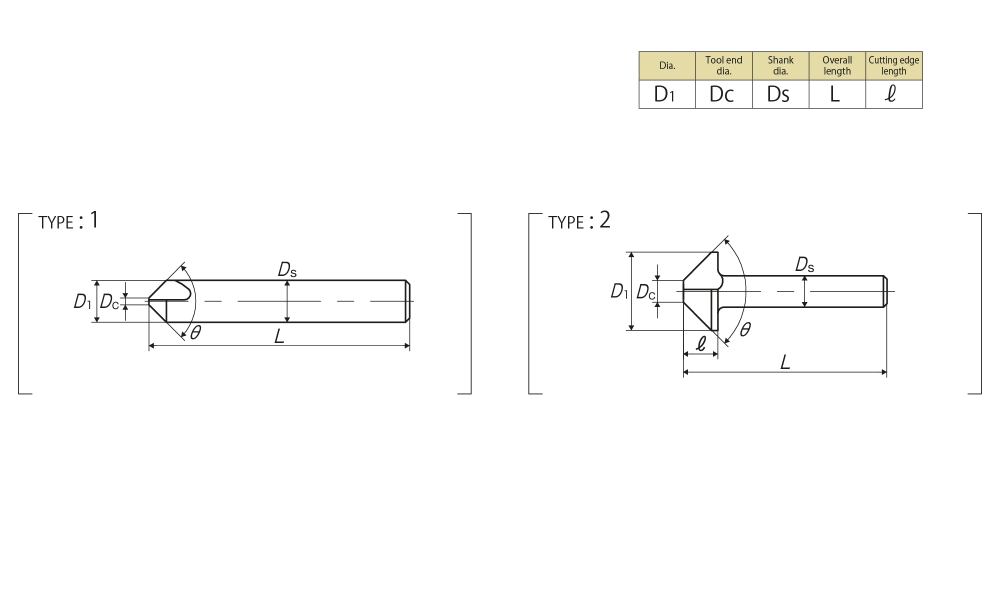

Size D1 × θ ×Ds |
Code |
Dc (mm) |
Ds (mm) |
L (mm) |
ℓ (mm) |
No. of flutes |
TYPE |
|
4 × 90ﾟ × 4 |
CS4.0Q |
0.6 |
4 |
50 |
- |
1 |
1 |
|
6 × 90ﾟ × 6 |
CS6.0Q |
1 |
6 |
50 |
- |
1 |
1 |
|
8 × 90ﾟ × 8 |
CS8.0Q |
1.3 |
8 |
50 |
- |
1 |
1 |
|
10 × 90ﾟ × 8 |
CS010Q |
1.6 |
8 |
46 |
5.5 |
1 |
2 |
|
15 × 90ﾟ × 10 |
CS015Q |
3.2 |
10 |
56 |
7.5 |
1 |
2 |
|
20 × 90ﾟ × 10 |
CS020Q |
4 |
10 |
60 |
10 |
1 |
2 |
|
25 × 90ﾟ × 10 |
CS025Q |
7 |
10 |
65 |
11 |
1 |
2 |
|
30 × 90ﾟ × 12 |
CS030Q |
9 |
12 |
70 |
12.5 |
1 |
2 |
|
35 × 90ﾟ × 12 |
CS035Q |
11 |
12 |
75 |
15 |
1 |
2 |
|
40 × 90ﾟ × 12 |
CS040Q |
12.5 |
12 |
80 |
17 |
1 |
2 |
|
45 × 90ﾟ × 12 |
CS045Q |
14 |
12 |
85 |
18.5 |
1 |
2 |
|
50 × 90ﾟ × 12 |
CS050Q |
16 |
12 |
90 |
20 |
1 |
2 |
|
60 × 90ﾟ × 16 |
CS060Q |
20 |
16 |
100 |
24 |
1 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|
