● CS-QM is suitable for the machining of high accuracy on the chamfering of round hole and on the chamfering of attaching face of screw bolts. Having plural cutting edges, this tool is suitable for drilling machine use.
Specification
Cutting Speed depending on Materials
Segment：53
|

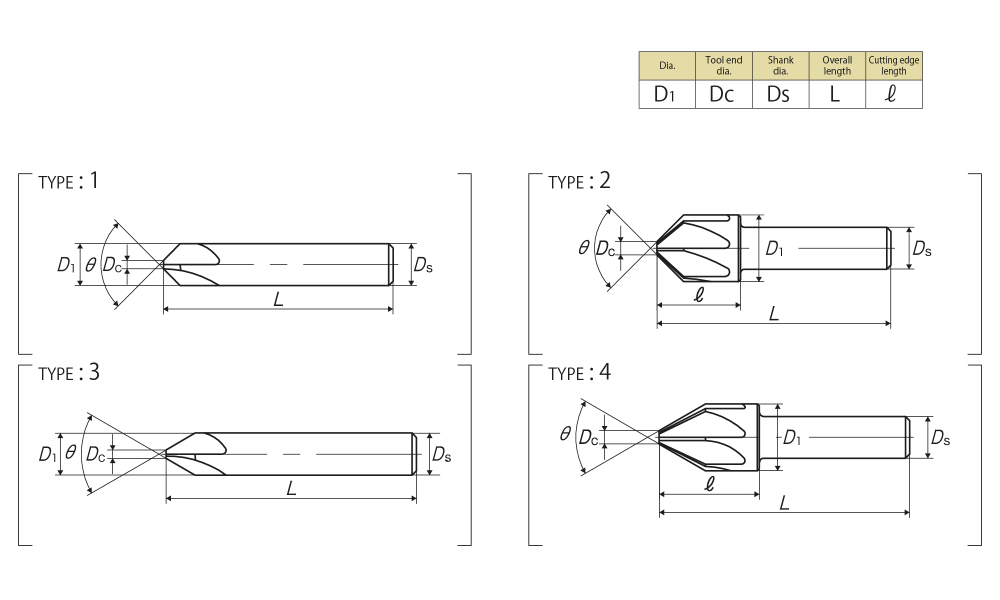

Size D1 × θ ×Ds |
Code |
Dc (mm) |
Ds (mm) |
L (mm) |
ℓ (mm) |
No. of flutes |
TYPE |
|
6 × 90ﾟ × 6 |
CS6.0QM9 |
1.2 |
6 |
42 |
- |
3 |
1 |
|
8 × 90ﾟ × 8 |
CS8.0QM9 |
1.6 |
8 |
44 |
- |
3 |
1 |
|
10 × 90ﾟ × 8 |
CS010QM9 |
2 |
8 |
46 |
14 |
3 |
2 |
|
12 × 90ﾟ × 8 |
CS012QM9 |
2.5 |
8 |
48 |
16 |
5 |
2 |
|
16 × 90ﾟ × 10 |
CS016QM9 |
3.2 |
10 |
56 |
20 |
5 |
2 |
|
20 × 90ﾟ × 10 |
CS020QM9 |
4 |
10 |
60 |
24 |
5 |
2 |
|
25 × 90ﾟ × 10 |
CS025QM9 |
7 |
10 |
65 |
29 |
7 |
2 |
|
30 × 90ﾟ × 12 |
CS030QM9 |
9 |
12 |
68 |
32 |
7 |
2 |
|
35 × 90ﾟ × 12 |
CS035QM9 |
11 |
12 |
70 |
34 |
7 |
2 |
|
40 × 90ﾟ × 12 |
CS040QM9 |
12.5 |
12 |
71 |
35 |
7 |
2 |
|
6 × 60ﾟ × 6 |
CS6.0QM6 |
1.2 |
6 |
46 |
- |
3 |
3 |
|
8 × 60ﾟ × 8 |
CS8.0QM6 |
1.6 |
8 |
48 |
- |
3 |
3 |
|
10 × 60ﾟ × 8 |
CS010QM6 |
2 |
8 |
50 |
18 |
3 |
4 |
|
12 × 60ﾟ × 8 |
CS012QM6 |
2.5 |
8 |
52 |
20 |
5 |
4 |
|
16 × 60ﾟ × 10 |
CS016QM6 |
3.2 |
10 |
60 |
24 |
5 |
4 |
|
20 × 60ﾟ × 10 |
CS020QM6 |
4 |
10 |
64 |
28 |
5 |
4 |
|
25 × 60ﾟ × 10 |
CS025QM6 |
7 |
10 |
69 |
33 |
7 |
4 |
|
30 × 60ﾟ × 12 |
CS030QM6 |
9 |
12 |
76 |
40 |
7 |
4 |
|
35 × 60ﾟ × 12 |
CS035QM6 |
11 |
12 |
79 |
43 |
7 |
4 |
|
40 × 60ﾟ × 12 |
CS040QM6 |
12.5 |
12 |
81 |
45 |
7 |
4 |
