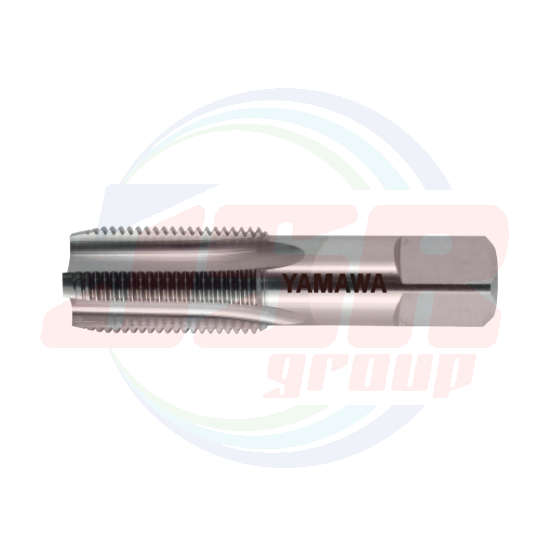

CT-PF (Pipe Threads) | Carbide Taps for Parallel Pipe Threads | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 4,931.78
พร้อมส่ง
SKU
CT-PF (Pipe Threads)
- CT-PF is suitable for hard and abrasive materials such as cast irons.
Specification

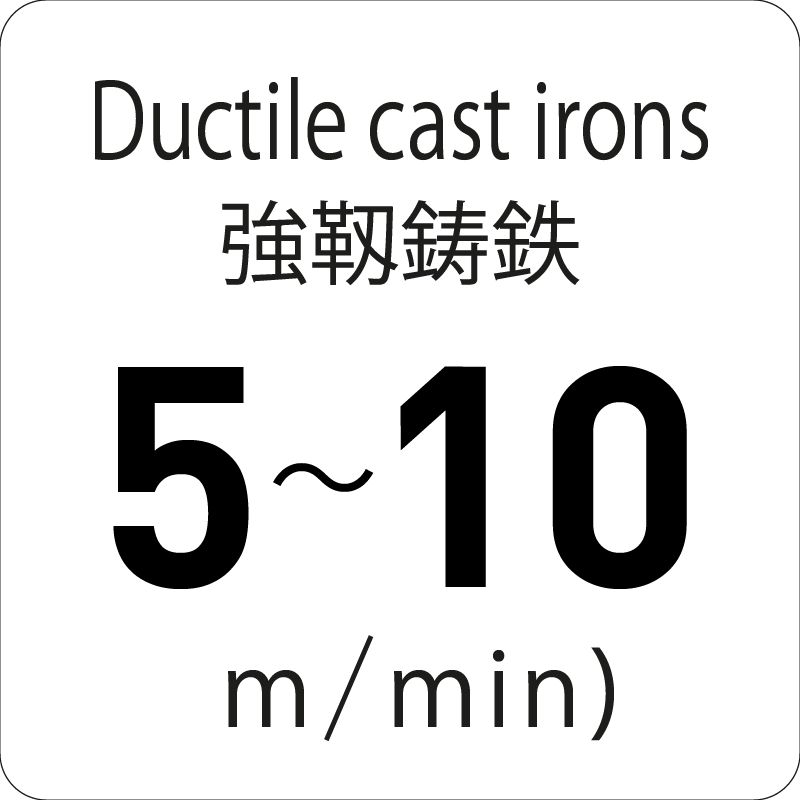

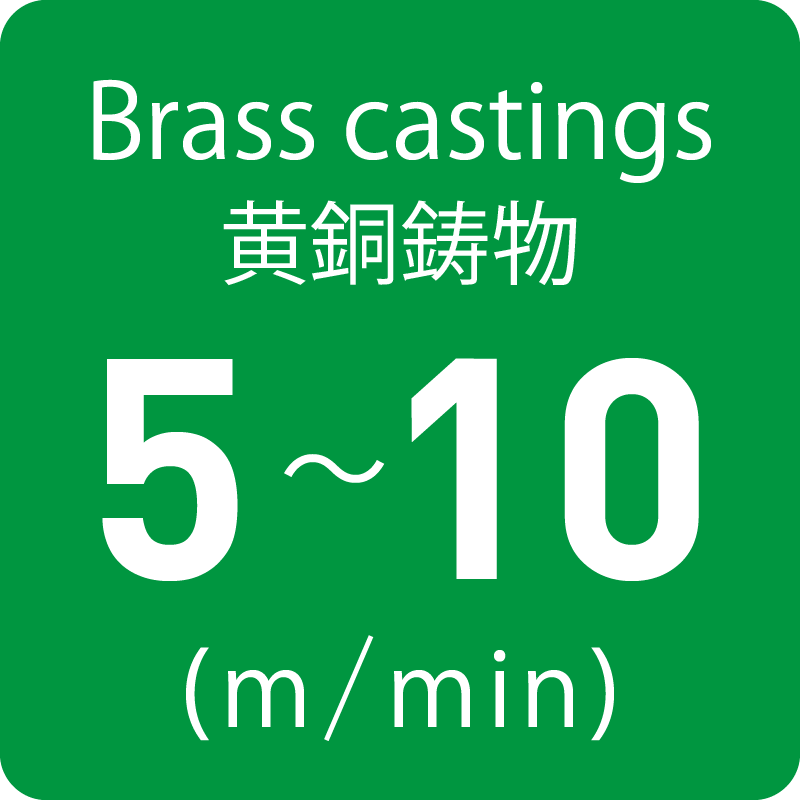

Tapping Speeds depending on Materials
Segment：1L
|

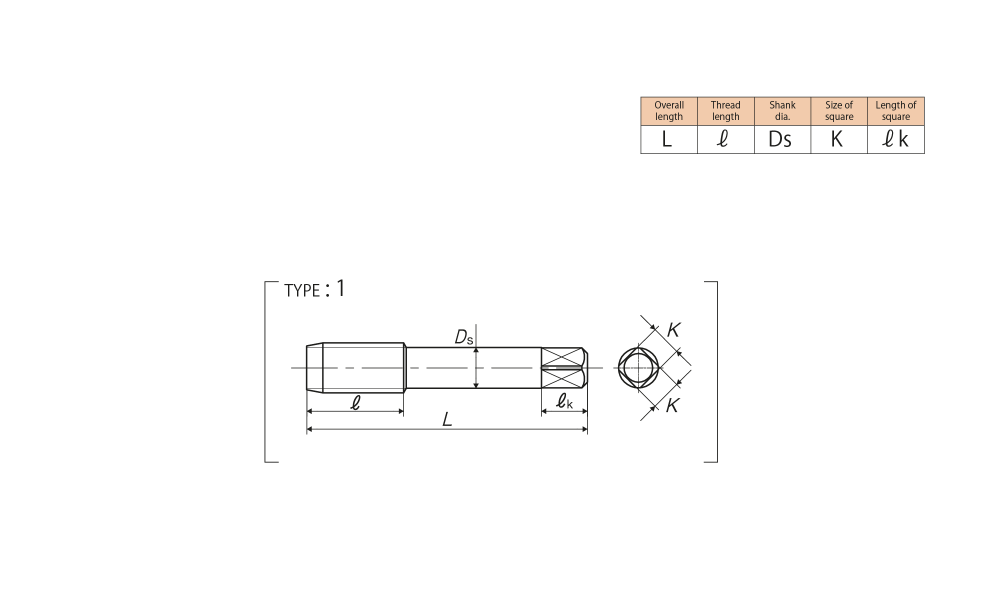

Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
|||||||||||
|
PF 1/8-28 |
Ⅱ |
TCPF02K |
3.5P |
9.728 |
55 |
19 |
8 |
6 |
9 |
4 |
1 |
|
PF 1/4-19 |
Ⅱ |
TCPF04- |
3.5P |
13.157 |
62 |
28 |
11 |
9 |
12 |
4 |
1 |
|
PF 3/8-19 |
Ⅱ |
TCPF06- |
3.5P |
16.662 |
65 |
28 |
14 |
11 |
14 |
4 |
1 |
|
PF 1/2-14 |
Ⅱ |
TCPF08Q |
3.5P |
20.955 |
80 |
35 |
18 |
14 |
17 |
4 |
1 |
|
PF 3/4-14 |
Ⅱ |
TCPF12Q |
3.5P |
26.441 |
85 |
35 |
23 |
17 |
20 |
4 |
1 |
|
PF 1 -11 |
Ⅱ |
TCPF16U |
3.5P |
33.249 |
95 |
45 |
26 |
21 |
24 |
4 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
