CT-PS (Pipe Threads) | Carbide Taps for Parallel Pipe Threads | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 4,931.78
พร้อมส่ง
SKU
CT-PS (Pipe Threads)
- The CT-PS is a cemented carbide hand tap for parallel pipe threads and is suitable for thread processing of hard and brittle material such as cast iron. It is used on products whose main purpose is the tightness of the threaded part in connection with pipe parts etc. The PS internal thread is used for fitting with PT external thread.

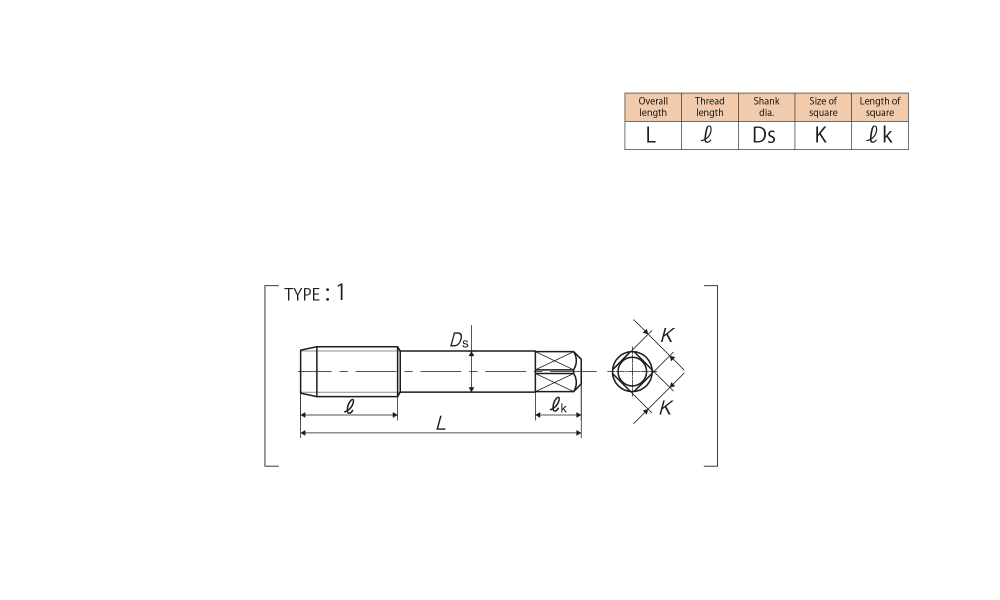

Specification
Tapping Speeds depending on Materials
Segment：1L
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
|||||||||||
|
PS 1/8-28 |
Ⅱ |
TCPS02K |
3.5P |
9.728 |
55 |
19 |
8 |
6 |
9 |
4 |
1 |
|
PS 1/4-19 |
Ⅱ |
TCPS04- |
3.5P |
13.157 |
62 |
28 |
11 |
9 |
12 |
4 |
1 |
|
PS 3/8-19 |
Ⅱ |
TCPS06- |
3.5P |
16.662 |
65 |
28 |
14 |
11 |
14 |
4 |
1 |
|
PS 1/2-14 |
Ⅱ |
TCPS08Q |
3.5P |
20.955 |
80 |
35 |
18 |
14 |
17 |
4 |
1 |
|
PS 3/4-14 |
Ⅱ |
TCPS12Q |
3.5P |
26.441 |
85 |
35 |
23 |
17 |
20 |
4 |
1 |
|
PS 1 -11 |
Ⅱ |
TCPS16U |
3.5P |
33.249 |
95 |
45 |
26 |
21 |
24 |
5 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
