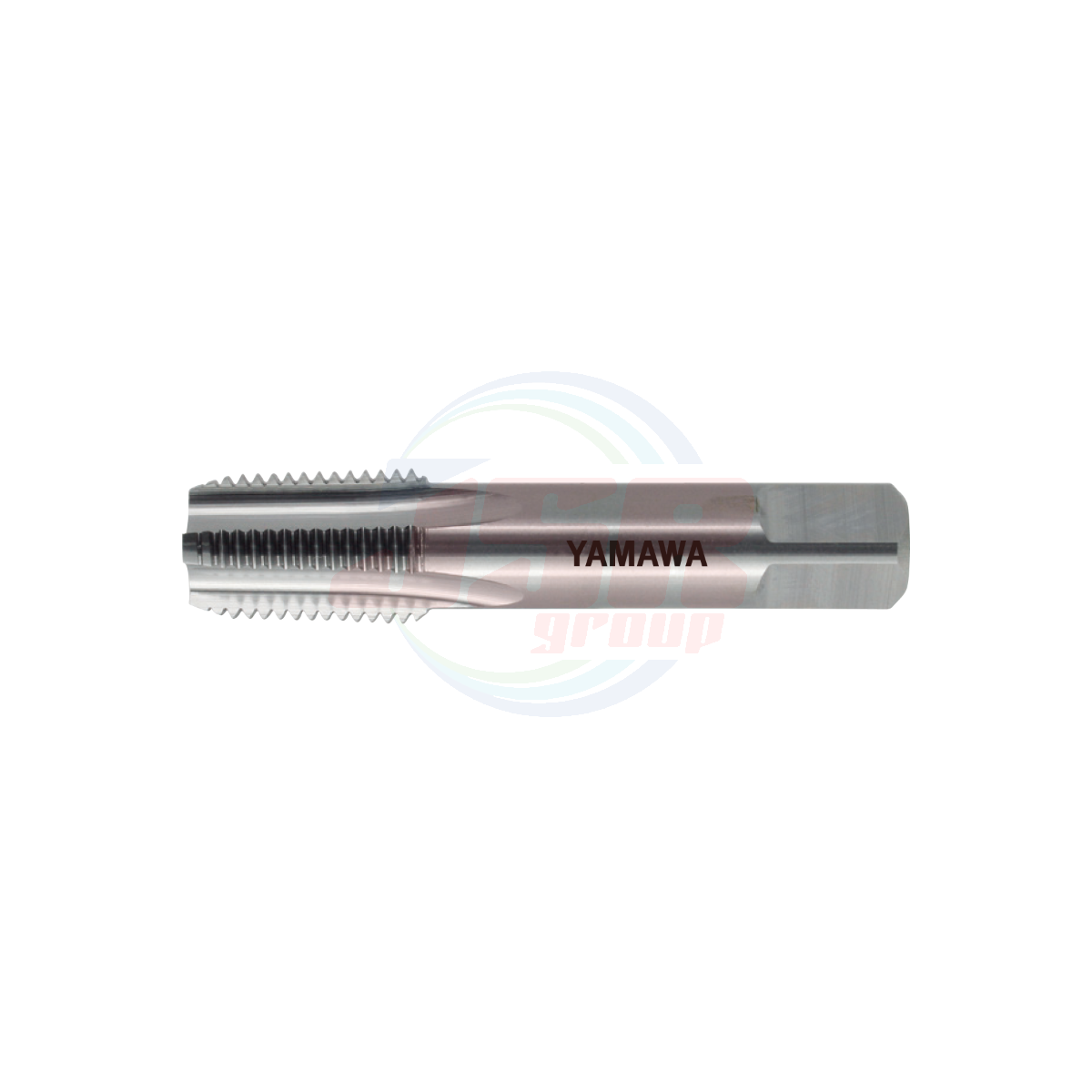

CT-S-PT 3/8-19(TCST06-) | Carbide Taps for Taper Pipe Threads, Short (ℓg) Type, for Cast Irons | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 11,218.69
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
TCST06-
QTY:
1
- The CT-S-PT is a hand tap for tapered pipe threads and is suitable for thread processing in mass produced hard and brittle material such as cast iron. It is used for tapping when the fitting length needs to be shortened. It produces a threaded product whose main purpose is the tightness of the threaded parts.
Specification
Tapping Speeds depending on Materials
Segment：1L
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
||||||||||||
|
PT 1/8-28 |
Ⅱ |
TCST02K |
2.5P |
9.728 |
55 |
16.5 |
10.5 |
8 |
6 |
9 |
4 |
1 |
|
PT 1/4-19 |
Ⅱ |
TCST04- |
2.5P |
13.157 |
62 |
19.5 |
12.5 |
11 |
9 |
12 |
4 |
1 |
|
PT 3/8-19 |
Ⅱ |
TCST06- |
2.5P |
16.662 |
65 |
21 |
14 |
14 |
11 |
14 |
4 |
1 |
|
PT 1/2-14 |
Ⅱ |
TCST08Q |
2.5P |
20.955 |
80 |
27 |
17 |
18 |
14 |
17 |
4 |
1 |
|
PT 3/4-14 |
Ⅱ |
TCST12Q |
2.5P |
26.441 |
85 |
29 |
19 |
23 |
17 |
20 |
4 |
1 |
|
PT 1 -11 |
Ⅱ |
TCST16U |
2.5P |
33.249 |
95 |
35 |
22 |
26 |
21 |
24 |
5 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | PT 3/8-19 (TCST06-) |
| Model | CT-S-PT |
| Size | 3/8-19 |
| Class | Ⅱ |
| Chamfer | 2.5P |
| Overall length (L) | 65 |
| Thread length (ℓ) | 21 |
| Shank dia. (Ds) | 14 |
| Size of Square (K) | 11 |
| Length of square (ℓk) | 14 |
