CT-S-PT (Pipe Threads) | Carbide Taps for Taper Pipe Threads, Short (ℓg) Type, for Cast Irons | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 5,800.00
พร้อมส่ง
SKU
CT-S-PT (Pipe Threads)
- The CT-S-PT is a hand tap for tapered pipe threads and is suitable for thread processing in mass produced hard and brittle material such as cast iron. It is used for tapping when the fitting length needs to be shortened. It produces a threaded product whose main purpose is the tightness of the threaded parts.

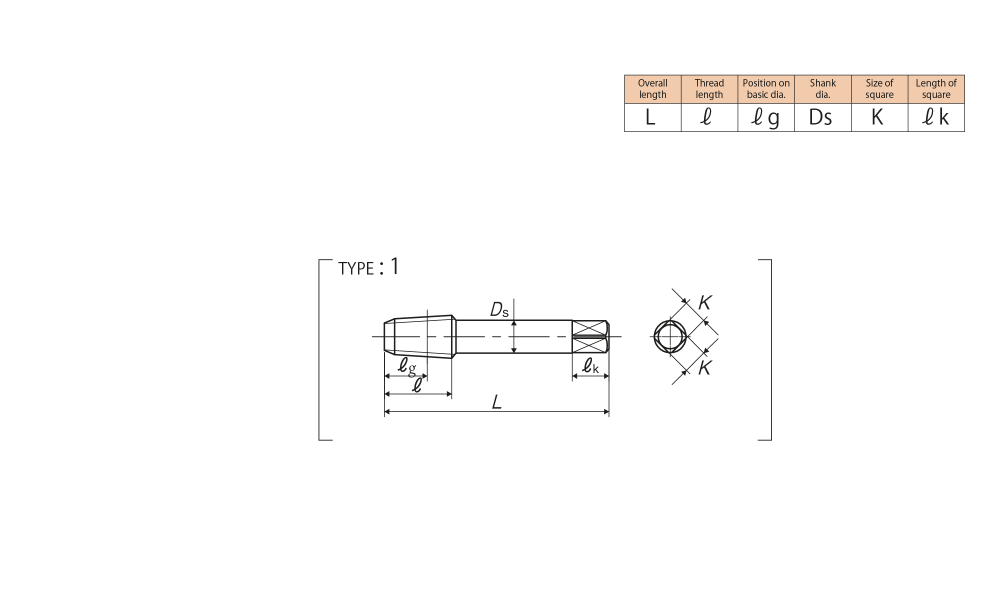

Specification
Tapping Speeds depending on Materials
Segment：1L
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
||||||||||||
|
PT 1/8-28 |
Ⅱ |
TCST02K |
2.5P |
9.728 |
55 |
16.5 |
10.5 |
8 |
6 |
9 |
4 |
1 |
|
PT 1/4-19 |
Ⅱ |
TCST04- |
2.5P |
13.157 |
62 |
19.5 |
12.5 |
11 |
9 |
12 |
4 |
1 |
|
PT 3/8-19 |
Ⅱ |
TCST06- |
2.5P |
16.662 |
65 |
21 |
14 |
14 |
11 |
14 |
4 |
1 |
|
PT 1/2-14 |
Ⅱ |
TCST08Q |
2.5P |
20.955 |
80 |
27 |
17 |
18 |
14 |
17 |
4 |
1 |
|
PT 3/4-14 |
Ⅱ |
TCST12Q |
2.5P |
26.441 |
85 |
29 |
19 |
23 |
17 |
20 |
4 |
1 |
|
PT 1 -11 |
Ⅱ |
TCST16U |
2.5P |
33.249 |
95 |
35 |
22 |
26 |
21 |
24 |
5 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
