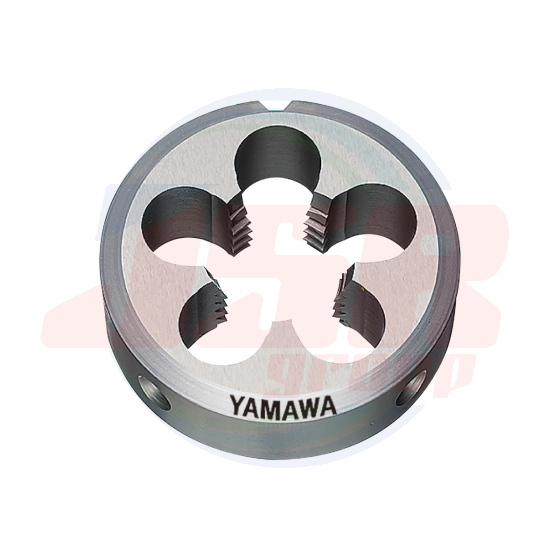

D 4NC40 (TYEUN4HDNEBC) | Solid Round Dies | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 1,474.77
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
TYEUN4HDNEBC
QTY:
1
Product Features
New Solid Round Dies-D are born, with improved accuracy of run-out tolerance.
The Solid Round Dies-D, realize consistent thread cutting by adopting HSS material.
| ① The side with markings on its bevel, is the front face.This makes it easy to determine the cutting direction. |
 |
| ② The rear face becomes the base for cutting. The rear face has a recess so that the die can fit tightly in the die holder when installing. ・ Solid Round Dies-D cannot be used from Rear face. |
 |
| ③ D is solid type and does not need the adjusting screw. Compared with adjustable type, accuracy of D's outside diameter has been greatly improved. |
 |
| ④ D has succeeded in solving difficult problems related to adjustable dies and achieved the high precision cutting of external threads. |
 |
※ External threads cut by Solid Round Dies-D
have less tears and stripes on thread flank face.
Cutting condition
Die size［DⅡ M６×１（20）］
| Work material | Free cutting steel |
| Cutting speed | 2.６m/min |
| Feed | Free |
| Machine | Engine lathe |
| Cutting Fluid | Non-water soluble cutting oil |
Specification
Front face
Tapping Speeds depending on Materials
Segment：30
|
Size |
Class |
Code |
D (mm) |
T (mm) |
Clearance holes |
TYPE |
|
For Unified Threads |
||||||
|
No.0-80UNF |
Ⅱ |
TYDUN0BDNEBC |
16 |
5 |
3 |
1 |
|
No.0-80UNF |
Ⅱ |
TYEUN0BDNEBC |
20 |
7 |
3 |
1 |
|
No.1-64UNC |
Ⅱ |
TYEUN1DDNEBC |
20 |
7 |
3 |
1 |
|
No.1-72UNF |
Ⅱ |
TYEUN1CDNEBC |
20 |
7 |
3 |
1 |
|
No.2-56UNC |
Ⅱ |
TYDUN2EDNEBC |
16 |
5 |
3 |
1 |
|
No.2-56UNC |
Ⅱ |
TYEUN2EDNEBC |
20 |
7 |
3 |
1 |
|
No.2-64UNF |
Ⅱ |
TYEUN2DDNEBC |
20 |
7 |
3 |
1 |
|
No.3-48UNC |
Ⅱ |
TYEUN3FDNEBC |
20 |
7 |
3 |
1 |
|
No.3-56UNF |
Ⅱ |
TYEUN3EDNEBC |
20 |
7 |
3 |
1 |
|
No.4-40UNC |
Ⅱ |
TYEUN4HDNEBC |
20 |
7 |
3 |
1 |
|
No.4-48UNF |
Ⅱ |
TYEUN4FDNEBC |
20 |
7 |
3 |
1 |
|
No.5-40UNC |
Ⅱ |
TYEUN5HDNEBC |
20 |
7 |
3 |
1 |
|
No.5-44UNF |
Ⅱ |
TYEUN5GDNEBC |
20 |
7 |
3 |
1 |
|
No.6-32UNC |
Ⅱ |
TYEUN6JDNEBC |
20 |
7 |
3 |
1 |
|
No.6-40UNF |
Ⅱ |
TYEUN6HDNEBC |
20 |
7 |
3 |
1 |
|
No.8-32UNC |
Ⅱ |
TYEUN8JDNEBC |
20 |
7 |
3 |
1 |
|
No.8-36UNF |
Ⅱ |
TYEUN8IDNEBC |
20 |
7 |
3 |
1 |
|
No.10-24UNC |
Ⅱ |
TYEUNAMDNEBC |
20 |
7 |
4 |
1 |
|
No.10-32UNF |
Ⅱ |
TYEUNAJDNEBC |
20 |
7 |
4 |
1 |
|
No.12-24UNC |
Ⅱ |
TYEUNCMDNEBC |
20 |
7 |
4 |
1 |
|
No.12-28UNF |
Ⅱ |
TYEUNCKDNEBC |
20 |
7 |
4 |
1 |
|
1/4-20UNC |
Ⅱ |
TYEU04NDNEBC |
20 |
7 |
4 |
1 |
|
1/4-20UNC |
Ⅱ |
TYGU04NDNEBC |
25 |
9 |
4 |
1 |
|
1/4-28UNF |
Ⅱ |
TYEU04KDNEBC |
20 |
7 |
4 |
1 |
|
1/4-28UNF |
Ⅱ |
TYGU04KDNEBC |
25 |
9 |
4 |
1 |
|
1/4-32UNEF |
Ⅱ |
TYGU04JDNEBC |
25 |
9 |
4 |
1 |
|
1/4-36UNS |
Ⅱ |
TYGU04IDNEBC |
25 |
9 |
4 |
1 |
|
5/16-18UNC |
Ⅱ |
TYGU05ODNEBC |
25 |
9 |
4 |
1 |
|
5/16-18UNC |
Ⅱ |
TYJU05ODNEBC |
38 |
13 |
4 |
1 |
|
5/16-24UNF |
Ⅱ |
TYGU05MDNEBC |
25 |
9 |
4 |
1 |
|
5/16-24UNF |
Ⅱ |
TYJU05MDNEBC |
38 |
13 |
4 |
1 |
|
5/16-32UNEF |
Ⅱ |
TYGU05JDNEBC |
25 |
9 |
4 |
1 |
|
3/8-16UNC |
Ⅱ |
TYGU06PDNEBC |
25 |
9 |
5 |
1 |
|
3/8-16UNC |
Ⅱ |
TYJU06PDNEBC |
38 |
13 |
4 |
1 |
|
3/8-24UNF |
Ⅱ |
TYGU06MDNEBC |
25 |
9 |
5 |
1 |
|
3/8-24UNF |
Ⅱ |
TYJU06MDNEBC |
38 |
13 |
4 |
1 |
|
3/8-32UNEF |
Ⅱ |
TYGU06JDNEBC |
25 |
9 |
5 |
1 |
|
7/16-14UNC |
Ⅱ |
TYJU07QDNEBC |
38 |
13 |
4 |
1 |
|
7/16-20UNF |
Ⅱ |
TYJU07NDNEBC |
38 |
13 |
4 |
1 |
|
7/16-24UNS |
Ⅱ |
TYJU07MDNEBC |
38 |
13 |
4 |
1 |
|
7/16-28UNEF |
Ⅱ |
TYJU07KDNEBC |
38 |
13 |
4 |
1 |
|
1/2-13UNC |
Ⅱ |
TYJU08RDNEBC |
38 |
13 |
4 |
1 |
|
1/2-13UNC |
Ⅱ |
TYMU08RDNEBC |
50 |
16 |
4 |
1 |
|
1/2-20UNF |
Ⅱ |
TYJU08NDNEBC |
38 |
13 |
4 |
1 |
|
1/2-20UNF |
Ⅱ |
TYMU08NDNEBC |
50 |
16 |
4 |
1 |
|
1/2-28UNEF |
Ⅱ |
TYJU08KDNEBC |
38 |
13 |
4 |
1 |
|
9/16-12UNC |
Ⅱ |
TYJU09SDNEBC |
38 |
13 |
5 |
1 |
|
9/16-18UNF |
Ⅱ |
TYJU09ODNEBC |
38 |
13 |
5 |
1 |
|
9/16-20UN |
Ⅱ |
TYJU09NDNEBC |
38 |
13 |
5 |
1 |
|
9/16-24UNEF |
Ⅱ |
TYJU09MDNEBC |
38 |
13 |
5 |
1 |
|
5/8-11UNC |
Ⅱ |
TYJU10UDNEBC |
38 |
13 |
5 |
1 |
|
5/8-11UNC |
Ⅱ |
TYMU10UDNEBC |
50 |
16 |
4 |
1 |
|
5/8-18UNF |
Ⅱ |
TYJU10ODNEBC |
38 |
13 |
5 |
1 |
|
5/8-18UNF |
Ⅱ |
TYMU10ODNEBC |
50 |
16 |
4 |
1 |
|
5/8-24UNEF |
Ⅱ |
TYJU10MDNEBC |
38 |
13 |
5 |
1 |
|
3/4-10UNC |
Ⅱ |
TYMU12VDNEBC |
50 |
16 |
5 |
1 |
|
3/4-16UNF |
Ⅱ |
TYMU12PDNEBC |
50 |
16 |
5 |
1 |
|
3/4-20UNEF |
Ⅱ |
TYMU12NDNEBC |
50 |
16 |
5 |
1 |
|
7/8-9UNC |
Ⅱ |
TYMU14WDNEBC |
50 |
16 |
6 |
1 |
|
7/8-14UNF |
Ⅱ |
TYMU14QDNEBC |
50 |
16 |
6 |
1 |
|
1 -8UNC |
Ⅱ |
TYMU16XDNEBC |
50 |
16 |
6 |
1 |
|
1 -12UNF |
Ⅱ |
TYMU16SDNEBC |
50 |
16 |
6 |
1 |
|
1 -14UNS |
Ⅱ |
TYMU16QDNEBC |
50 |
16 |
6 |
1 |
|
1 -20UNEF |
Ⅱ |
TYMU16NDNEBC |
50 |
16 |
6 |
1 |
|
1 1/8-7UNC |
Ⅱ |
TYRU18YDNEBC |
63 |
20 |
6 |
2 |
|
1 1/8-8UN |
Ⅱ |
TYRU18XDNEBC |
63 |
20 |
6 |
2 |
|
1 1/8-12UNF |
Ⅱ |
TYRU18SDNEBC |
63 |
20 |
6 |
2 |
|
1 1/4-7UNC |
Ⅱ |
TYRU20YDNEBC |
63 |
20 |
6 |
2 |
|
1 1/4-8UN |
Ⅱ |
TYRU20XDNEBC |
63 |
20 |
6 |
2 |
|
1 1/4-12UNF |
Ⅱ |
TYRU20SDNEBC |
63 |
20 |
6 |
2 |
|
1 3/8-6UNC |
Ⅱ |
TYUU22ZDNEBC |
75 |
25 |
6 |
2 |
|
1 3/8-12UNF |
Ⅱ |
TYUU22SDNEBC |
75 |
25 |
6 |
2 |
|
1 1/2-6UNC |
Ⅱ |
TYUU24ZDNEBC |
75 |
25 |
6 |
2 |
|
1 1/2-8UN |
Ⅱ |
TYUU24XDNEBC |
75 |
25 |
6 |
2 |
|
1 1/2-12UNF |
Ⅱ |
TYUU24SDNEBC |
75 |
25 |
6 |
2 |
|
1 5/8-12UN |
Ⅱ |
TYUU26SDNEBC |
75 |
25 |
8 |
2 |
|
1 3/4-5UNC |
Ⅱ |
TYUU28ODNEBC |
75 |
25 |
8 |
2 |
|
1 3/4-12UN |
Ⅱ |
TYUU28SDNEBC |
75 |
25 |
8 |
2 |
|
2 -12UN |
Ⅱ |
TYUU32SDNEBC |
75 |
25 |
8 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | No.4-40UNC (TYEUN4HDNEBC) |
| Model | D |
| Size | No.4-40UNC |
| Class | Ⅱ |
เขียนรีวิวสินค้าของคุณเอง
