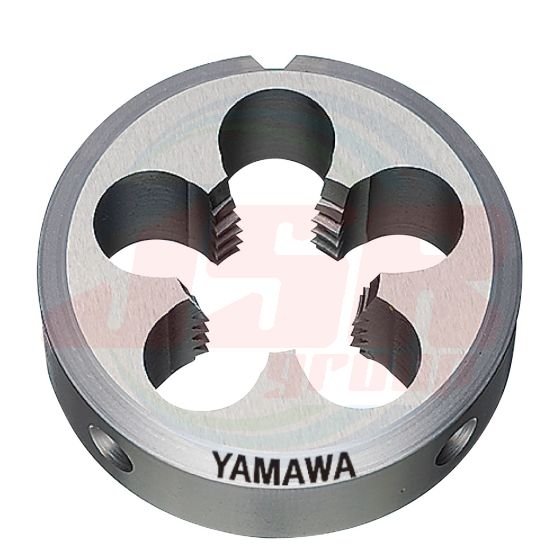

D LH (Unified Threads) | Solid Round Dies for Left Hand Threads | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 2,385.05
พร้อมส่ง
SKU
D LH (Unified Threads)
- Solid round dies for left hand thread processing with improved runout accuracy.
Specification
Front face
Tapping Speeds depending on Materials
Segment：30
|
Size |
Class |
Code |
D (mm) |
T (mm) |
Clearance holes |
TYPE |
|
For Unified Threads |
||||||
|
1/4-20UNC |
Ⅱ |
GYGU04NDNEBC |
25 |
9 |
4 |
1 |
|
1/4-28UNF |
Ⅱ |
GYGU04KDNEBC |
25 |
9 |
4 |
1 |
|
5/16-18UNC |
Ⅱ |
GYGU05ODNEBC |
25 |
9 |
4 |
1 |
|
5/16-24UNF |
Ⅱ |
GYGU05MDNEBC |
25 |
9 |
4 |
1 |
|
3/8-16UNC |
Ⅱ |
GYGU06PDNEBC |
25 |
9 |
5 |
1 |
|
3/8-24UNF |
Ⅱ |
GYGU06MDNEBC |
25 |
9 |
5 |
1 |
|
3/8-24UNF |
Ⅱ |
GYJU06MDNEBC |
38 |
13 |
4 |
1 |
|
7/16-20UNF |
Ⅱ |
GYJU07NDNEBC |
38 |
13 |
4 |
1 |
|
1/2-13UNC |
Ⅱ |
GYJU08RDNEBC |
38 |
13 |
4 |
1 |
|
1/2-20UNF |
Ⅱ |
GYJU08NDNEBC |
38 |
13 |
4 |
1 |
|
9/16-12UNC |
Ⅱ |
GYJU09SDNEBC |
38 |
13 |
5 |
1 |
|
9/16-18UNF |
Ⅱ |
GYJU09ODNEBC |
38 |
13 |
5 |
1 |
|
5/8-11UNC |
Ⅱ |
GYMU10UDNEBC |
50 |
16 |
4 |
1 |
|
5/8-18UNF |
Ⅱ |
GYMU10ODNEBC |
50 |
16 |
4 |
1 |
|
3/4-10UNC |
Ⅱ |
GYMU12VDNEBC |
50 |
16 |
5 |
1 |
|
3/4-16UNF |
Ⅱ |
GYMU12PDNEBC |
50 |
16 |
5 |
1 |
|
7/8-9UNC |
Ⅱ |
GYMU14WDNEBC |
50 |
16 |
6 |
1 |
|
7/8-14UNF |
Ⅱ |
GYMU14QDNEBC |
50 |
16 |
6 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
