D NPSM (NPSM Threads) | Solid Round Dies for American Parallel Pipe Threads | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 2,228.04
พร้อมส่ง
SKU
D NPSM (NPSM Threads)
- The D NPSM is a solid round dies for parallel external thread processing of American tapered pipe threads that have improved die runout accuracy.
Specification

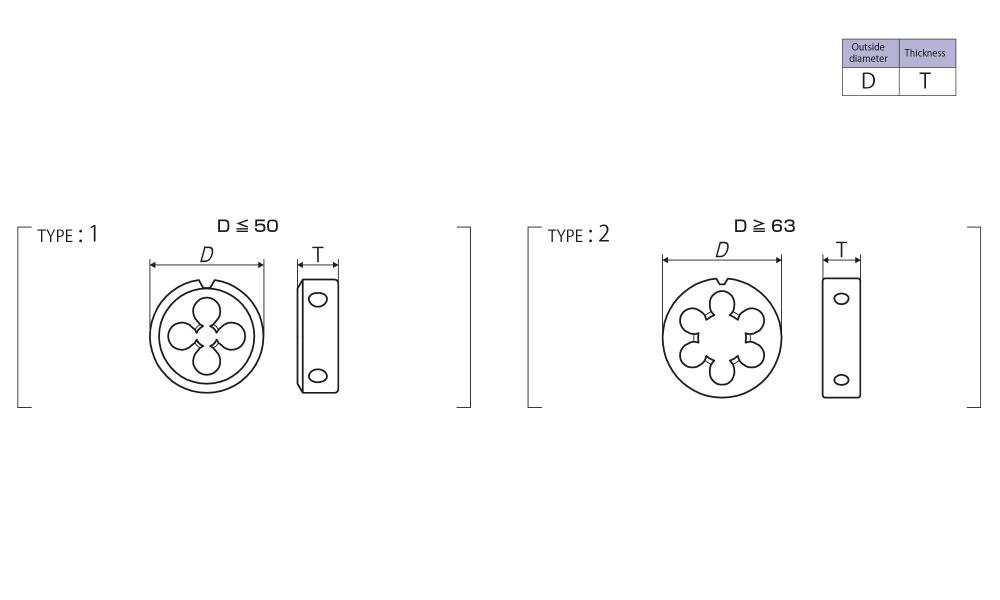

Front face

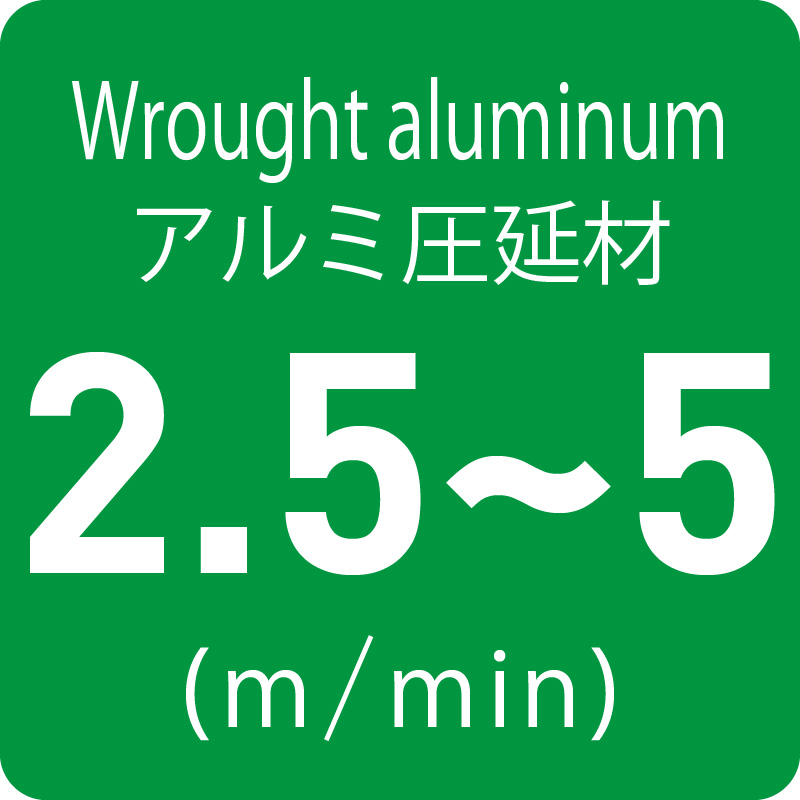

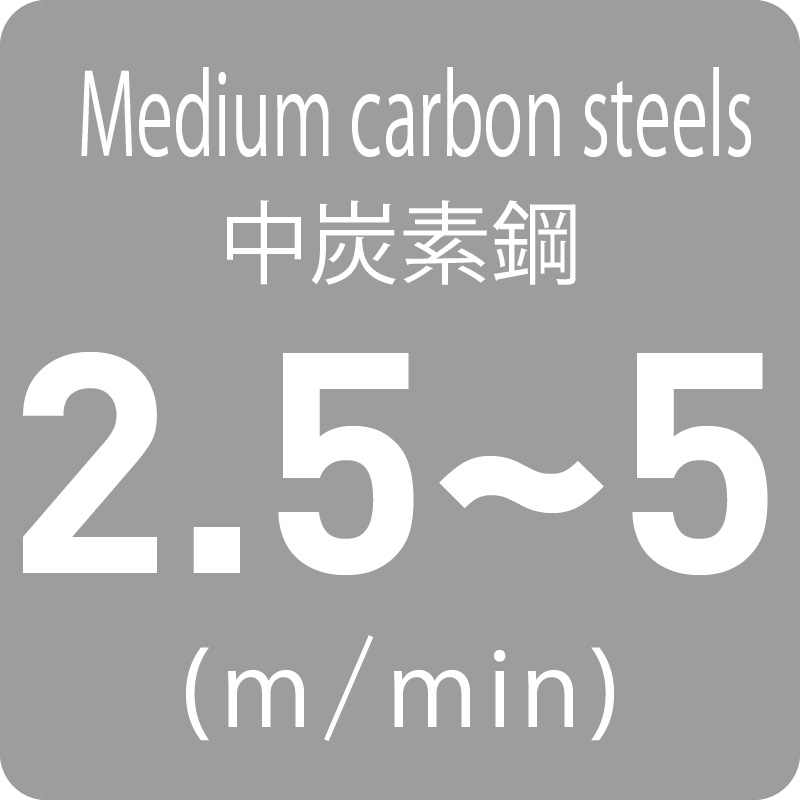

Tapping Speeds depending on Materials
Segment：3G
|
Size |
Code |
D (mm) |
T (mm) |
Clearance holes |
TYPE |
|
For NPSM Threads |
|||||
|
1/16-27 NPSM |
TYJSM010NEBC |
38 |
13 |
4 |
1 |
|
1/8-27 NPSM |
TYJSM020NEBC |
38 |
13 |
4 |
1 |
|
1/4-18 NPSM |
TYJSM040NEBC |
38 |
13 |
5 |
1 |
|
3/8-18 NPSM |
TYMSM060NEBC |
50 |
16 |
5 |
1 |
|
1/2-14 NPSM |
TYMSM080NEBC |
50 |
16 |
5 |
1 |
|
3/4-14 NPSM |
TYRSM120NEBC |
63 |
20 |
6 |
2 |
|
1 -11 1/2 NPSM |
TYUSM160NEBC |
75 |
25 |
6 |
2 |
|
1 1/4-11 1/2 NPSM |
TYUSM200NEBC |
75 |
25 |
8 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|
