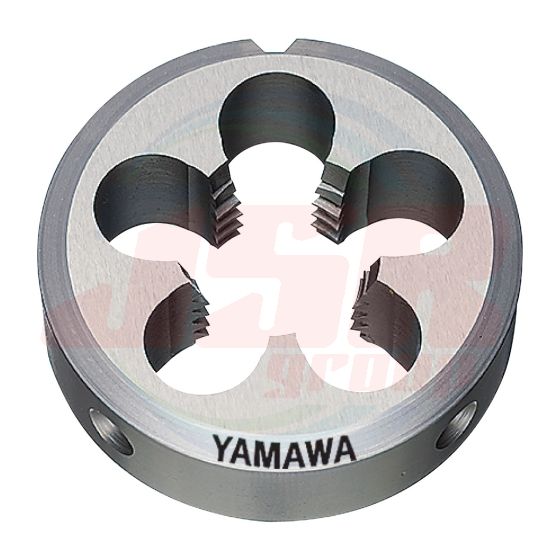

D NPT (NPT Threads) | Solid Round Dies for American Taper Pipe Threads | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 3,279.44
พร้อมส่ง
SKU
D NPT (NPT Threads)
- The D NPT are solid round dies for American external tapered pipe threads with improved runout accuracy.
Specification
Front face

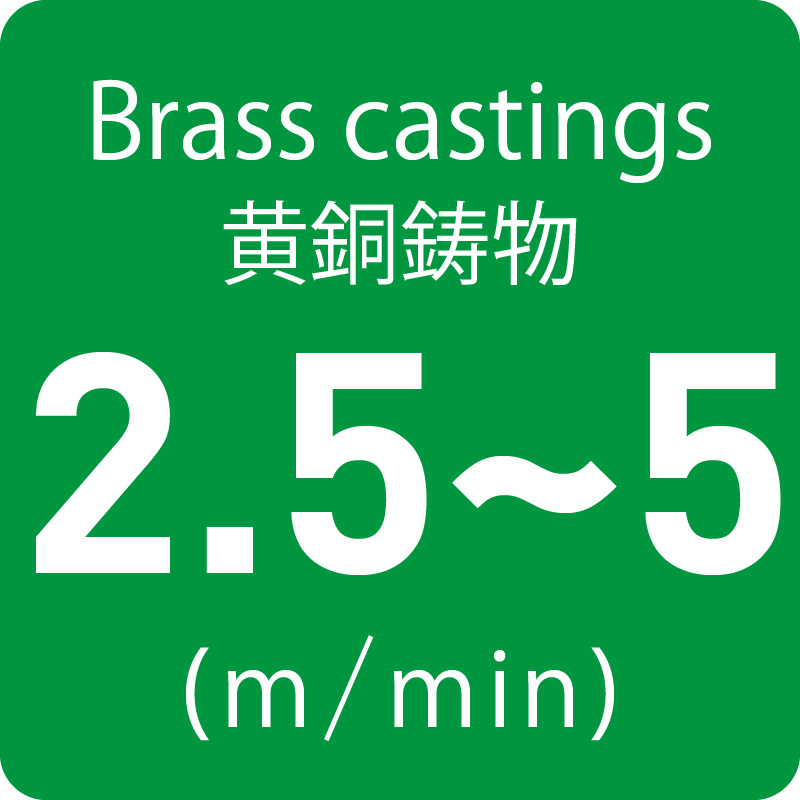

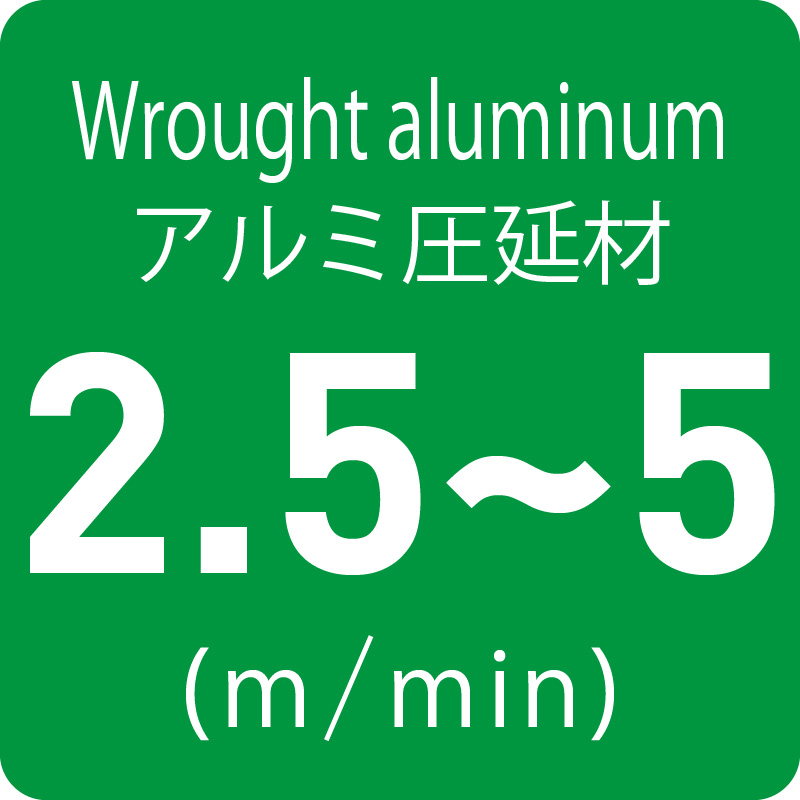

Tapping Speeds depending on Materials
Segment：3G
|

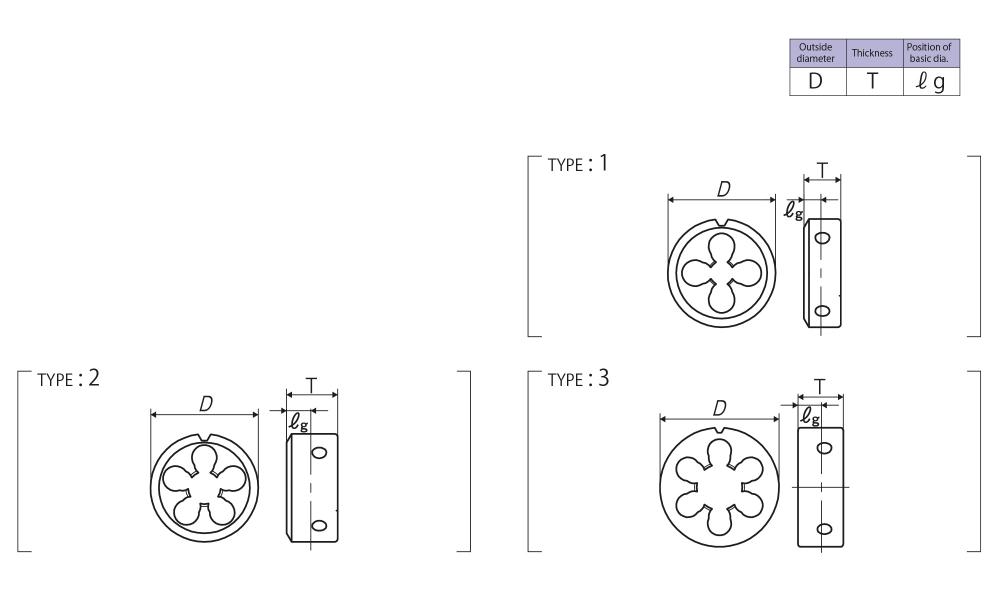

Size |
Code |
D (mm) |
T (mm) |
ℓg (mm) |
Clearance holes |
TYPE |
|
For NPT Threads |
||||||
|
1/16-27 NPT |
TYJNT010NEBC |
38 |
13 |
5 |
4 |
1 |
|
1/8-27 NPT |
TYJNT020NEBC |
38 |
13 |
5 |
4 |
1 |
|
1/4-18 NPT |
TYJNT040NEBC |
38 |
18 |
8 |
5 |
2 |
|
3/8-18 NPT |
TYMNT060NEBC |
50 |
22 |
8 |
5 |
2 |
|
1/2-14 NPT |
TYMNT080NEBC |
50 |
22 |
10 |
6 |
2 |
|
3/4-14 NPT |
TYRNT120NEBC |
63 |
24 |
10 |
6 |
3 |
|
1 -11 1/2 NPT |
TYUNT160NEBC |
75 |
30 |
13 |
6 |
3 |
|
1 1/4-11 1/2 NPT |
TYUNT200NEBC |
75 |
30 |
13.5 |
6 |
3 |
| แบรนด์สินค้า | YAMAWA |
|---|
