D NPTF (NPTF Threads) | Solid Round Dies for American Dryseal Taper Pipe Threads | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 3,594.39
พร้อมส่ง
SKU
D NPTF (NPTF Threads)
- The D NPTF are solid round dies for the American dryseal external tapered pipe threads for dry sealed tubes with improved runout accuracy.
Specification

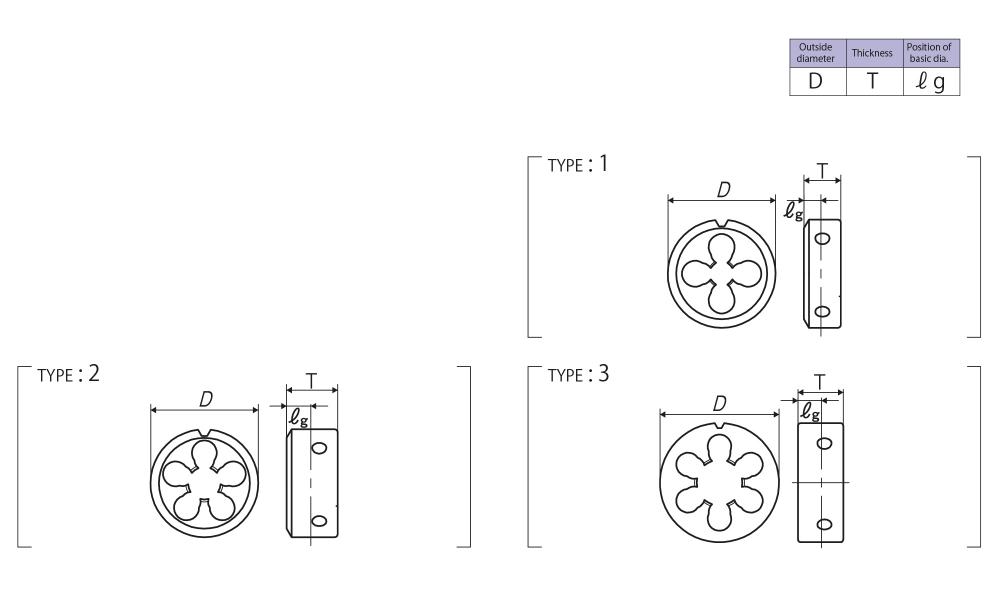

Front face
Tapping Speeds depending on Materials
Segment：3G
|
Size |
Code |
D (mm) |
T (mm) |
ℓg (mm) |
Clearance holes |
TYPE |
|
For NPTF Threads |
||||||
|
1/16-27 NPTF |
TYJNF010NEBC |
38 |
13 |
6 |
4 |
1 |
|
1/8-27 NPTF |
TYJNF020NEBC |
38 |
13 |
6 |
4 |
1 |
|
1/4-18 NPTF |
TYJNF040NEBC |
38 |
18 |
10 |
5 |
2 |
|
3/8-18 NPTF |
TYMNF060NEBC |
50 |
22 |
10 |
5 |
2 |
|
1/2-14 NPTF |
TYMNF080NEBC |
50 |
22 |
12 |
6 |
2 |
|
3/4-14 NPTF |
TYRNF120NEBC |
63 |
24 |
12 |
6 |
3 |
|
1 -11 1/2 NPTF |
TYUNF160NEBC |
75 |
30 |
15 |
6 |
3 |
|
1 1/4-11 1/2 NPTF |
TYUNF200NEBC |
75 |
30 |
15.5 |
6 |
3 |
| แบรนด์สินค้า | YAMAWA |
|---|
