D PF LH (PF Threads)
- Solid round dies for external PF left hand threads with improved runout accuracy.
Specification
Front face
Tapping Speeds depending on Materials
Segment：3G
|

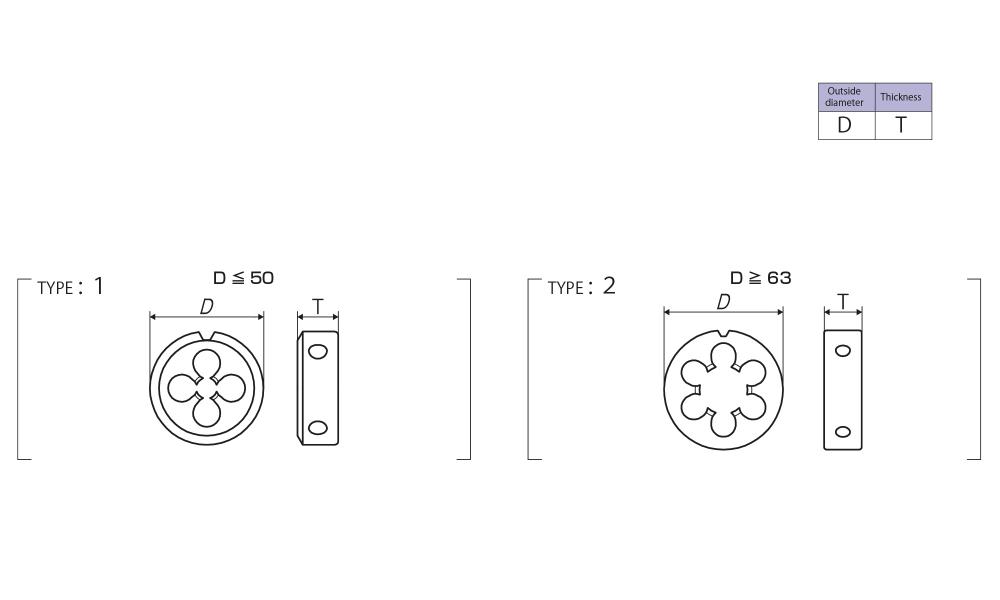

Size |
Code |
D (mm) |
T (mm) |
Clearance holes |
TYPE |
|
For PF Threads |
|||||
|
PF 1/8-28 |
GYJPF020NEBC |
38 |
13 |
4 |
1 |
|
PF 1/4-19 |
GYJPF040NEBC |
38 |
13 |
5 |
1 |
|
PF 3/8-19 |
GYMPF060NEBC |
50 |
16 |
5 |
1 |
|
PF 1/2-14 |
GYMPF080NEBC |
50 |
16 |
5 |
1 |
|
PF 3/4-14 |
GYRPF120NEBC |
63 |
20 |
6 |
2 |
|
PF 1 -11 |
GYUPF160NEBC |
75 |
25 |
6 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|
