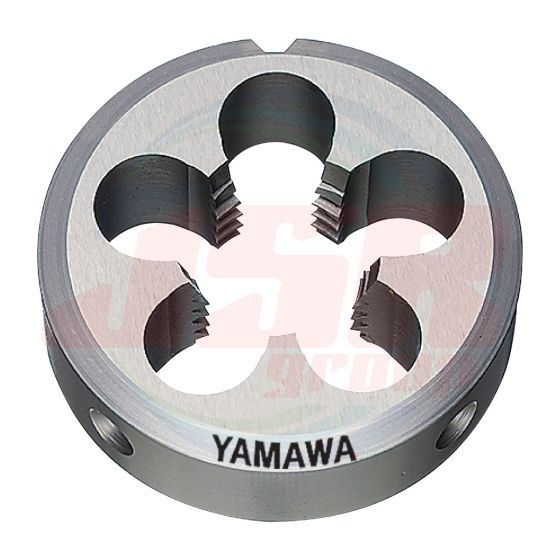

D PF (PF Threads) | Solid Round Dies for Parallel Pipe Threads | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 1,908.41
พร้อมส่ง
SKU
D PF (PF Threads)
- Solid round dies for PF external threads with improved die runout accuracy.

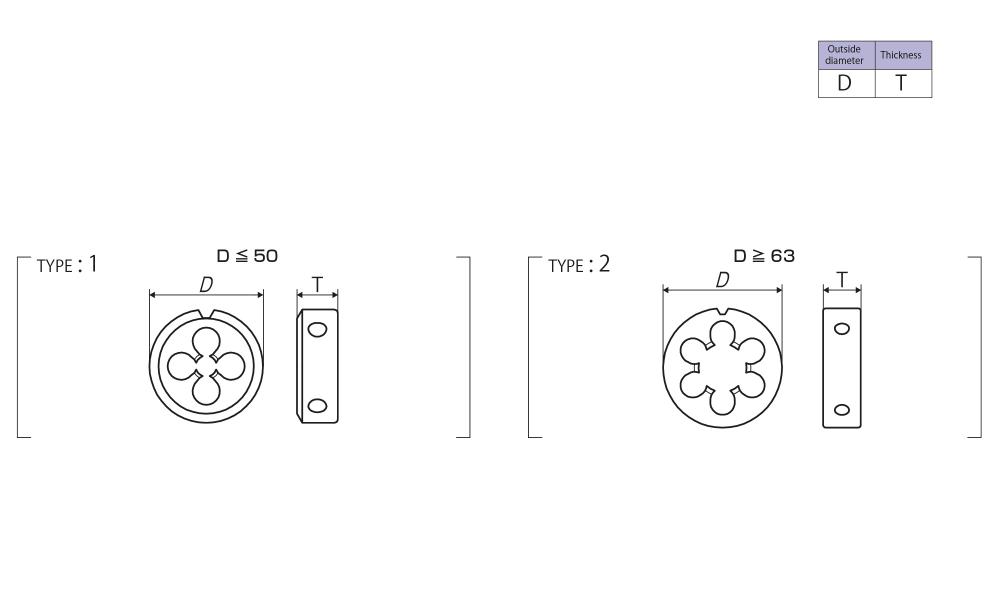

Specification
Front face
Tapping Speeds depending on Materials
Segment：3G
|
Size |
Code |
D (mm) |
T (mm) |
Clearance holes |
TYPE |
|
For PF Threads |
|||||
|
PF 1/16-28 |
TYGPF010NEBC |
25 |
9 |
4 |
1 |
|
PF 1/8-28 |
TYGPF020NEBC |
25 |
9 |
5 |
1 |
|
PF 1/8-28 |
TYJPF020NEBC |
38 |
13 |
4 |
1 |
|
PF 1/4-19 |
TYJPF040NEBC |
38 |
13 |
5 |
1 |
|
PF 3/8-19 |
TYJPF060NEBC |
38 |
13 |
6 |
1 |
|
PF 3/8-19 |
TYMPF060NEBC |
50 |
16 |
5 |
1 |
|
PF 1/2-14 |
TYMPF080NEBC |
50 |
16 |
5 |
1 |
|
PF 5/8-14 |
TYMPF100NEBC |
50 |
16 |
6 |
1 |
|
PF 3/4-14 |
TYMPF120NEBC |
50 |
16 |
6 |
1 |
|
PF 3/4-14 |
TYRPF120NEBC |
63 |
20 |
6 |
2 |
|
PF 1 -11 |
TYUPF160NEBC |
75 |
25 |
6 |
2 |
|
PF 1 1/4-11 |
TYUPF200NEBC |
75 |
25 |
8 |
2 |
|
PF 1 1/2-11 |
TYUPF240NEBC |
75 |
25 |
8 |
2 |
|
PF 2 -11 |
TYYPF320NEBC |
105 |
30 |
8 |
2 |
