D PT LH (PT Threads)
- The D PT LH are solid round dies for left hand external PT tapered pipe threads that have improved die runout accuracy.
Specification

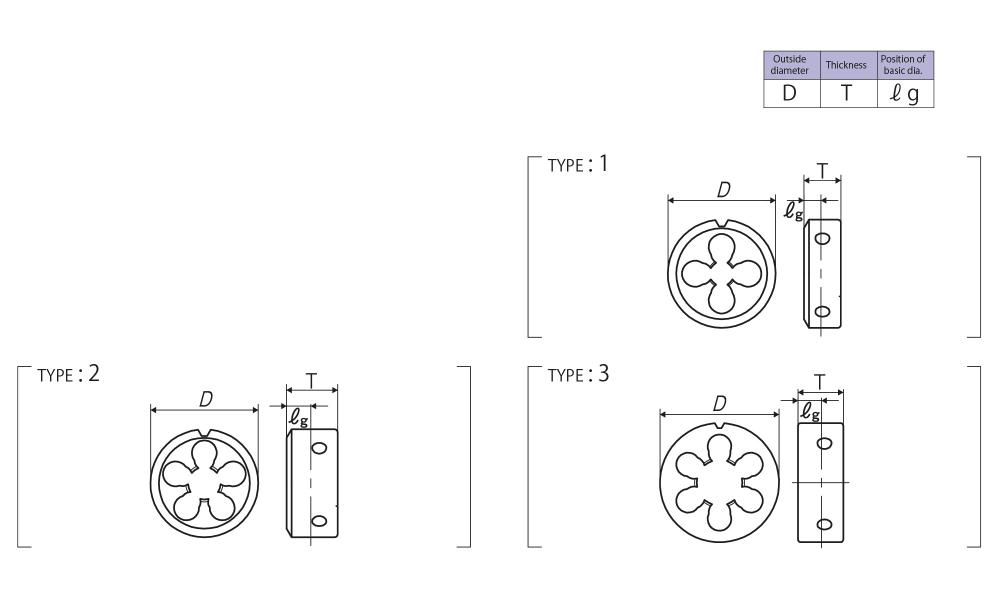

Front face
Tapping Speeds depending on Materials
Segment：3G
|
Size |
Code |
D (mm) |
T (mm) |
ℓg (mm) |
Clearance holes |
TYPE |
|
For PT Threads |
||||||
|
PT 1/8-28 |
GYJPT020NEBC |
38 |
13 |
6 |
4 |
1 |
|
PT 1/4-19 |
GYJPT040NEBC |
38 |
18 |
8.5 |
5 |
2 |
|
PT 3/8-19 |
GYMPT060NEBC |
50 |
22 |
10 |
5 |
2 |
|
PT 1/2-14 |
GYMPT080NEBC |
50 |
22 |
12 |
6 |
2 |
|
PT 3/4-14 |
GYRPT120NEBC |
63 |
24 |
12.5 |
6 |
3 |
|
PT 1 -11 |
GYUPT160NEBC |
75 |
30 |
15 |
6 |
3 |
