D PT (PT Threads) |Solid Round Dies for Taper Pipe Threads | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 2,801.87
พร้อมส่ง
SKU
D PT (PT Threads)
- The D NPT are solid round dies for American external tapered pipe threads with improved runout accuracy.
Specification
Tapping Speeds depending on Materials
Segment：3G
|
Size |
Code |
D (mm) |
T (mm) |
ℓg (mm) |
Clearance holes |

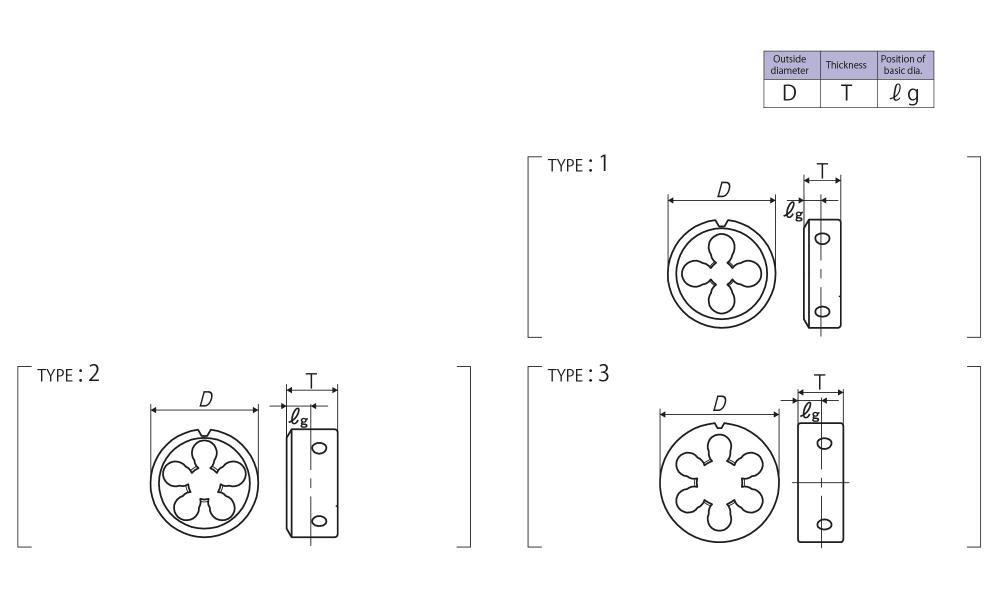

TYPE |
|
For PT Threads |
||||||
|
PT 1/16-28 |
TYJPT010NEBC |
38 |
13 |
6 |
4 |
1 |
|
PT 1/8-28 |
TYJPT020NEBC |
38 |
13 |
6 |
4 |
1 |
|
PT 1/4-19 |
TYJPT040NEBC |
38 |
18 |
8.5 |
5 |
2 |
|
PT 3/8-19 |
TYMPT060NEBC |
50 |
22 |
10 |
5 |
2 |
|
PT 1/2-14 |
TYMPT080NEBC |
50 |
22 |
12 |
6 |
2 |
|
PT 5/8-14 |
TYRPT100NEBC |
63 |
24 |
12 |
6 |
3 |
|
PT 3/4-14 |
TYRPT120NEBC |
63 |
24 |
12.5 |
6 |
3 |
|
PT 7/8-14 |
TYUPT140NEBC |
75 |
30 |
12.5 |
6 |
3 |
|
PT 1 -11 |
TYUPT160NEBC |
75 |
30 |
15 |
6 |
3 |
|
PT 1 1/4-11 |
TYUPT200NEBC |
75 |
30 |
15 |
6 |
3 |
|
PT 1 1/2-11 |
TYUPT240NEBC |
75 |
30 |
15 |
6 |
3 |
|
PT 2 -11 |
TYYPT320NEBC |
105 |
36 |
17.5 |
8 |
3 |
| แบรนด์สินค้า | YAMAWA |
|---|
