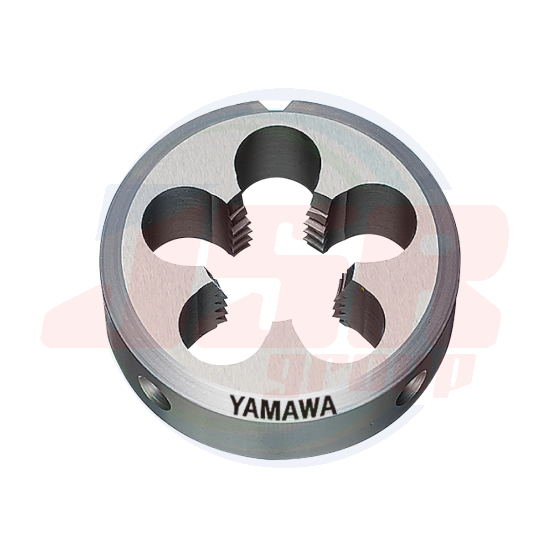

D (Screw Threads used on Sewing Machines) | Solid Round Dies | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 1,827.10
พร้อมส่ง
SKU
D (Screw Threads used on Sewing Machines)
Product Features
New Solid Round Dies-D are born, with improved accuracy of run-out tolerance.
The Solid Round Dies-D, realize consistent thread cutting by adopting HSS material.
| ① The side with markings on its bevel, is the front face.This makes it easy to determine the cutting direction. |
 |
| ② The rear face becomes the base for cutting. The rear face has a recess so that the die can fit tightly in the die holder when installing. ・ Solid Round Dies-D cannot be used from Rear face. |
 |
| ③ D is solid type and does not need the adjusting screw. Compared with adjustable type, accuracy of D's outside diameter has been greatly improved. |
 |
| ④ D has succeeded in solving difficult problems related to adjustable dies and achieved the high precision cutting of external threads. |
 |
※ External threads cut by Solid Round Dies-D
have less tears and stripes on thread flank face.
Cutting condition
Die size［DⅡ M６×１（20）］
| Work material | Free cutting steel |
| Cutting speed | 2.６m/min |
| Feed | Free |
| Machine | Engine lathe |
| Cutting Fluid | Non-water soluble cutting oil |
Specification
Front face
Tapping Speeds depending on Materials
Segment：30
|
Size |
Class |
Code |
D (mm) |
T (mm) |
Clearance holes |
TYPE |
|
For Screw Threads used on Sewing Machines |
||||||
|
3/32SM56 |
Ⅱ |
TYES06EDNEBC |
20 |
7 |
3 |
1 |
|
1/8SM40 |
Ⅱ |
TYES08HDNEBC |
20 |
7 |
3 |
1 |
|
1/8SM44 |
Ⅱ |
TYES08GDNEBC |
20 |
7 |
3 |
1 |
|
9/64SM40 |
Ⅱ |
TYES09HDNEBC |
20 |
7 |
3 |
1 |
|
11/64SM40 |
Ⅱ |
TYES11HDNEBC |
20 |
7 |
4 |
1 |
|
3/16SM28 |
Ⅱ |
TYES12KDNEBC |
20 |
7 |
4 |
1 |
|
3/16SM32 |
Ⅱ |
TYES12JDNEBC |
20 |
7 |
4 |
1 |
|
7/32SM32 |
Ⅱ |
TYES14JDNEBC |
20 |
7 |
4 |
1 |
|
15/64SM28 |
Ⅱ |
TYES15KDNEBC |
20 |
7 |
4 |
1 |
|
1/4SM24 |
Ⅱ |
TYES16MDNEBC |
20 |
7 |
4 |
1 |
|
1/4SM40 |
Ⅱ |
TYES16HDNEBC |
20 |
7 |
4 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
