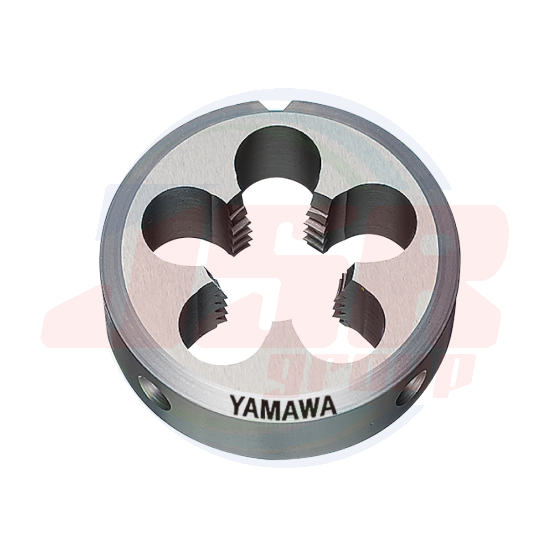

D (Whitworth Threads) | Solid Round Dies | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 1,989.72
พร้อมส่ง
SKU
D (Whitworth Threads)
Product Features
New Solid Round Dies-D are born, with improved accuracy of run-out tolerance.
The Solid Round Dies-D, realize consistent thread cutting by adopting HSS material.
| ① The side with markings on its bevel, is the front face.This makes it easy to determine the cutting direction. |
 |
| ② The rear face becomes the base for cutting. The rear face has a recess so that the die can fit tightly in the die holder when installing. ・ Solid Round Dies-D cannot be used from Rear face. |
 |
| ③ D is solid type and does not need the adjusting screw. Compared with adjustable type, accuracy of D's outside diameter has been greatly improved. |
 |
| ④ D has succeeded in solving difficult problems related to adjustable dies and achieved the high precision cutting of external threads. |
 |
※ External threads cut by Solid Round Dies-D
have less tears and stripes on thread flank face.
Cutting condition
Die size［DⅡ M６×１（20）］
| Work material | Free cutting steel |
| Cutting speed | 2.６m/min |
| Feed | Free |
| Machine | Engine lathe |
| Cutting Fluid | Non-water soluble cutting oil |
Specification
Front face
Tapping Speeds depending on Materials
Segment：30
|
Size |
Class |
Code |
D (mm) |
T (mm) |
Clearance holes |
TYPE |
|
For Whitworth Threads |
||||||
|
1/16W60 |
Ⅱ |
TYEW01-DNEBC |
20 |
7 |
3 |
1 |
|
3/32W48 |
Ⅱ |
TYEW1HFDNEBC |
20 |
7 |
3 |
1 |
|
1/8W40 |
Ⅱ |
TYEW02HDNEBC |
20 |
7 |
3 |
1 |
|
5/32W32 |
Ⅱ |
TYEW2HJDNEBC |
20 |
7 |
3 |
1 |
|
3/16W24 |
Ⅱ |
TYEW03MDNEBC |
20 |
7 |
4 |
1 |
|
3/16W24 |
Ⅱ |
TYGW03MDNEBC |
25 |
9 |
3 |
1 |
|
7/32W24 |
Ⅱ |
TYEW3HMDNEBC |
20 |
7 |
4 |
1 |
|
1/4W20 |
Ⅱ |
TYEW04NDNEBC |
20 |
7 |
4 |
1 |
|
1/4W20 |
Ⅱ |
TYGW04NDNEBC |
25 |
9 |
4 |
1 |
|
1/4W20 |
Ⅱ |
TYJW04NDNEBC |
38 |
13 |
4 |
1 |
|
5/16W18 |
Ⅱ |
TYGW05ODNEBC |
25 |
9 |
4 |
1 |
|
5/16W18 |
Ⅱ |
TYJW05ODNEBC |
38 |
13 |
4 |
1 |
|
3/8W16 |
Ⅱ |
TYGW06PDNEBC |
25 |
9 |
5 |
1 |
|
3/8W16 |
Ⅱ |
TYJW06PDNEBC |
38 |
13 |
4 |
1 |
|
3/8W16 |
Ⅱ |
TYMW06PDNEBC |
50 |
16 |
4 |
1 |
|
7/16W14 |
Ⅱ |
TYJW07QDNEBC |
38 |
13 |
4 |
1 |
|
7/16W14 |
Ⅱ |
TYMW07QDNEBC |
50 |
16 |
4 |
1 |
|
1/2W12 |
Ⅱ |
TYJW08SDNEBC |
38 |
13 |
4 |
1 |
|
1/2W12 |
Ⅱ |
TYMW08SDNEBC |
50 |
16 |
4 |
1 |
|
9/16W12 |
Ⅱ |
TYJW09SDNEBC |
38 |
13 |
5 |
1 |
|
5/8W11 |
Ⅱ |
TYJW10UDNEBC |
38 |
13 |
5 |
1 |
|
5/8W11 |
Ⅱ |
TYMW10UDNEBC |
50 |
16 |
4 |
1 |
|
3/4W10 |
Ⅱ |
TYMW12VDNEBC |
50 |
16 |
5 |
1 |
|
7/8W9 |
Ⅱ |
TYMW14WDNEBC |
50 |
16 |
6 |
1 |
|
1 W8 |
Ⅱ |
TYMW16XDNEBC |
50 |
16 |
6 |
1 |
|
1 1/8W7 |
Ⅱ |
TYRW18YDNEBC |
63 |
20 |
6 |
2 |
|
1 1/4W7 |
Ⅱ |
TYRW20YDNEBC |
63 |
20 |
6 |
2 |
|
1 3/8W6 |
Ⅱ |
TYUW22ZDNEBC |
75 |
25 |
6 |
2 |
|
1 1/2W6 |
Ⅱ |
TYUW24ZDNEBC |
75 |
25 |
6 |
2 |
