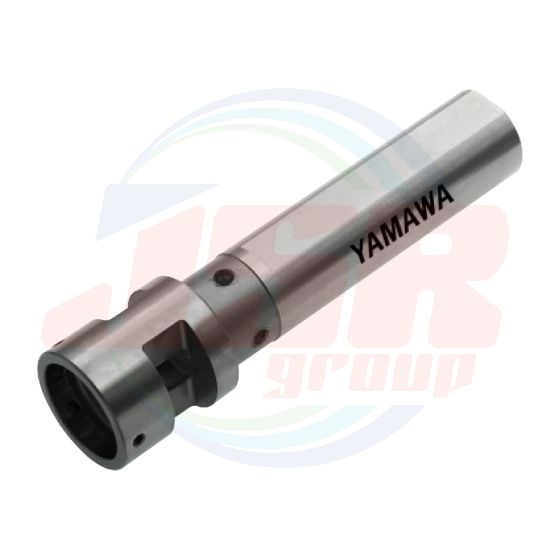

Product Features
● Tooling that enables use of not only solid dies but also rolling dies commonly used with lathes.
● Stable and consecutive threading is achieved by removing remaining chips through the provided chip outlet.
● The flat cut on the shank is suitable for mounting the attachment on the turret of a lathe!
● The tension spring is equipped for stable threading. The feed rate should be set to 90 to 95% of the pitch length.
Machining Data

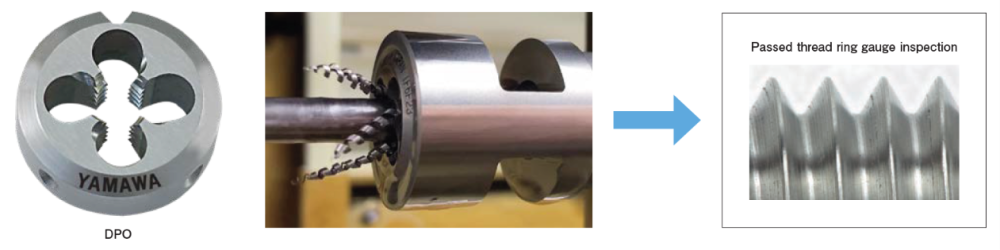

● Use of a Spiral Pointed Solid Die DPO improves chip removal and achieves stable and consecutive threading!
◎ Cutting conditions [Asynchronous feed: 90% of the thread pitch]
| Dise Size | M6×1 | Machining Speed | 2m/min, workpiece rotating | Machine | Automatic horizontal lathe |
| Workpiece Material | S45C | Threading Length | 10mm | Cutting Fluid | Non soluble cutting oil |

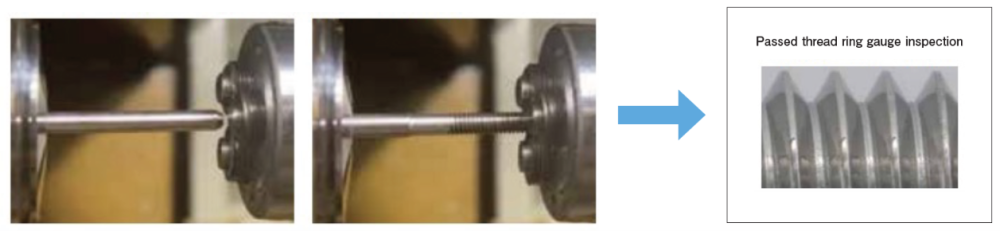

● High quality external threading using RS-D rolling dies
◎ Cutting conditions [Asynchronous feed: 90% of the die pitch]
| Dise Size | M3×0.5 | Machining Speed | 3m/min, workpiece rotating | Machine | Automatic horizontal lathe |
| Workpiece Material | SUS303 | Threading Length | 10mm | Cutting Fluid | Non soluble cutting oil |

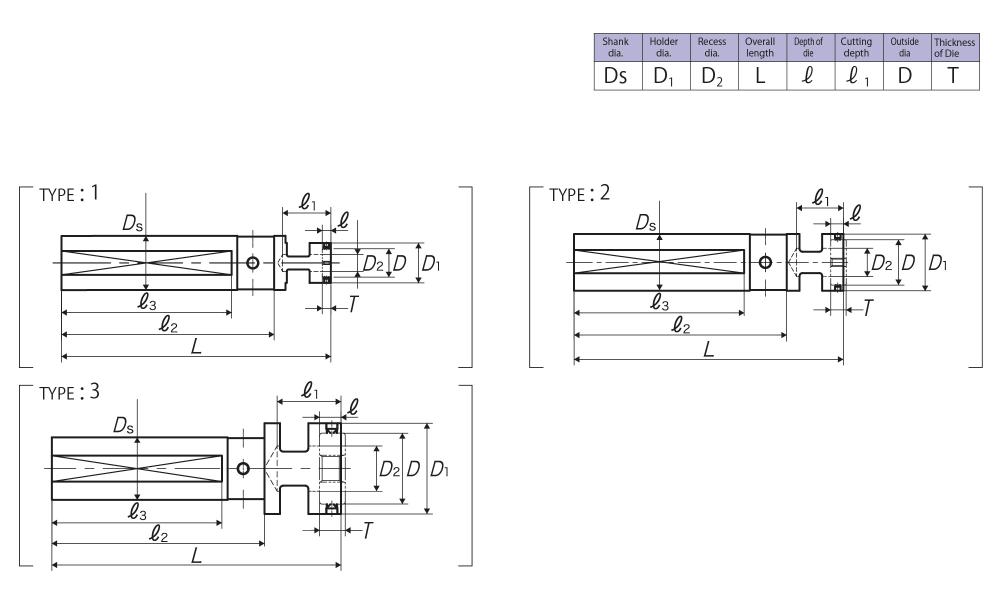

Specification
Segment：3A
|
Code |
Ds (mm) |
D1 (mm) |
D2 (mm) |
L (mm) |
ℓ (mm) |
ℓ1 (mm) |
ℓ2 (mm) |
ℓ3 (mm) |
D (mm) |
T (mm) |
TYPE |
|
DASL191075 |
19.05 |
14 |
6 |
95 |
3 |
16 |
75 |
60 |
10 |
3 |
1 |
|
DASL191675 |
19.05 |
20 |
10 |
95 |
4.5 |
16 |
75 |
60 |
16 |
5 |
3 |
|
DASL192075 |
19.05 |
25 |
12 |
102 |
6.5 |
22.5 |
75 |
60 |
20 |
7 |
3 |
|
DASL201075 |
20 |
14 |
6 |
95 |
3 |
16 |
75 |
60 |
10 |
3 |
1 |
|
DASL201675 |
20 |
20 |
10 |
95 |
4.5 |
16 |
75 |
60 |
16 |
5 |
2 |
|
DASL202075 |
20 |
25 |
12 |
102 |
6.5 |
22.5 |
75 |
60 |
20 |
7 |
3 |
|
DASL221075 |
22 |
14 |
6 |
95 |
3 |
16 |
75 |
60 |
10 |
3 |
1 |
|
DASL221675 |
22 |
22 |
10 |
95 |
4.5 |
16 |
75 |
60 |
16 |
5 |
2 |
|
DASL222075 |
22 |
25 |
12 |
102 |
6.5 |
22.5 |
75 |
60 |
20 |
7 |
3 |
|
DASL222575 |
22 |
32 |
16 |
102 |
7.5 |
22 |
75 |
60 |
25 |
9 |
3 |
|
DASL252075 |
25 |
25 |
12 |
102 |
6.5 |
22.5 |
75 |
60 |
20 |
7 |
2 |
|
DASL252575 |
25 |
32 |
16 |
102 |
7.5 |
22 |
75 |
60 |
25 |
9 |
3 |
|
DASL3238105 |
32 |
50 |
26 |
147 |
11 |
36 |
105 |
88 |
38 |
13 |
3 |
