DA SS | Die Attachment for Machining Center | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 7,558.88
ราคารวม VAT แล้ว
พร้อมส่ง
SKU
DA SS
QTY:
0
Product Features
● The exclusive tooling for YAMAWA solid dies, with functions to compensate feed error and misalignment of centering.
● In combination with NC tooling, external threads can be easily made in complicated workpieces.

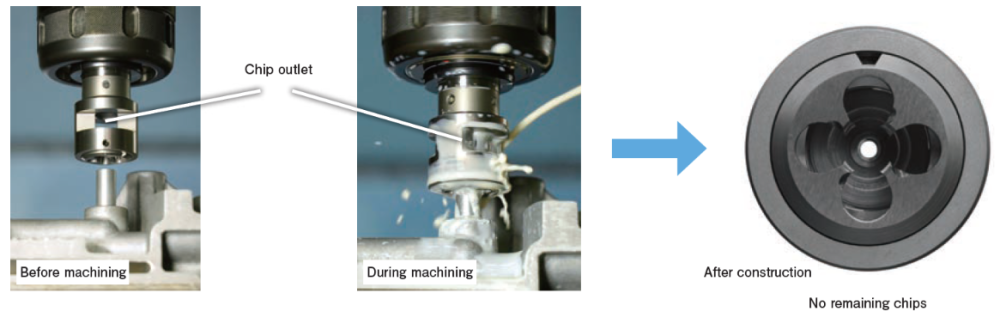

● Stable and consecutive threading is achieved by removing remaining chips through the provided chip outlet.
● The coolant through hole is standardized to support the internal coolant supply.
Machining Data
◎ Cutting condition（Rigid feed）
| Tool size | M8×1.25 | Cutting length | 16mm | Stable and consecutive threading is achieved by removing remaining chips through the chip outlet! It can also be used with external lubrication equipment. |
| Work Material | Brass | Machine | Vertical-type machining center | |
| Cutting Speed | 5m/min | Cutting Oil | Water-soluble cutting oil |

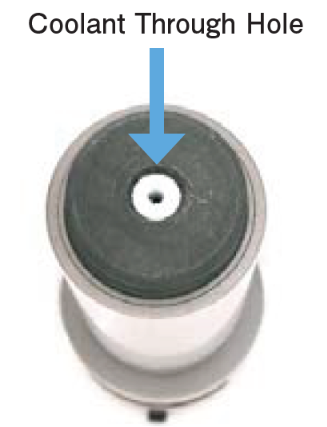

Coolant Through Hole Specifications
 |
Cutting oil passes through the coolant through hole provided in the center of the die attachment to accelerate chip ejection, lubrication, and cooling. |

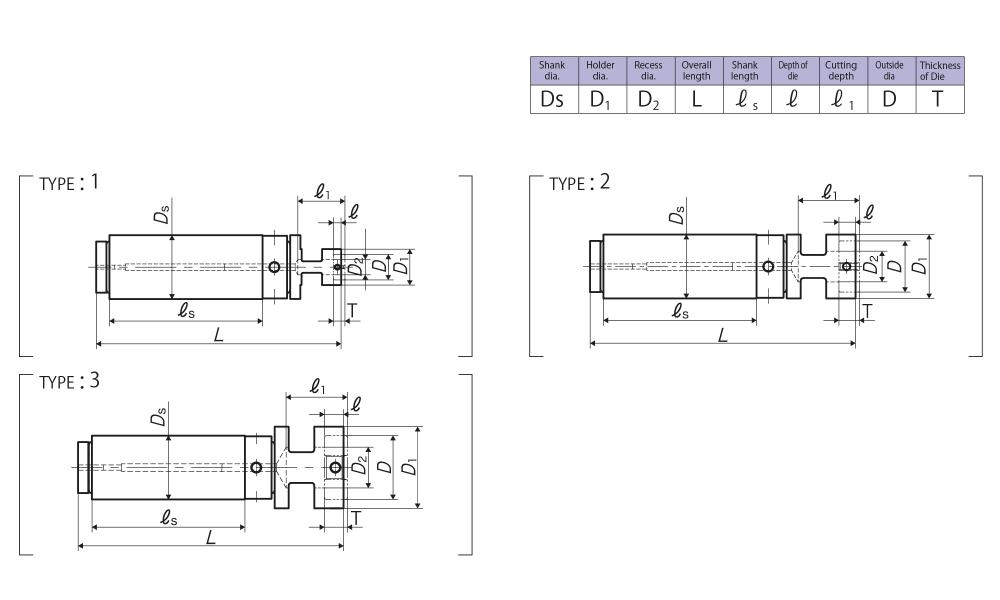

Specification
Segment：3A
|
Code |
Ds (mm) |
D1 (mm) |
D2 (mm) |
L (mm) |
ℓs (mm) |
ℓ (mm) |
ℓ1 (mm) |
D (mm) |
T (mm) |
TYPE |
|
DASS201060 |
20 |
14 |
6 |
96 |
60 |
3 |
16 |
10 |
3 |
1 |
|
DASS201660 |
20 |
20 |
10 |
96 |
60 |
4.5 |
16 |
16 |
5 |
2 |
|
DASS202060 |
20 |
25 |
12 |
103 |
60 |
6.5 |
22.5 |
20 |
7 |
3 |
|
DASS252060 |
25 |
25 |
12 |
104 |
60 |
6.5 |
22.5 |
20 |
7 |
2 |
|
DASS252560 |
25 |
32 |
16 |
104 |
60 |
7.5 |
22 |
25 |
9 |
3 |
|
DASS323870 |
32 |
50 |
26 |
132 |
70 |
11 |
36 |
38 |
13 |
3 |
| แบรนด์สินค้า | YAMAWA |
|---|
