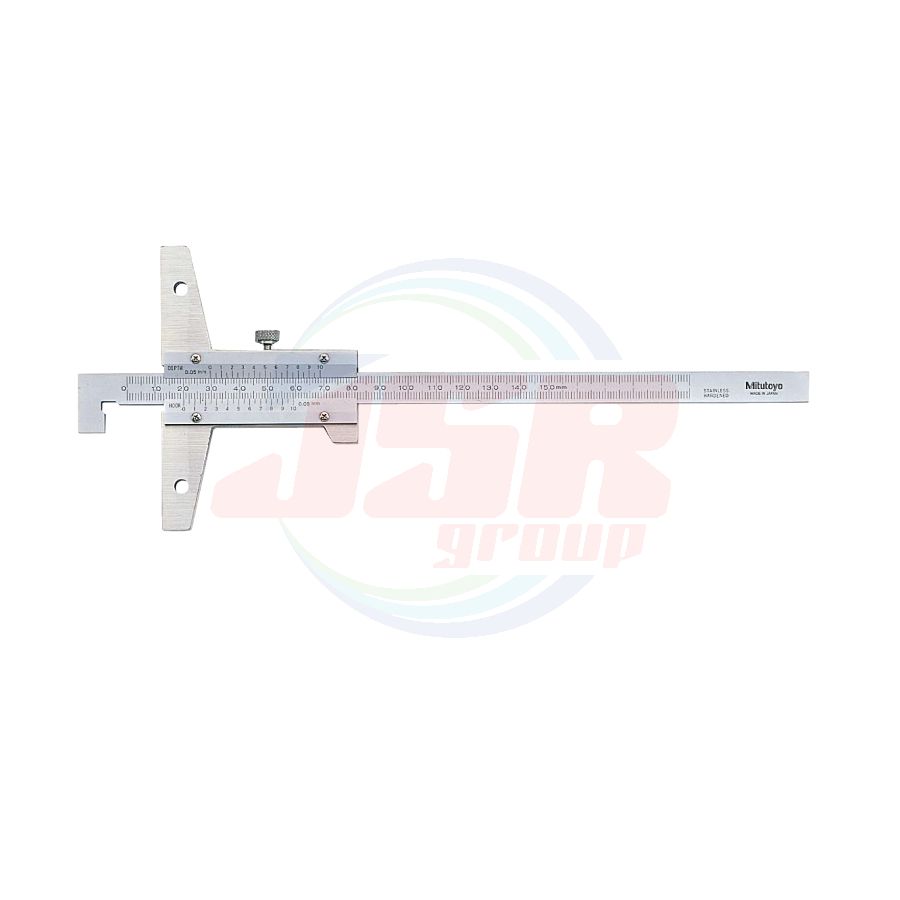

Depth Gage SERIES 527 — Hook-end Type | MITUTOYO
ราคาพิเศษ
THB 0.00
THB 0.00
ราคาปรกติ
THB 7,652.64
พร้อมส่ง
SKU
VD-H

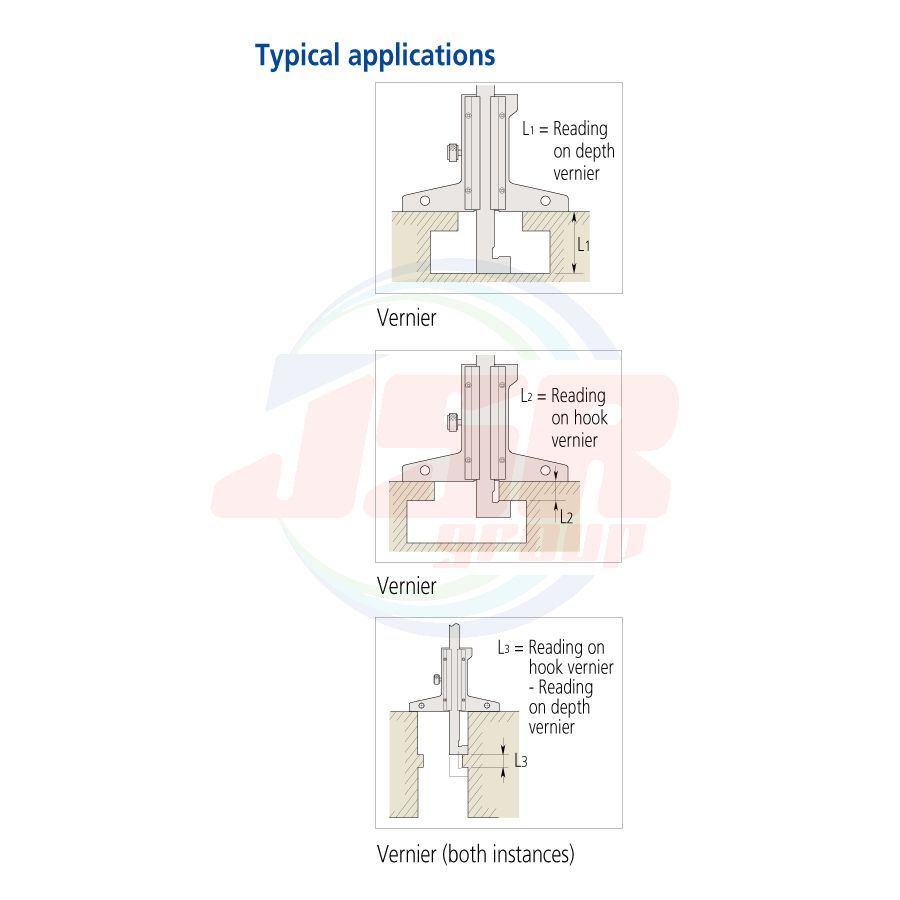

• The end of the main scale is hookshaped to allow depth and thickness measurements of a projected portion or lip in a hole, in addition to standard depth measurement.
• Depth can be directly measured with the upper Vernier of the slider and thickness with the lower Vernier.
• Optional longer extension bases are available.
SPECIFICATIONS
Metric
| Order No. | Range (mm): L1 (L2 and L3) | Resolution/Graduation (mm) |
Base (W×T) (mm) | Maximum permissible error E MPE (mm)* |
| 527-401 | 10 - 150 (0 - 150) | 0.05 | 100x6.5 | ±0.05 |
| 527-402 | 10 - 200 (0 - 200) | |||
| 527-403 | 10 - 300 (0 - 300) | ±0.08 | ||
| 527-411 | 10 - 150 (0 - 150) | 0.02 | ±0.03 | |
| 527-412 | 10 - 200 (0 - 200) | |||
| 527-413 | 10 - 300 (0 - 300) | ±0.04 |
* Maximum permissible error, E MPE, is the term defined by ISO 13385-2:2011.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
| Inch-Metric | Metric |

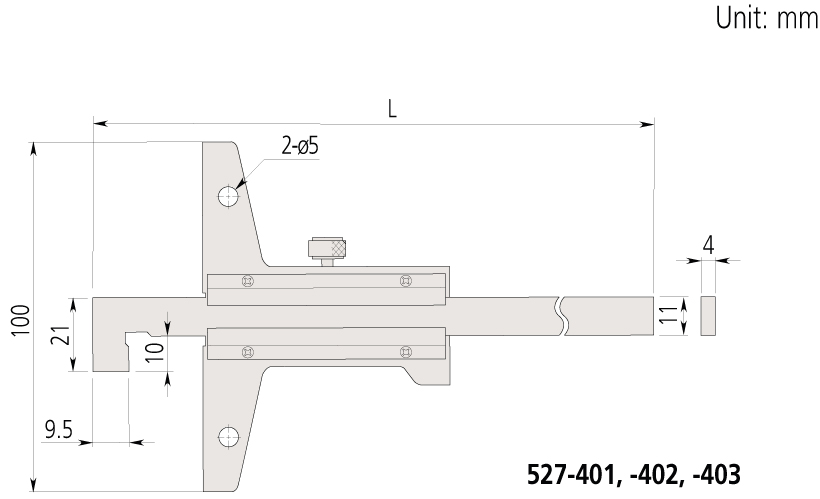

| Range (mm) | L |
| 0 - 150 | 260 |
| 0 - 200 | 310 |
| 0 - 300 | 410 |
เขียนรีวิวสินค้าของคุณเอง
