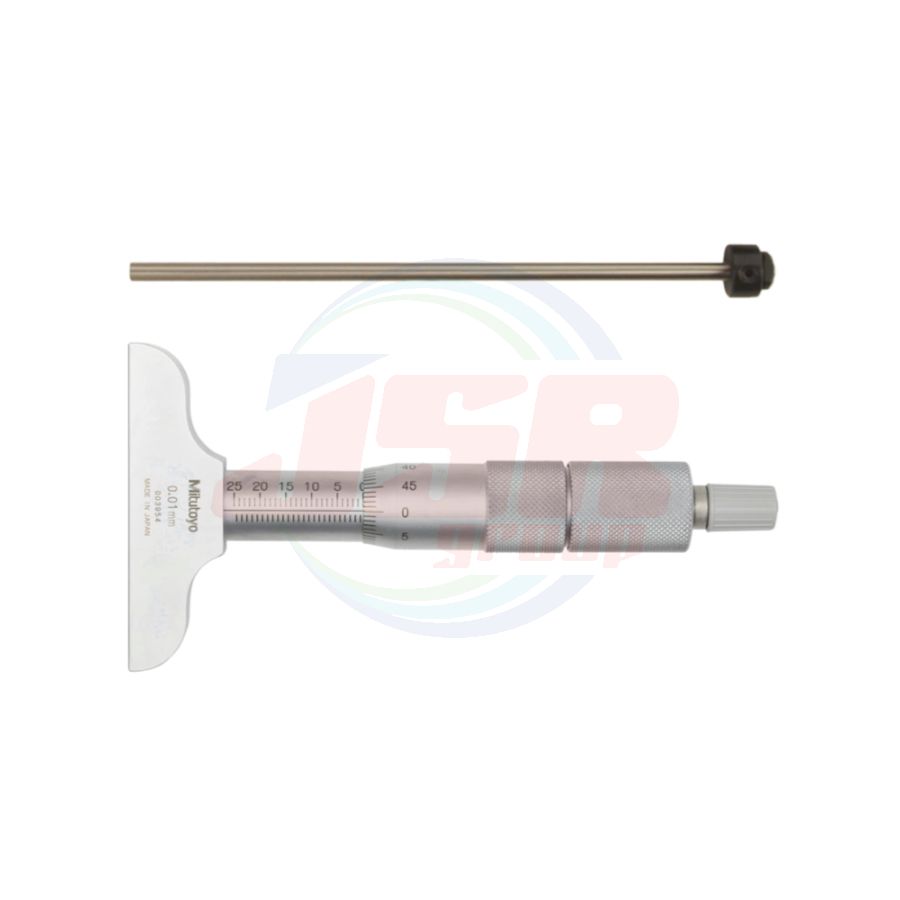

Depth Micrometer SERIES 129 — Interchangeable Rod Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 2,495.24
พร้อมส่ง
SKU
1MIT-DMC
• Interchangeable rods provide a wide measuring range.
• Data output function allows integration into statistical process control and measurement systems.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Graduation (mm) |
Base (mm) |
Spindle feed error (μm) |
Flatness of reference surface (base) (μm) |
Flatness of measuring face (rod) (μm) |
Parallelism between reference face and measuring rod face (μm) |
Zero point error of rods (μm) |
No. of rods |
| Analog | |||||||||
| 129-154 | 0 - 25 | 0.01 | 63.5×16 | 3 | 1.3 | 0.3 | 5 | ±3 | 1 |
| 129-155 | 101.6×16 | 2 | |||||||
| 129-109 | 0 - 50 | 63.5×16 | 1.3 | 2 | |||||
| 129-113 | 101.6×16 | 2 | |||||||
| 129-110 | 0 - 75 | 63.5×16 | 1.3 | 6 | 3 | ||||
| 129-114 | 101.6×16 | 2 | |||||||
| 129-111 | 0 - 100 | 63.5×16 | 1.3 | ±4 | 4 | ||||
| 129-115 | 101.6×16 | 2 | |||||||
| 129-112 | 0 - 150 | 63.5×16 | 1.3 | 7 | 6 | ||||
| 129-116 | 101.6×16 | 2 | |||||||
| 129-152 | 0 - 300 | 63.5×16 | 1.3 | 10 | ±6 | 12 | |||
| 129-153 | 101.6×16 | 2 | |||||||
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life*: Approx. 2.4 years under normal use
* Digimatic models
• Position detection method: Electromagnetic induction ABSOLUTE encoder
• Standard Accessories: 301336 Spanner, 04GAA274 Spanner, 202863 Hex-Spanner
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
| Inch-Metric | Metric |
