Centering Universal Holders
NOGA centering holders
• Used for centering workpieces.
• Universal fine adjustment on DG1022 & NF1022.
• Standard clamp on NF1015 & NF1018.
• Unique central locking mechanism with spring loaded bearing.
• Central rod: ø8 x 40 mm.
• Black finished arms.

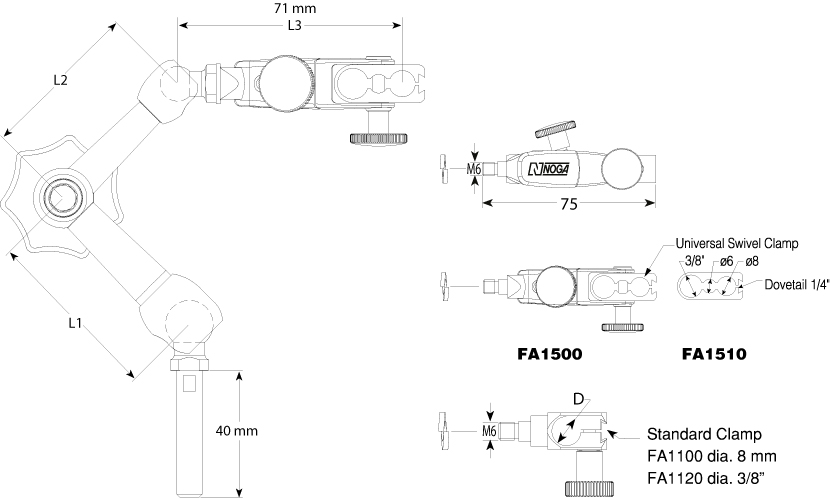

| Order No. | Bottom Thread | Weight (kg) |
Bottom Arm L1 |
Top Thread L2 |
Total L1 + L2 + L3 |
Standard clamp Order No. |
Standard clamp Dia. (D) |
| NF1015 | ø8 x 40 | 0.345 | 56 | 51 | 128.5 | FA1100 | 8 |
| NF1018 | ø8 x 40 | 0.345 | 56 | 51 | 128.5 | FA1120 | 3/8" |
| NF1022 | ø8 x 40 | 0.345 | 56 | 51 | 178 | FA1500 | 6, 8, 3/8" |
| DG1022 | ø8 x 40 | 0.35 | 110 | 101 | 282 | FA1500 | 6, 8, 3/8" |
| แบรนด์สินค้า | NOGA |
|---|
