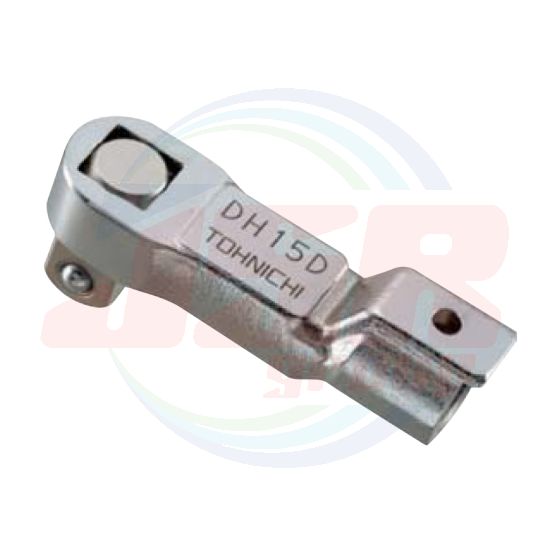

DH - Square Drive Head
The DH Square drive heads are the standard interchangeable head. They are useful when tightening a large number of matching screws with a common torque wrench. It is recom-mended to keep one set. They are used with sockets.

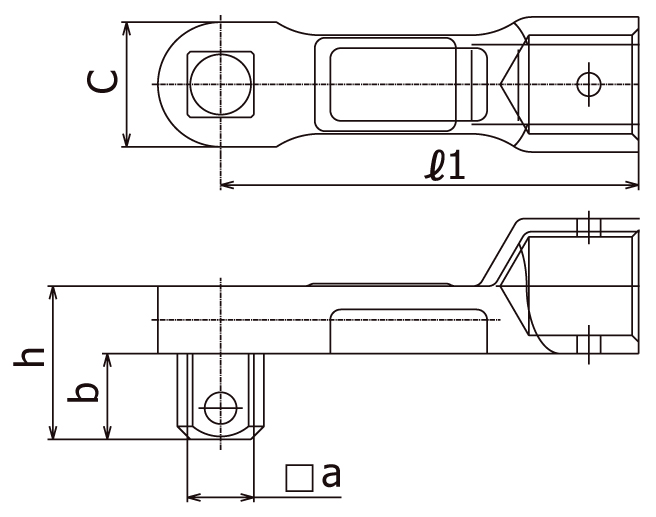

| Order No. | Head Size | Dimensions | |||
| Sq. Drive a [mm] | Outside Width c [mm] | h [mm] | b [mm] | ||
| DH10D | 10D | 9.53 | 18 | 22.5 | 13 |
| DH12D | 12D | 23 | |||
| DH15D | 15D | 12.7 | 22 | 29.5 | 16.5 |
| DH19D | 19D | 24 | |||
| DH22D | 22D | 19.05 | 34 | 43.3 | 23.5 |
| DH27D | 27D | 42 | 44.5 | ||
| DH32D | 32D | 25.4 | 50 | 58.5 | 30.25 |
Note : 1. DH32D is a through hole type
