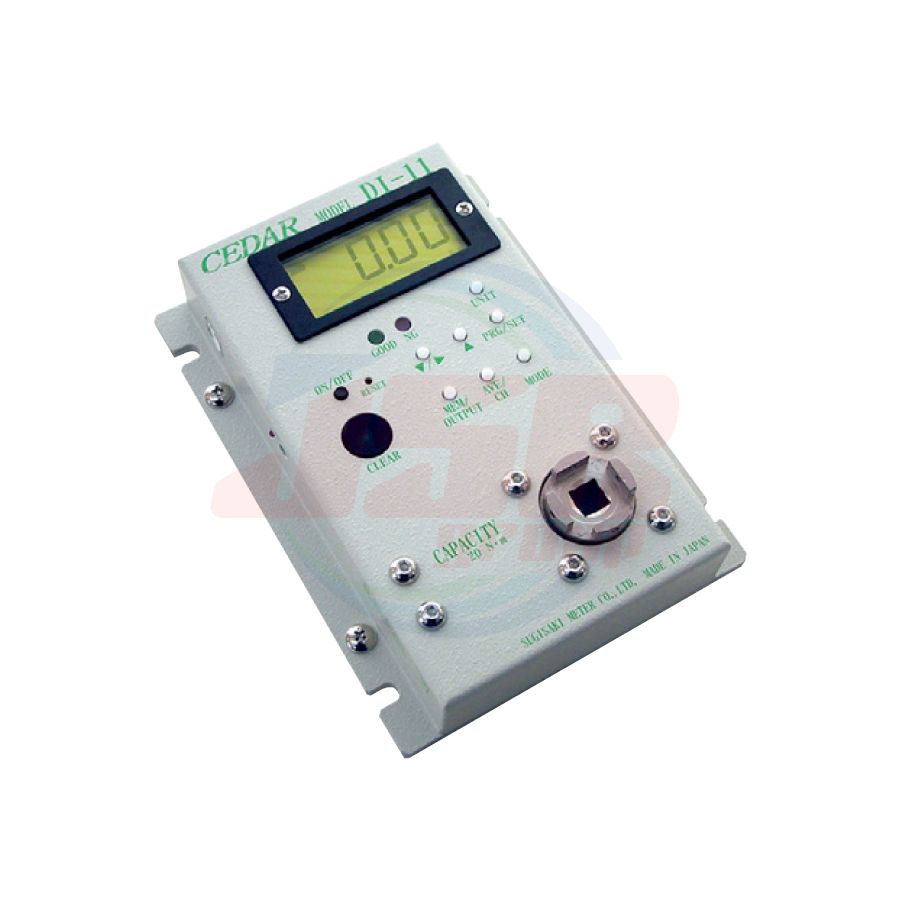

DI-11 | TORQUE TESTER - DI-11 | CEDAR
THB 0.00
พร้อมส่ง
SKU
DI-11
Suitable for daily inspection of electric screw driver Correpond to high torque electric driver
Enable to save 5 channels of pass/fail judgement criterion, and enable to change settings easily by switch channels even if the tightening term changes.
Include High torque correspondence joint (SJ - 100)
• Show “Measurement mode” “Measurement unit” Indication of “maximum, minimum, average”
• Switchable measurement unit
• Enable to save 5 sets of settings such as upper limit and lower limit
• 800 items of memory data
• Real-time output About every 1/180 seconds
• Data acquisition software can be downloaded for free
| Order No. | DI-11 |
| Measuring range (at the time of Track) | 0.10 ~ 20 N•m |
| 1.0 ~ 200 kgf•cm | |
| 1.0 ~ 174 lbf•in | |
| Accuracy | ±0.5% (499 digit or less ±3digit) |
| Display | The 4 figures digital display of LED |
| The measurement direction | CW-CCW (right and left) |
| Measurement Mode | Track, P-P(pead to peak), P-D(Peak-Down), C(Real-time output) |
| High and low limits judging function | High and low value are measurement within the limits, and can be set up. Five-set preservation is possible. |
| Real-time Output | Load torque value is outputted every about 1/180 second. |
| The Maximum, the minimum, and the average value display | The maximum, the minimum, average value. |
| Data Output | ASCII format (baud rate 19200) |
| Auto power save | 10 minutes no use, automatically switch off. |
| Power supply | Ni-Cd chargeable battery 1.2V x 5cells 700mAh |
| Charging time | From empty - less than 6 hours |
| Continuous working time | 12 hours |
| Weight | About 1.5kg |
| Outside dimension | 130(W) x 180(D) x 34(H) |
| Attachment | Measurement joint SJ-50 / SJ-100 |
| Accessories (one piece each) | AC/DC adaptor (Please choose AC adaptor out of 120V, and 230V) |
| Exclusive receipt case | |
| An inspection report, a proofreading certificate, traceability system figure |
| แบรนด์สินค้า | CEDAR |
|---|---|
| Order No. | DI-11 |
