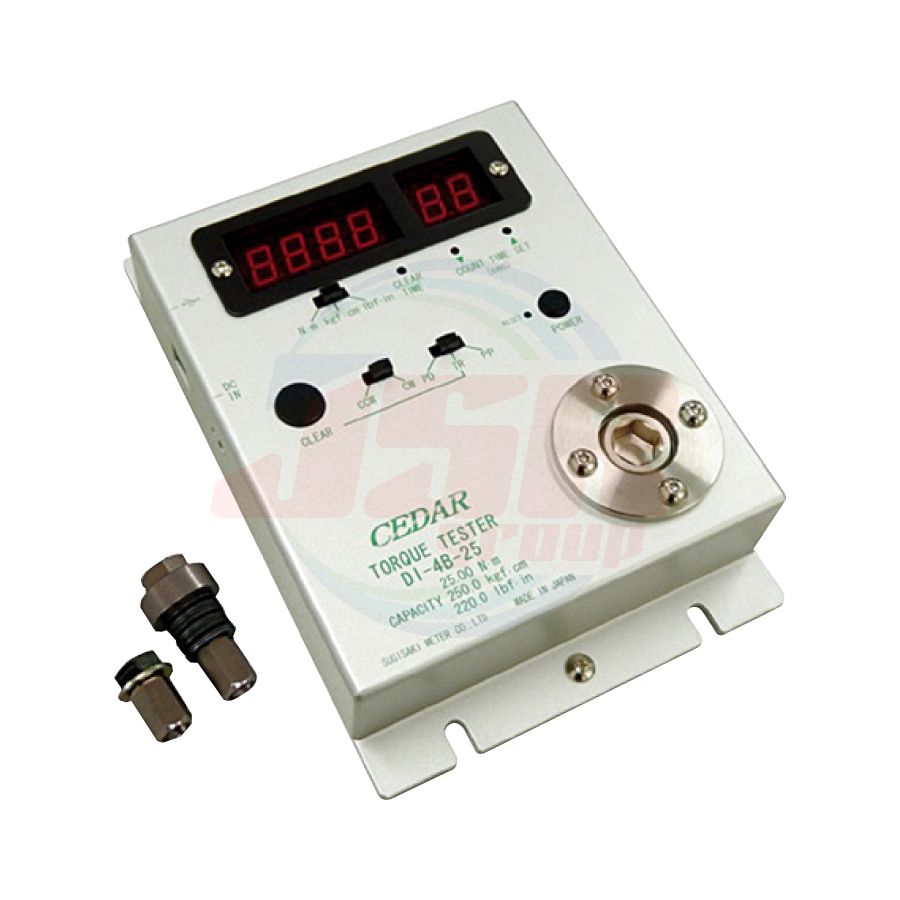

DI-4B-25 | TORQUE TESTER - DI-4B-25 | CEDAR
THB 0.00
พร้อมส่ง
SKU
DI-4B-25

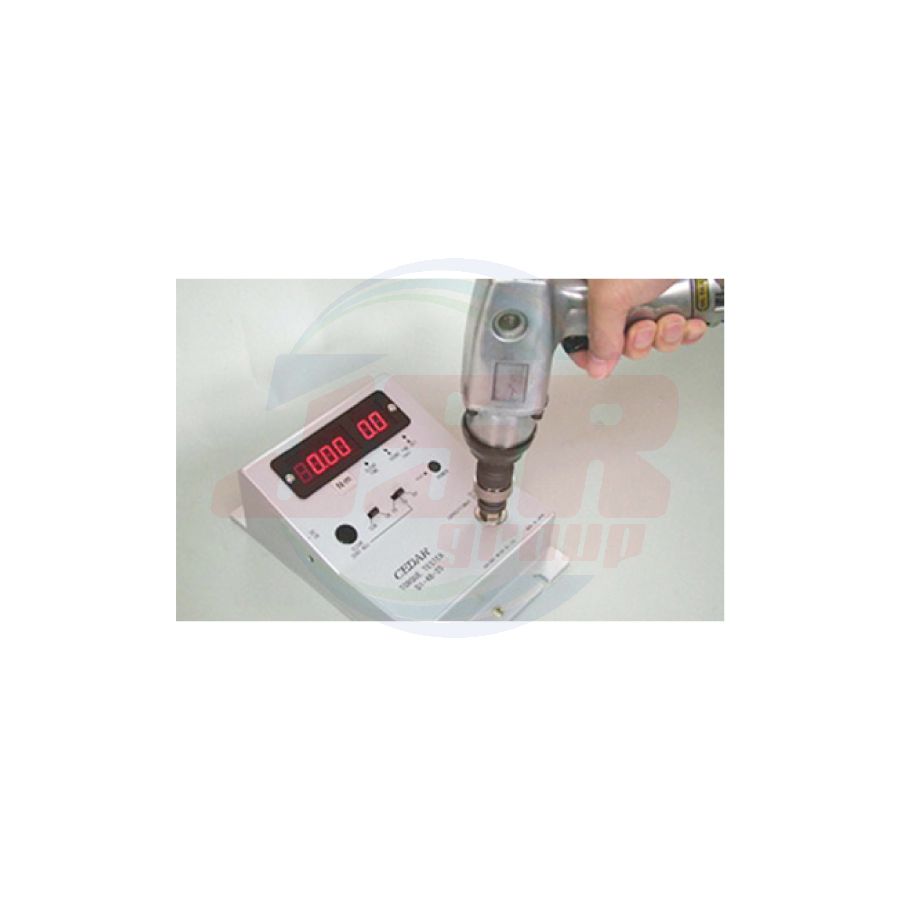

Suitable for daily inspection of small-size impact tools
Since display is equipped as with LED, you can clearly read the value even in a dark place.
Enable to measure anywhere because it is integrated type and compact.
• Measurable up to 25 N • m
• Equipped with blow counter for impact tool
• Enable to measure with socket attached
• Attached Soft joint (for tightening elastic material) and hard joint (for tightening rigid material)
• Data acquisition software can be downloaded for free
• Data acquisition software can be downloaded for free
| Order No. | DI-4B-25 | Appearance figure |
| Measurement range (at the time of Track) | 0.30 ~ 25 N•m 3.0 ~ 250 kgf•cm 3.0 ~ 220 lbf•in |  |
| Accuracy | ±0.5% (or less 499 ±3digit) | |
| The Display method | 4 figures LED display | |
| The measurement direction | CW - CCW (right and left)It is selection measurement by the change switch | |
| Mode | Track, Peak, Peak-Down (opertion is 70digit or more) | |
| Auto clear time | In 0.5 - 3.0 seconds(0.5-second interval, an indication is automaticlly given zero.) It is a manual zero clearance by 0.0-second setup | |
| Blow measurement range | Zero to 99 blow | |
| Blow measurement time | 0.1-9.9 seconds | |
| Data output | ACSII format (baud rate 19200) | |
| Appearance | Dimension: 150(W) x 220(D) x 74(H) | About the method of application of an attachment |
| Weight: About 2.1kg | ||
| Power supply | nickel-cadmium battery 1.2v 5cells (700mAh) Auto power OFF (after [OFF] the neglect during 5 minutes) |  |
| Charge time / use time | At the time of charge 6 hour /, and the maximum charge Continuation about 8-hour use | |
| The contents of a set (one piece each) | Hard joint (M10) / Soft joint (M10) / 9.5sq. drive Socket (Hexagon head socket 17) | |
 |
||
| 6.35 Hex bit (Hexagon head socket 17) | ||
| Receipt case | ||
| AC/SC adaptor (Please choose from 120V and 230V.) | ||
| Inspection-report / proofreading certificate / Traceability system figure |
| แบรนด์สินค้า | CEDAR |
|---|---|
| Order No. | DIS-IPS5C |
