Dial Depth Gauge : Measuring Range 20 mm | TECLOCK
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
TEC-Depth Gauge-20mm

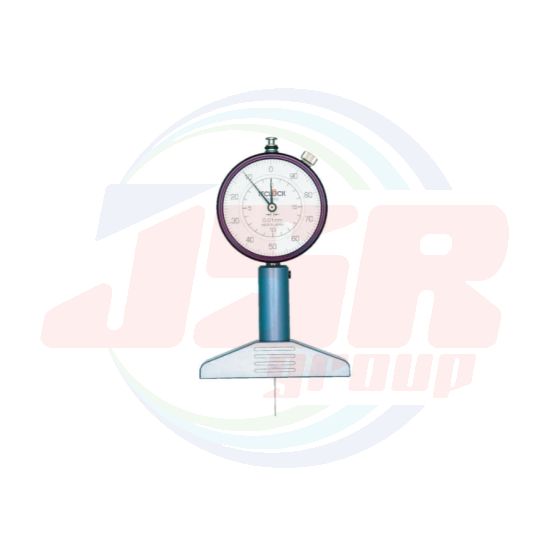

Dial Depth Gauge - Measuring Range: 20mm
• Dial Depth Gauge can be used to measure depth and steps of work piece and coating thickness.
• 5-240mm range (with the supplied extension rods) are available for wide application.
• Special order is applicable for contact point and base.
• Low measuring force type is also available, which seldom hurts work piece.
• Lifting lever (Option) can be mounted.
Specifications
* Measuring Range : ( ) value is a range by using 5pcs extension rods.
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Indication Error (μm) |
Contact Point Form (mm) |
Standard Contact Point | Measuring Force (N) | Weight (g) |
Old Model |
| DM-220 | 0.01 | 20 | ±15 | Needle | ZS-543 | 2.2 or less | 300 | DM-234 |
| DM-221 | 0.01 | 20 | ±15 | φ2 Flat | ZS-541 | 2.2 or less | 300 | - |
| DM-223 | 0.01 | 20 | ±15 | φ3.2 Steel Ball | ZS-034 | 2.2 or less | 275 | DM-201D |
| DM-224 | 0.01 | 20 (230) | ±15 | φ3.2 Steel Ball | ZS-034 | 2.5 or less | 340 | DM-202D |
| DM-230 | 0.01 | 30 | ±35 | Needle | ZS-543 | 2.5 or less | 315 | DM-249 |
| DM-233 | 0.01 | 30 (240) | ±35 | φ3.2 Steel Ball | ZS-034 | 2.5 or less | 315 | DM-248 |
| DM-234 | 0.01 | 30 (240) | ±35 | φ3.2 Steel Ball | ZS-034 | 2.5 or less | 355 | - |
| แบรนด์สินค้า | TECLOCK |
|---|

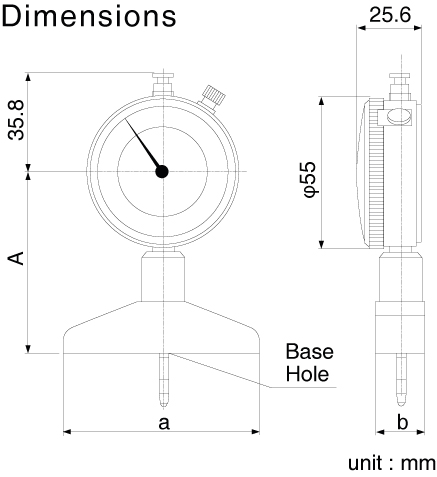

| Order No. | A | Base Form a×b |
Base Hole Diameter |
| DM-220 | 84.7 | 75x16 | 2.5 |
| DM-221 | 84.7 | 75x16 | 2.5 |
| DM-223 | 64.7 | 75x16 | 5.2 |
| DM-224 | 64.7 | 100x16 | 5.2 |
| DM-230 | 84.7 | 75x16 | 2.5 |
| DM-233 | 64.7 | 75x16 | 5.2 |
| DM-234 | 64.7 | 100x16 | 5.2 |
