Dial Depth Gauges
It measure a depth from top bottom of bottomed holes, a depth of narrow grooves, a value of step height of stepped surfaces and a depth of types engraved in matrices.
The dial gauge furnished offers a correct measured value since it can measure an object under measurement with a given measuring force.
Specifications
| Order No. | Range (mm) | Accuracy (μm) | Dial Gauge | Base | ||||
| Gauge installed | Graduation (mm) | Range (mm) | Measuring force less than (N) |
Length (mm) | Width (mm) | |||
| T-1 | 0～160 | ±20 | 207F-T | 0.01 | 20 | 2.0 | 120 | 14 |
| T-1W | 0～220 | ±20 | 207WF-T | 0.01 | 20 | 2.0 | 100 | 11 |
| T-2 | 0～10 | ±15 | 107F-T | 0.01 | 10 | 1.4 | 60 | 14 |
| T-2W | 0～20 | ±20 | 207WF-T | 0.01 | 20 | 2.0 | 75 | 11 |
| T-2B | 0～5 | ±20 | 196B-T | 0.01 | 5 | 1.4 | 75 | 11 |
| T-2C | 0～10 | ±15 | 107F-T | 0.01 | 10 | 1.4 | 75 | 11 |

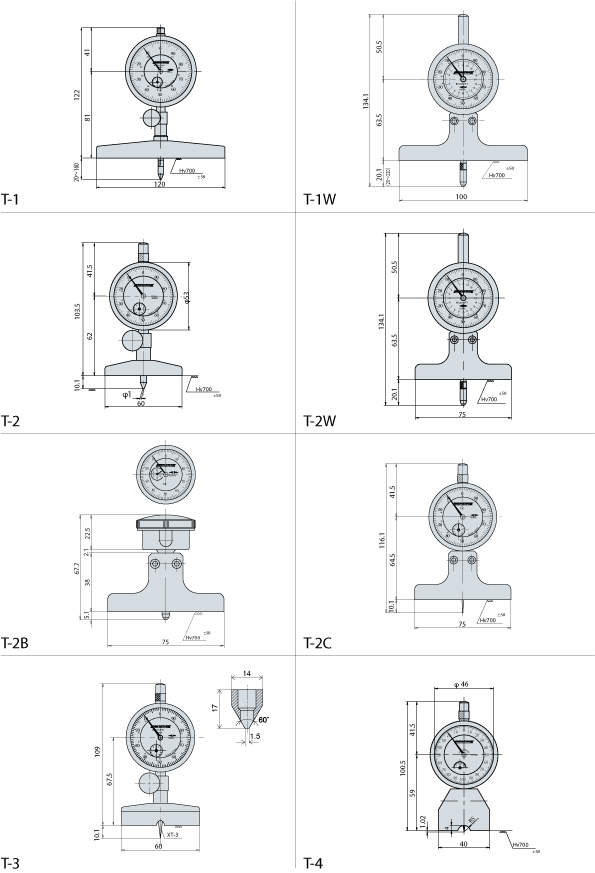

| T-3 | 0～10 | ±15 | 107F-T | 0.01 | 10 | 1.4 | 60 | Shown in above figure |
| T-4 | 0～1 | ±5 | ※5F | 0.001 | 1 | 1.5 | 40 | 10 |
※ 5F with Reversed Inner Dial ※ Base is hardened and polished.
