Dial Depth Gauge (Special) : P Series (0.1mm type) | TECLOCK
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
TEC-DM-P

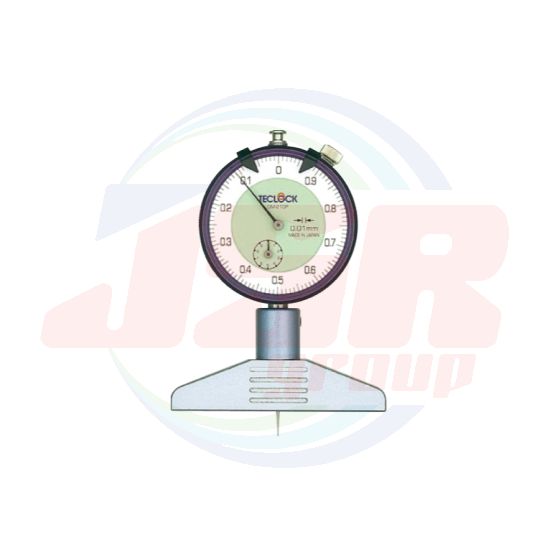

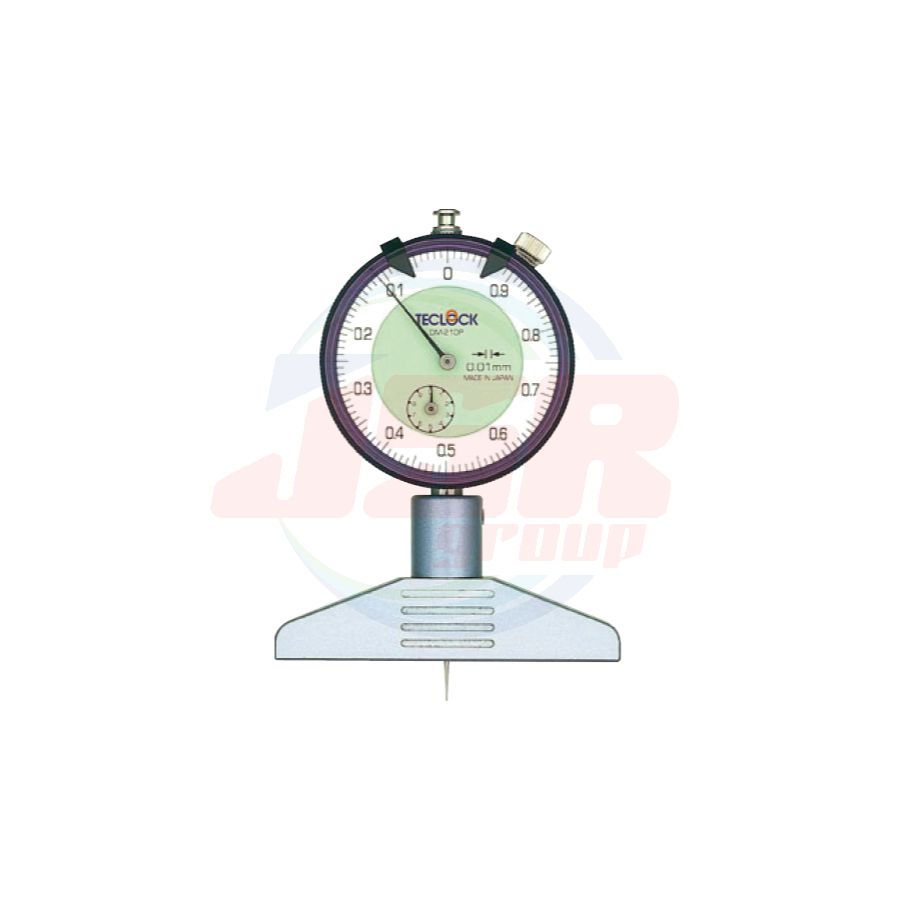

Dial Depth Gauge (Special) - P Series (0.1mm type)
• This is direct reading specification of which graduation are 0.1-0.9mm.
• 1-10mm can be read by short hand and figure below can be read by pointer. It prevents misreading.
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Indication Error (μm) |
Contact Point Form (mm) |
Standard Contact Point | Measuring Force (N) | Weight (g) |
Old Model |
| DM-210P | 0.01 | 10 | ±12 | Needle | ZS-523 | 1.4 or less | 240 | DM-204P |
| DM-250P | 0.01 | 5 | ±10 | Needle | ZS-518 | 1.4 or less | 230 | − |
| DM-223P | 0.01 | 20 | ±15 | φ3.2 Steel Ball | ZS-034 | 2.2 or less | 275 | DM-201DP |
| DM-224P | 0.01 | 20(230) | ±15 | φ3.2 Steel Ball | ZS-034 | 2.5 or less | 340 | DM-202DP |
| แบรนด์สินค้า | TECLOCK |
|---|

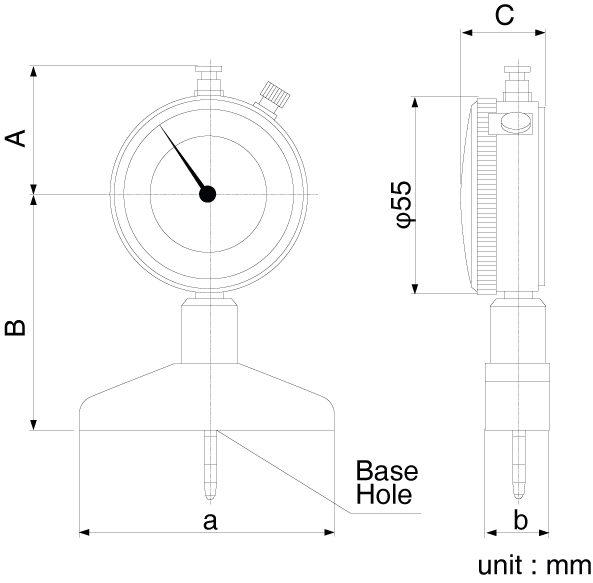

| Order No. | A | B | C | Base Form a×b |
Base Hole Diameter |
| DM-210P | 34.2 | 64.7 | 23.6 | 75x16 | 2.5 |
| DM-250P | 34.2 | 64.9 | 23.6 | 50x16 | 2.0 |
| DM-223P | 35.8 | 64.7 | 25.6 | 75x16 | 5.2 |
| DM-224P | 35.8 | 64.7 | 25.6 | 100x16 | 5.2 |
