• Back plunger type dial indicators are suitable for mounting onto levelling machine tool tables or inspection jigs, and for use in situations where standard dial indicators are difficult to read.
• Models 1960A and 1961A, which use Mitutoyo’s proprietary shock-proofing mechanism, have excellent durability and shock resistance.
SPECIFICATIONS
Metric
| Order No. | Graduation (mm) |
Range (range/rev) (mm) |
Maximum permissible error (MPE) (μm) | Dial reading |
Measuring force (N | |||||
| Indication error | Hysteresis | Repeatability | ||||||||
| 1/10 Rev | 1/2 Rev | 1 Rev | Measuring range | |||||||
| 1960A | 0.01 | 1 (1.27) | 8 | - | - | 14 | 4 | 3 | 50-0-50 | 1.4 or less |
| 1160A | 0.01 | 5 (1) | 8 | 12 | 14 | 16 | 4 | 3 | ±0-100 | 1.4 or less |
| 1162A | 0.01 | 5 (1) | 8 | 12 | 14 | 16 | 4 | 3 | 100-0 | 1.4 or less |
Note 1: Completed products inspection is performed in the vertical orientation (contact point downward) and the stated accuracy is guaranteed.
Note 2: The bezel clamp cannot be used.
 Continuous scale |
 Balanced scale |
|||||
 |
 |
|||||
|
Graduation: 0.01 mm, |

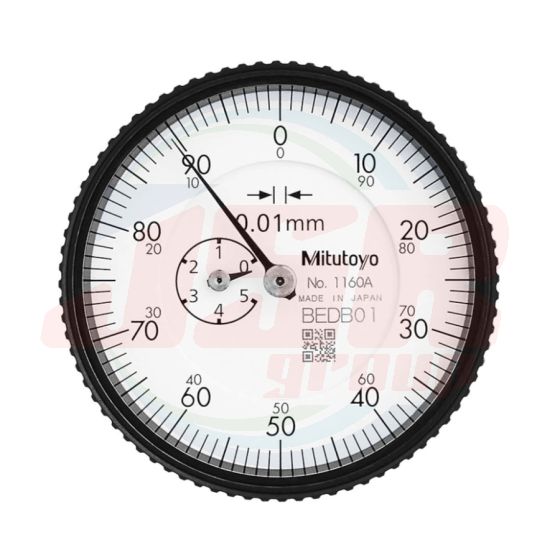

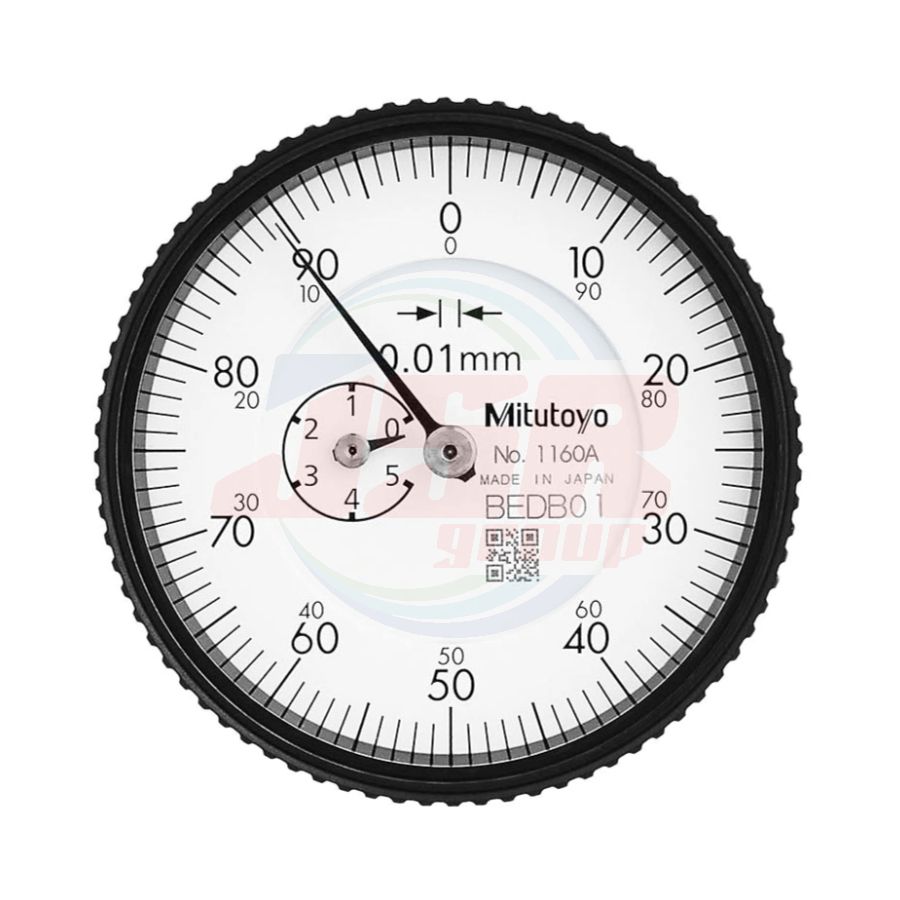

1160A |
Graduation: 0.01 mm, |
2990A-10 |
|||
 |
Back Plunger | |
Back Plunger | |||
| Balanced scale |
||||||
 |
||||||
|
Graduation: 0.01 mm, |
1960A |
|||||
 |
One revolution | |||||
 |
Shockproof | |||||
|
Back Plunger | |||||
FEATURES
Metric
| Order No. | |
|
|
|
 |
|
| 1960A | √ | √ | √ | √ | ||
| 1160A | √ | √ | ||||
| 1162A | √ | √ |
| แบรนด์สินค้า | MITUTOYO |
|---|

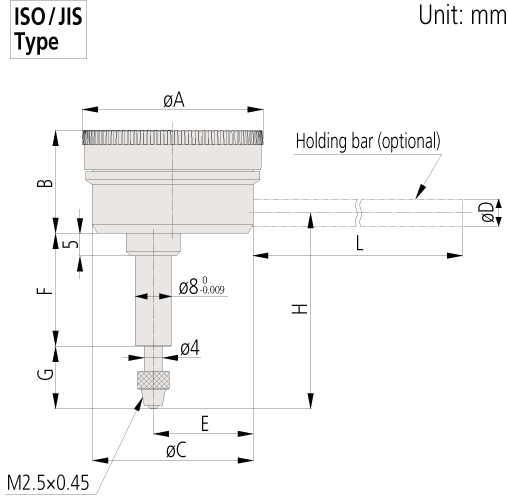

| Order No. | A | B | C | E | F | G | H | Mass (g) (Bar excluded) |
| 1160A | 40 | 22.7 | 35 | 21.8 | 25 | 13.8 | 43.3 | 80 |
| 1162A | 40 | 22.7 | 35 | 21.8 | 25 | 13.8 | 43.3 | 80 |
| 1960A | 40 | 22.7 | 35 | 21.8 | 28.7 | 12.8 | 46 | 80 |
Note 1: Contact point (standard accessory) for all products in this page has a role as a top dead point stopper. When replacing it with
an optional contact point with a connector not exceeding ø7 mm in outside diameter, insert a washer (with ø7 mm outside
diameter, ø3 mm inside diameter, and approximately 0.5 mm thickness) above the contact point.
