Dial Indicators SERIES 1 — Compact One Revolution Type for Error-free Reading | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 2,285.52
พร้อมส่ง
SKU
DG-S1-COMPACT
• The one revolution dial indicator (compact type) prevents the possibility of reading errors.
• Mitutoyo’s unique shock-proof mechanism is incorporated, providing improved resistance to shock due to sudden spindle retraction caused by impact.
• The indicator is highly durable thanks to its oil- and watertight design, quenched hardened stainless-steel, carbide contact point, and a grand gear made of wear- and deformation-resistant material.
• Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.
• The red dead zone in the middle of the dial face is separated from the bezel and doesn't cover the graduations. Therefore, users can always see the range where accuracy is not guaranteed even if the bezel is rotated.
SPECIFICATIONS
Metric
| Order No. | Graduation (mm) |
Range (range/rev) (mm) |
Maximum permissible error (MPE) (μm) | Dial reading |
Measuring force (N | ||||||
| w/ lug | Flat-back | Indication error | Hysteresis | Repeatability | |||||||
| 1/10 Rev | 1/2 Rev | 1 Rev | Measuring range | ||||||||
| 1929A | 1929AB | 0.01 | 1 (1.4) | 7 | - | - | 11 | 4 | 3 | 50-0-50 | 1.4 or less |
| 1929A-62 | 1929AB-62 | 0.01 | 1 (1.4) | 7 | - | - | 11 | 4 | 3 | 50-0-50 | 1.4 or less |
| 1900A-10 | 1900AB-10 | 0.001 | 0.1 (0.14) | 2.5 | - | - | 5 | 2 | 1 | 50-0-50 | 1.5 or less |
| 1900A-72 | 1900AB-72 | 0.001 | 0.1 (0.14) | 2.5 | - | - | 5 | 2 | 1 | 50-0-50 | 1.5 or less |
* For low measuring force type, use in the vertical orientation.
Note: Completed products inspection is performed in the vertical orientation (contact point downward) and the stated accuracy is guaranteed.
 Balanced scale |
Balanced scale |
|||||
 |
 |
|||||
| Graduation: 0.001 mm, |
1900A-10 |
Graduation: 0.01 mm, | 1929A | |||
| Measuring range: 30.1mm |  |
One revolution | Measuring range: 1mm | |
One revolution | |
 |
Shockproof | |
Shockproof | |||
 |
Jeweled bearing | 1929A-62 | ||||
| 1900A-72 | |
One revolution | ||||
|
One revolution | |
Shockproof | |||
|
Shockproof |  |
Dustproof | |||
|
Dustproof | |||||
|
Jeweled bearing | |||||
FEATURES
Metric
| Order No. | |
|
|
|
|
|
| w/lug | Flat-back | |||||
| 1929A | 1929AB | √ | √ | √ | ||
| 1929A-62 | 1929AB-62 | √ | √ | √ | √ | |
| 1900A-10 | 1900AB-10 | √ | √ | √ | √ | |
| 1900A-72 | 1900AB-72 | √ | √ | √ | √ | √ |
| แบรนด์สินค้า | MITUTOYO |
|---|

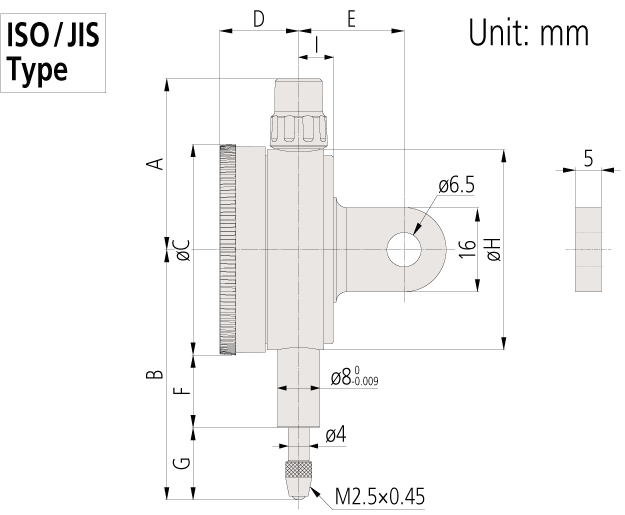

| Order No. | A | B | C | D | E | F | G | H | I | Mass (g) | |
| w/lug | Flat-back | ||||||||||
| 1929A | 32.5 | 47.5 | 40 | 15 | 20 | 13.8 | 13.7 | 38 | 6.6 | 90 | 70 |
| 1929A-62 | 32.5 | 47.5 | 40 | 15 | 20 | 13.8 | 13.7 | 38 | 6.6 | 90 | 70 |
| 1900A-10 | 32.5 | 53.5 | 40 | 15 | 20 | 13.8 | 19.7 | 38 | 6.6 | 95 | 75 |
| 1900A-72 | 32.5 | 53.5 | 40 | 15 | 20 | 13.8 | 19.7 | 38 | 6.6 | 95 | 75 |
