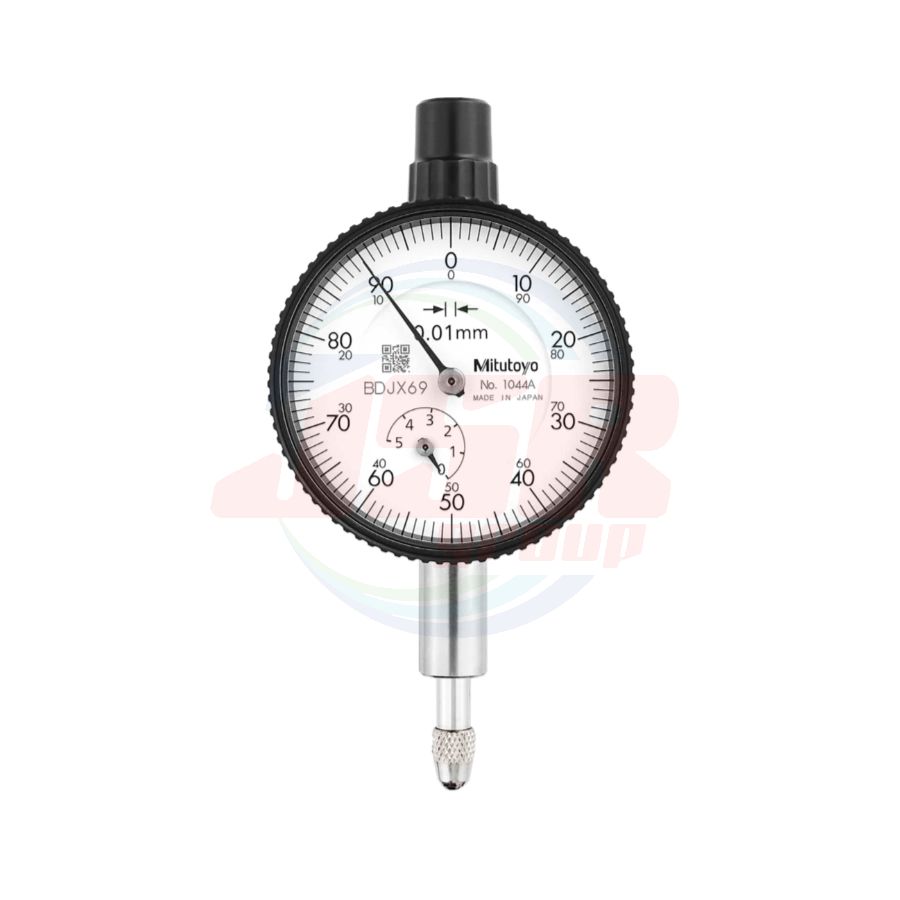

Dial Indicators SERIES 1 — Compact Type, Small Diameter | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 3,887.31
พร้อมส่ง
SKU
DG-S1
• Compact dial indicators ideal for restrictedspace applications in gaging jigs.
• The indicator is highly durable thanks to its oil- and water-tight design, quenched hardened stainless-steel, carbide contact point, and a grand gear made of wear- and deformation-resistant material.
• Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.
SPECIFICATIONS
Metric
| Order No. | Graduation (mm) |
Range (range/rev) (mm) |
Maximum permissible error (MPE) (μm) | Dial reading |
Measuring force (N | ||||||
| w/ lug | Flat-back | Indication error | Hysteresis | Repeatability | |||||||
| 1/10 Rev | 1/2 Rev | 1 Rev | Measuring range | ||||||||
| 1013A-10 | 1013AB-10 | 0.002 | 1 (0.2) | 2.5 | 4 | 5 | 6 | 2.5 | 1 | 0-100-0 | 1.5 or less |
| 1040A | 1040AB | 0.01 | 3.5 (0.5) | 8 | 10 | 11 | 13 | 4 | 3 | ±0-50 | 1.4 or less |
| 1041A | 1041AB | 0.01 | 3.5 (0.5) | 8 | 10 | 11 | 13 | 4 | 3 | 0-25-0 | 1.4 or less |
| 1044A | 1044AB | 0.01 | 5 (1) | 8 | 10 | 11 | 13 | 4 | 3 | ±0-100 | 1.4 or less |
| 1044A-15 | 1044AB-15 | 0.01 | 5 (1) | 8 | 10 | 11 | 13 | 4 | 3 | ±0-100 | 0.4 or less* |
| 1044A-60 | 1044AB-60 | 0.01 | 5 (1) | 8 | 10 | 11 | 13 | 4 | 3 | ±0-100 | 2.0 or less |
| 1045A | 1045AB | 0.01 | 5 (1) | 8 | 10 | 11 | 13 | 4 | 3 | 0-50-0 | 1.4 or less |
| 1109A-10 | 1109AB-10 | 0.001 | 1 (0.2) | 2.5 | 3.5 | 4.5 | 5 | 2 | 1 | 0-100-0 | 1.5 or less |
| 1124A | 1124AB | 0.005 | 3.5 (0.5) | 6 | 9 | 10 | 12 | 3.5 | 3 | ±0-50 | 1.4 or less |
* For low measuring force type, use in the vertical orientation.
Note: Completed products inspection is performed in the vertical orientation (contact point downward) and the stated accuracy is guaranteed.
 Continuous scale |
 Balanced scale |
|||||
 |
 |
|||||
| Graduation: 0.01 mm, |
1040A |
Graduation: 0.01 mm, | 1041A | |||
| Measuring range: 3.5mm |  |
Double scale spacing |
Measuring range: 3.5mm |  |
Double scale spacing |
|
| Continuous scale |
Balanced scale |
|||||
 |
 |
|||||
|
Graduation: 0.01 mm, Measuring range: 5mm |
1044A |
Graduation: 0.01 mm, Measuring range: 5mm |
1045A | |||
|
Jeweled bearing | |||||
| Balanced scale |
Balanced scale |
|||||
 |
 |
|||||
| Graduation: 0.001 mm, |
1109A-10 |
Graduation: 0.002 mm, | 1013A-10 | |||
| Measuring range: 1mm |  |
Shockproof | Measuring range: 1mm | |
Shockproof | |
|
Jeweled bearing | |
Jeweled bearing | |||
| Continuous scale |
Continuous scale |
|||||
 |
 |
|||||
| Graduation: 0.005 mm, |
1124A |
Graduation: 0.01 mm, | 1044A-60 | |||
| Measuring range: 3.5mm | Measuring range: 5mm |  |
Waterproof | |||
FEATURES
Metric
| Order No. | |
|
|
|
|
|
|
| w/lug | Flat-back | ||||||
| 1013A-10 | 1013AB-10 | √ | √ | √ | |||
| 1040A | 1040AB | √ | √ | ||||
| 1041A | 1041AB | √ | √ | ||||
| 1044A | 1044AB | √ | |||||
| 1044A-15 | 1044AB-15 | √ | √ | ||||
| 1044A-60 | 1044AB-60 | √ | √ | ||||
| 1045A | 1045AB | √ | |||||
| 1109A-10 | 1109AB-10 | √ | √ | √ | |||
| 1124A | 1124AB | √ | |||||
| แบรนด์สินค้า | MITUTOYO |
|---|
| Order No. | A | B | C | D | E | F | G | H | I |
| 1013A-10 | 32.5 | 49 | 40 | 15 | 20 | 13.8 | 15.2 | 38 | 6.6 |
| 1040A | 32.5 | 46 | 40 | 15 | 20 | 13.8 | 12.2 | 38 | 6.6 |
| 1041A | 32.5 | 46 | 40 | 15 | 20 | 13.8 | 12.2 | 38 | 6.6 |
| 1044A | 32.5 | 47.5 | 40 | 15 | 20 | 13.8 | 13.7 | 38 | 6.6 |
| 1044A-15 | 32.5 | 47.5 | 40 | 15 | 20 | 13.8 | 13.7 | 38 | 6.6 |
| 1044A-60 | 32.5 | 57 | 40 | 15 | 20 | 13.8 | 24.8 | 38 | 6.6 |
| 1045A | 32.5 | 47.5 | 40 | 15 | 20 | 13.8 | 13.7 | 38 | 6.6 |
| 1109A-10 | 32.5 | 49 | 40 | 15 | 20 | 13.8 | 15.2 | 38 | 6.6 |
| 1124A | 32.5 | 46 | 40 | 15 | 20 | 13.8 | 12.2 | 38 | 6.6 |
