Dial Indicators SERIES 2 — Standard Type, 0.001 mm & 0.005 mm Graduation | MITUTOYO

MITUTOYO
เป็นคนแรกที่รีวิวสินค้านี้
ราคาต่ำสุด THB 0.00 THB 0.00 ราคาปรกติ THB 1,975.22
พร้อมส่ง
SKU
DG0.001-0.005
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ

• Standard 0.001 mm and 0.005 mm graduation dial indicators have a bezel with an outside diameter of 57 mm. These indicators provide excellent accuracy and durability.

• The indicator is highly durable thanks to its oil- and water-tight design, quenched hardened stainless-steel, carbide contact point, and a grand gear made of wear- and deformation-resistant material.

• Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.

• The indicator uses jeweled bearings, providing excellent indication sensitivity and durability.

Dial Indicators SERIES 2 — Standard Type, 0.001 mm & 0.005 mm Graduation | MITUTOYO
Dial Indicators SERIES 2 — Standard Type, 0.001 mm & 0.005 mm Graduation | MITUTOYO

SPECIFICATIONS

Metric

Order No. Graduation
(mm)		 Range
(range/rev)
(mm)		 Maximum permissible error (MPE) (μm) Dial
reading		 Measuring force (N
w/ lug Flat-back Indication error Hysteresis Repeatability
1/10 Rev 1/2 Rev 1 Rev Measuring range
2109A-10 2109AB-10 0.001 1 (0.2) 2 3 4 5 2 0.5 0-100-0 1.5 or less
2110A-10 2110AB-10 0.001 1 (0.1) 2 3 4 5 2 0.5 ±0-100 1.8 or less
2113A-10 2113AB-10 0.001 2 (0.2) 2 4 5 7 2 0.5 0-100-0 1.5 or less
2118A-10 2118AB-10 0.001 5 (0.2) 3.5 5 6 10 3 1 0-100-100 1.5 or less
2119A-10 2119AB-10 0.001 5 (0.2) 3.5 5 6 10 3 1 0-100-0 1.5 or less
2124A-10 2124AB-10 0.005 5 (0.5) 5 8 9 12 3 3 ±0-50 1.5 or less

Note: Completed products inspection is performed in the vertical orientation (contact point downward) and the stated accuracy is guaranteed.



Balanced scale       Continuous scale

Graduation: 0.001 mm,

2109A-10

   Graduation: 0.001 mm, 2110A-10
Measuring range: 1 mm Shockproof   Measuring range: 1 mm Double scale
spacing
  Jeweled bearing     Shockproof
          Jeweled bearing

Balanced scale   Continuous scale

Graduation: 0.001 mm, 2113A-10   Graduation: 0.001 mm, 2118A-10
Measuring range: 2 mm Shockproof   Measuring range: 5 mm Jeweled bearing
  Jeweled bearing


Balanced scale
Continuous scale

Graduation: 0.001 mm, 2119A-10   Graduation: 0.005 mm, 2124A-10
Measuring range: 5 mm Jeweled bearing   Measuring range: 5mm Jeweled bearing







FEATURES

Metric

Order No.
w/lug Flat-back
2109A-10 2109AB-10   √ √   √
2110A-10 2110AB-10 √   √   √ √
2113A-10 2113AB-10   √ √   √
2118A-10 2118AB-10 √       √
2119A-10 2119AB-10   √     √
2124A-10 2124AB-10 √       √
More Information
ข้อมูลเพิ่มเติม
แบรนด์สินค้า MITUTOYO

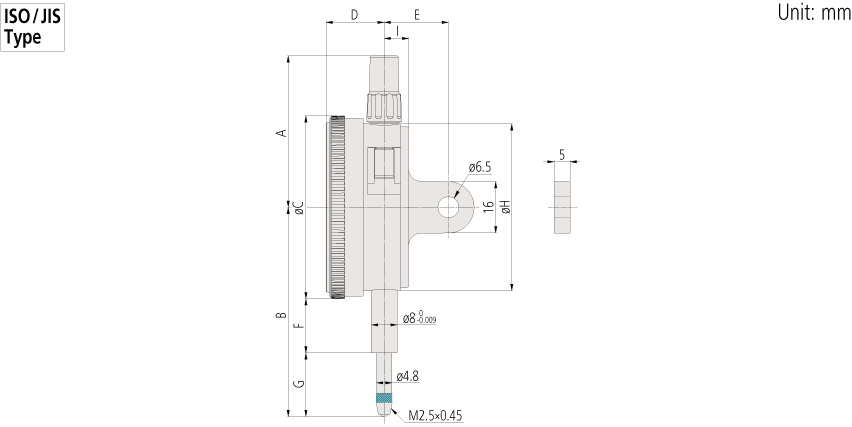

Dimension



Order No. A B C D E F G H I Mass (g)
w/lug Flat-back
2109A-10 47.2 60.5 57 18.1 20 16.9 15.1 52 7.6 148 139
2110A-10 47.2 66.5 57 18.1 20 16.9 21.1 52 7.6 149 140
2113A-10 47.2 61 57 18.1 20 16.9 15.6 52 7.6 148 139
2118A-10 47.2 60.7 57 18.1 20 16.9 15.3 52 7.6 146 137
2119A-10 47.2 60.7 57 18.1 20 16.9 15.3 52 7.6 146 137
2124A-10 47.2 60.7 57 18.1 20 16.9 15.3 52 7.6 146 137
