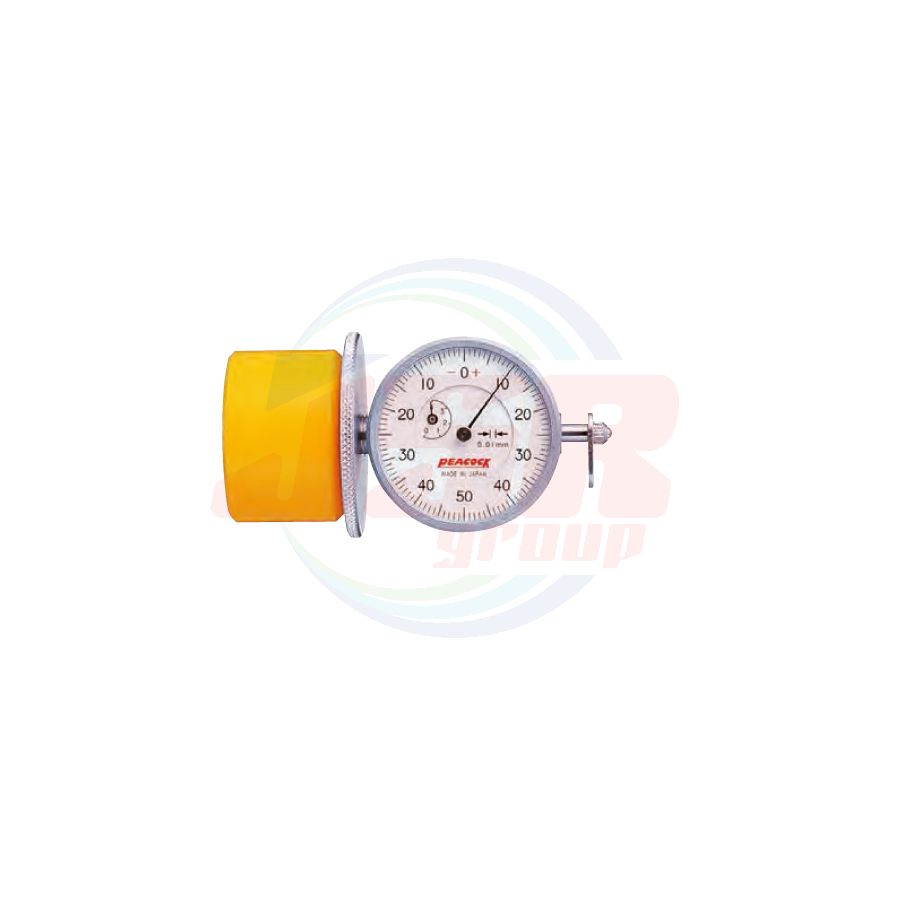

Dial Inside Gauge
● Capable of continuously measuring comparatively large bores or inside wall Outer dimension surface with a given measuring force using flexibility of the dial gauge.
| Order No. | Graduation (mm) | Range (mm) |
Reading | Magnetic Power (kg) |
Measuring force less than (N) |
|||||
| 1／10 revolution (Adjacent error) |
1／2 revolution | 1 revolution | 2 revolutions | Whole measuring range |
||||||
| U-1 | 0.01 | 50～350 | 0 - 50 - 0 | 9 | - | ±13 | - | ±20 | - | 2.0 |
| U2HA | 0.01 | 66～80 | 0 - 50 - 0 | 9 | - | ±13 | - | ±15 | 8～10kg | 1.4 |
| U2HB | 0.01 | 80～92 | 0 - 50 - 0 | 9 | - | ±13 | - | ±15 | 1.4 | |
| U2FA | 0.01 | 92～110 | 0 - 50 - 0 | 9 | - | ±13 | - | ±20 | 2.0 | |
| U2FB | 0.01 | 110～120 | 0 - 50 - 0 | 9 | - | ±13 | - | ±20 | 2.0 | |
| U3HA | 0.01 | 66～80 | 0 - 50 - 0 | 9 | - | ±13 | - | ±20 | 1.4 | |
| U3HB | 0.01 | 80～92 | 0 - 50 - 0 | 9 | - | ±13 | - | ±20 | 1.4 | |
| แบรนด์สินค้า | PEACOCK |
|---|
