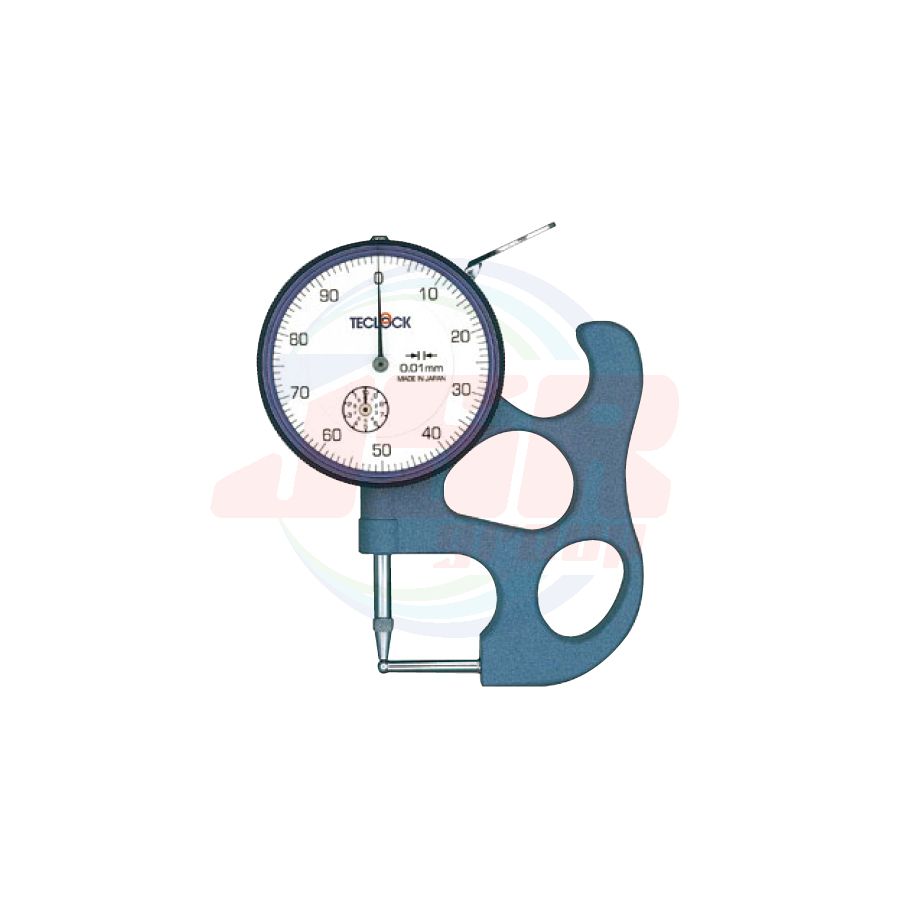

Dial Pipe Gauge
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Indication Error(μm) | Parallelism (μm) |
Dial Reading |
Measuring Force(N) |
Contact Point Form (mm) |
Anvil Form (mm) |
Weight (g) |
| TPM-116 | 0.01 | 10 | ±15 | - | 0-50-100 | 2.3 or less | φ2.5 Flat | φ3.5 Ball | 145 |
| TPM-617 | 0.01 | 10 | ±15 | - | 0-50-100 | 1.5 or less | φ1.6 Ball | φ0.5,1.0,2.0 replaceable | 190 |
| TPM-618 | 0.01 | 10 | ±15 | - | 0-50-100 | 1.5 or less | φ1.6 Ball | φ5.0 (φ7.0,10.0) replaceable* | 195 |
*Anvils of φ7 and φ10.0 are optional.
| แบรนด์สินค้า | TECLOCK |
|---|
The special order if the following hole diameter φ3.5mm.
Relation between Anvil diameter and Work inserting depth
unit : mm
| Anvil dia. | Depth | Anvil dia. | Depth | |
| φ0.5 | 2 | φ5.0 | 8 | |
| φ1.0 | 3 | φ7.0 | 8 | |
| φ2.0 | 3 | φ10.0 | 8 |
