Dial Snap Gage SERIES 201 | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 10,069.77
พร้อมส่ง
SKU
DSG
• Designed for quick Go/±No-go judgment of diameters of cylinders and shafts in machining processes.
• Enables single-handed comparative measurements of a cylinder diameter, etc. while workpiece processing is taking place.
• The dial indicator and protection cover are optional.
• Some digimatic /dial indicators cannot be used with the dial snap gage. Consult Mitutoyo before using dial indicators which are not recommended.
• Measuring faces: Carbide.

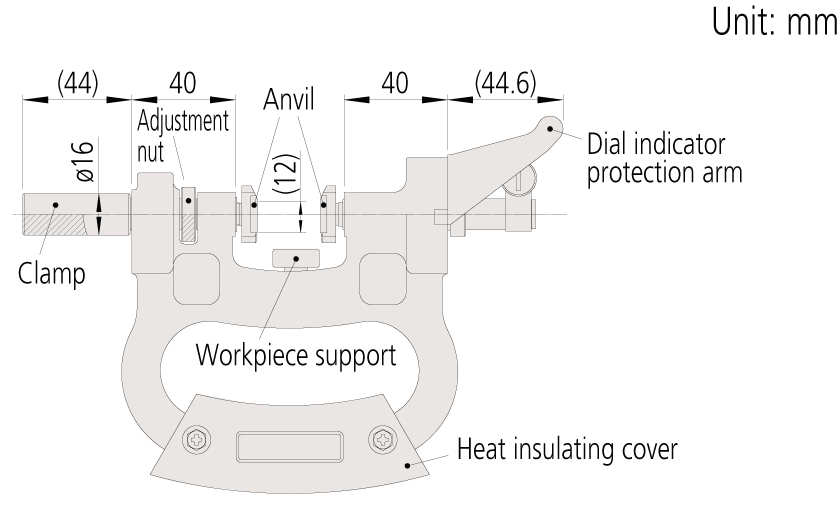

• Anvil positioning range: 25 mm/1 in. Adjustment nut: adjusts the setting anvil to the nominal size required within the measuring range.
• Clamp: clamps the setting anvil at the required position.
Metric
| Order No. | Range (mm) | Parallelism (µm) | Measuring force* (N) |
| 201-101 | 0 - 25 | 5 | 15±3 |
| 201-102 | 25 - 50 | ||
| 201-103 | 50 - 75 | ||
| 201-104 | 75 - 100 | ||
| 201-105 | 100 - 125 | ||
| 201-106 | 125 - 150 | ||
| 201-107 | 150 - 175 | ||
| 201-108 | 175 - 200 | ||
| 201-109 | 200 - 225 | ||
| 201-110 | 225 - 250 | ||
| 201-111 | 250 - 275 | ||
| 201-112 | 275 - 300 |
* Measuring force is that force present before an indicator is installed and is determined at the point where the spindle is retracted 1 mm from the rest position.
| แบรนด์สินค้า | MITUTOYO |
|---|
