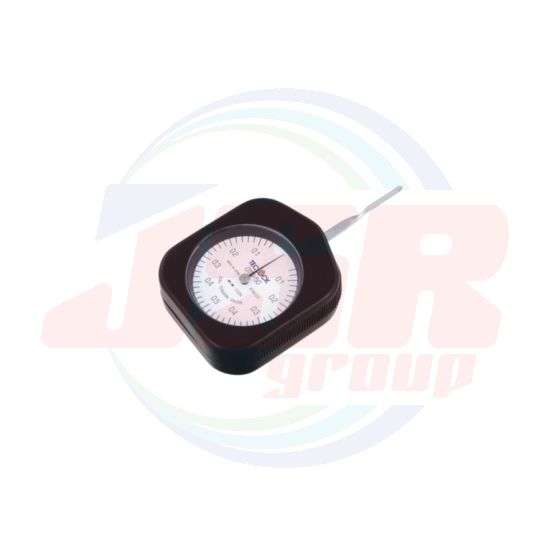

Dial Tension Gauge
• These are mechanical tension gauges displaying in Newton, which can measure precise and moment force like tensile force or compression force.
• Miniature bearing is adopted to contact point bearing. and it can obtain stable indication accuracy.
• It can be used for the wide range of usage for contact force such as micro-switch, relay, valve, and measuring force of dial indicator, and spring force of precise spring, and pressing force of key-board.
• There are 2 types of standard type which sustains momentary highest value, and peak pointer type .
Specifications
| Type | Order No. | Graduation | Measuring Range | Dial Reading | Weight (g) |
| Standard Type |
DTN-5 | 2mN(0.2gf) | 6mN(0.6gf)-50mN(5gf) | 6-50-6 | 55 |
| DTN-10 | 5mN(0.5gf) | 10mN(1gf)-100mN(10gf) | 10-100-10 | 55 | |
| DTN-30 | 10mN(1gf) | 30mN(3gf)-300mN(30gf) | 30-300-30 | 55 | |
| DTN-50 | 0.02N(2gf) | 0.06N(6gf)-0.5N(50gf) | 0.06-0.5-0.06 | 55 | |
| DTN-100 | 0.05N(5gf) | 0.1N(10gf)-1N(100gf) | 0.1-1-0.1 | 55 | |
| DTN-150 | 0.05N(5gf) | 0.15N(15gf)-1.5N(150gf) | 0.15-1.5-0.15 | 55 | |
| DTN-300 | 0.1N(10gf) | 0.3N(30gf)-3N(300gf) | 0.3-3-0.3 | 55 | |
| DTN-500 | 0.2N(20gf) | 0.6N(60gf)-5N(500gf) | 0.6-5-0.6 | 55 |
| Type | Order No. | Graduation | Measuring Range | Dial Reading | Weight (g) |
| Peak Pointer |
DTN-10G | 5mN(0.5gf) | 10mN(1gf)-100mN(10gf) | 10-100-10 | 58 |
| DTN-30G | 10mN(1gf) | 30mN(3gf)-300mN(30gf) | 30-300-30 | 58 | |
| DTN-50G | 0.02N(2gf) | 0.06N(6gf)-0.5N(50gf) | 0.06-0.5-0.06 | 58 | |
| DTN-100G | 0.05N(5gf) | 0.1N(10gf)-1N(100gf) | 0.1-1-0.1 | 58 | |
| DTN-150G | 0.05N(5gf) | 0.15N(15gf)v1.5N(150gf) | 0.15-1.5-0.15 | 58 | |
| DTN-300G | 0.1N(10gf) | 0.3N(30gf)-3N(300gf) | 0.3-3-0.3 | 58 | |
| DTN-500G | 0.2N(20gf) | 0.6N(60gf)-5N(500gf) | 0.6-5-0.6 | 58 |
* Indication Error ±0.5 graduation, Hysteresis ±0.2 graduation. * ( )value is approximate reference one.
