Dial Test Indicator SERIES 513 — Standard (20° Tilted Face), Vertical, and Horizontal Types | MITUTOYO

MITUTOYO
เป็นคนแรกที่รีวิวสินค้านี้
ราคาต่ำสุด THB 0.00 THB 0.00 ราคาปรกติ THB 4,097.03
พร้อมส่ง
SKU
TI-X-2
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ

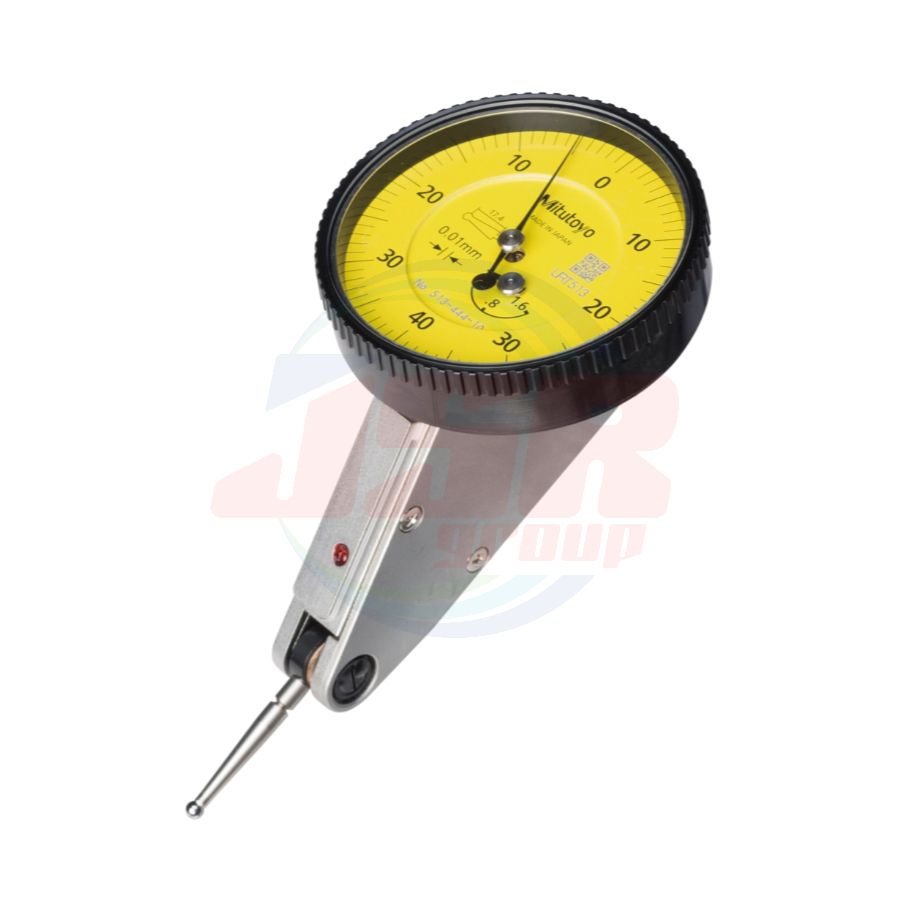

Dial Test Indicator SERIES 513 — Standard (20° Tilted Face), Vertical, and Horizontal Types | MITUTOYO
Dial Test Indicator SERIES 513 — Standard (20° Tilted Face), Vertical, and Horizontal Types | MITUTOYO





  Carbide contact point
  Graduation: 0.01 mm
Range: 0.8 mm



With revolution counter

Carbide contact point
  Graduation: 0.01mm
Range: 1.6mm



With revolution counter

Carbide contact point
  Graduation: 0.002 mm
Range: 0.4 mm

  Carbide contact point
  Graduation: 0.01 mm
Range: 0.8 mm

  Carbide contact point
  Graduation: 0.002 mm
Range: 0.2 mm



Note: 513-4XX-10 is indicated on the dial face and the inspection certificate.

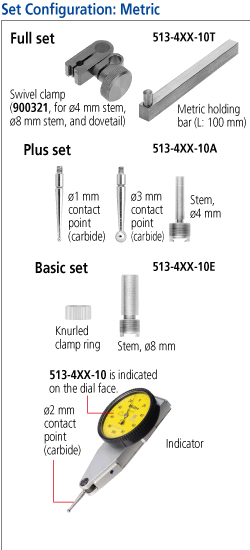

The code No. with suffix (E /A/ T) is a set item which includes accessories. The main unit is not available as a standalone item.





More Information
ข้อมูลเพิ่มเติม
แบรนด์สินค้า MITUTOYO
High accuracy No
With revolution counter No
Long contact point No
Standard No
Double scale spacing No
Compact No
Dustproof No
Carbide contact point No
Ruby contact point No
SPECIFICATIONS

Metric _______ Standard (20° tilted face) type

Order No. Graduation (mm) Range (mm) Dial reading Maximum permissible error (MPE)*1 (μm) Mass (g) Measuring force (N) With revolution counter Long contact point Carbide contact point
Basic set Plus set Full set Measuring range One rev. 10 scale divisions Hysteresis Repeatability

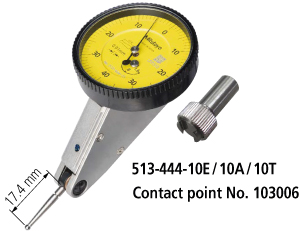

513-444-10E 513-444-10A 513-444-10T 0.01 1.6 0-40-0 16 10 5 5 3 48 0.3 or less √   √

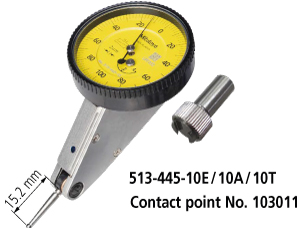

513-445-10E 513-445-10A 513-445-10T 0.002 0.4 0-100-0 6 5 2 4 1 √   √



Metric _______ Vertical type

Order No. Graduation (mm) Range (mm) Dial reading Maximum permissible error (MPE)*1 (μm) Mass (g) Measuring force (N) With revolution counter Long contact point Carbide contact point
Basic set Plus set Full set Measuring range One rev. 10 scale divisions Hysteresis Repeatability
513-456-10E — — 0.01 0.5 0-25-0 6 — 5 4 3 46 0.3 or less     √

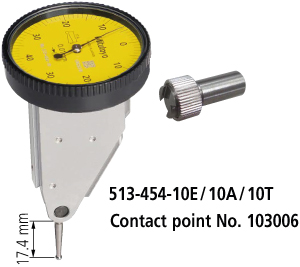

513-454-10E 513-454-10A 513-454-10T 0.8 0-40-0 9 —     √
513-455-10E 513-455-10A 513-455-10T 0.002 0.2 0-100-0 4 — 2 3 1     √



Metric _______ Horizontal type

Order No. Graduation (mm) Range (mm) Dial reading Maximum permissible error (MPE)*1 (μm) Mass (g) Measuring force (N) With revolution counter Long contact point Carbide contact point
Basic set Plus set Full set Measuring range One rev. 10 scale divisions Hysteresis Repeatability
513-486-10E — — 0.01 0.5 0-25-0 6 - 5 4 3 53 0.3 or less     √

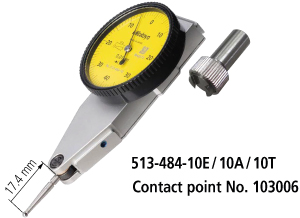

513-484-10E 513-484-10A 513-484-10T 0.8 0-40-0 9 -     √

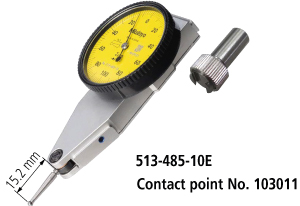

513-485-10E — — 0.002 0.2 0-100-0 4 - 2 3 1     √



* Standard (20° Tilted Face) Type, Vertical Type: We guarantee the accuracy of completed products by inspecting them with the dial face facing upward.
Horizontal Type: We guarantee the accuracy of completed products by inspecting them with the dial face vertical.

Note: 513-4XX-1X is indicated on the dial face and the inspection certificate.
The code No. with suffix (E /A/ T) is a set item which includes accessories. The main unit is not available as a standalone item.

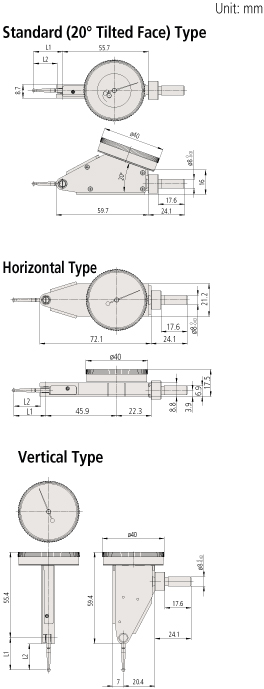

Dimension



Standard (20° Tilted Face) Type

Order No. L1 L2
513-445-10E 18.7 15.2
513-444-10E 20.9 17.4





Horizontal Type

Order No. L1 L2
513-484-10E 20.9 17.4
513-485-10E 18.7 15.2
513-486-10E 22.2 18.7





Vertical Type

Order No. L1 L2
513-454-10E 20.9 17.4
513-455-10E 18.7 15.2
513-456-10E 22.2 18.7



Note: A slight difference may occur depending on the center of the contact point, graduation plate, and stem fixing position, etc.
